Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting
Specifications
Brand Name :
LEYOND
Model Number :
LY-ST20150-XX
Certification :
CE RoHS
Place of Origin :
Shenzhen, China
MOQ :
2
Price :
40-50USD/pcs
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
7-10 work days
Packaging Details :
Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Item :
LED street light 150w
LED source :
3030
Watt :
150w
Luminous :
19500lm
Driver :
Meanwell Driver
Beam angle :
150*70 degree
CCT :
WW/NW/PW
Lifetime :
>50000 hours
Control :
Daylight control, motion sensor
IP Rated :
IP66
Description

External 150w Led Street Lighting With Bat Wing Beam Angle , Roadway Led Lighting

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting

• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%,power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature,which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the

death rate of the leds.

Our Advantages:
1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopt famous Lumileds 3030 chip inside, high efficiency can up to 120 lm/w.
3. Die-casting housings, streamline heat sink with good heat dissipation

4. 60w led street light is an affordable lamp, use Meanwell HLG driver and offer 5 years warranty. Price is more competative than others on the market.
5.Short lead time, sample is 5-7 days; Bulk order is 15-20 days based on quantity. To be your firm supporter.

6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.

7. 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the

death rate of the leds.
8. Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting

Part No.

 LY-ST20030-XX LY-ST20040-XX LY-ST20050-XX LY-ST20060-XX

Power

 30W 40W 50W 60W

Input Voltage

 AC100-240V AC100-240V AC100-240V AC100-240V

Lumens Efficiency

 120lm/w 120lm/w 120lm/w 120lm/w

Beam Angle

 150*70d 150*70d 150*70d 150*70d

CCT

 2700-6500K 2700-6500K 2700-6500K 2700-6500K

Dimension

 410*200*90mm 410*200*90mm 410*200*90mm 410*200*90mm

IP Grade

 IP65 IP65 IP65 IP65

Pole Diameter

 φ50 mm φ50 mm φ50 mm φ50 mm

Net Weight

 2.8 KG 2.8 KG 2.8 KG 2.8 KG

Dimming and sensor

 Available Available Available Available

Install Height

 3-8 M 3-8 M 3-8 M 3-8 M

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting

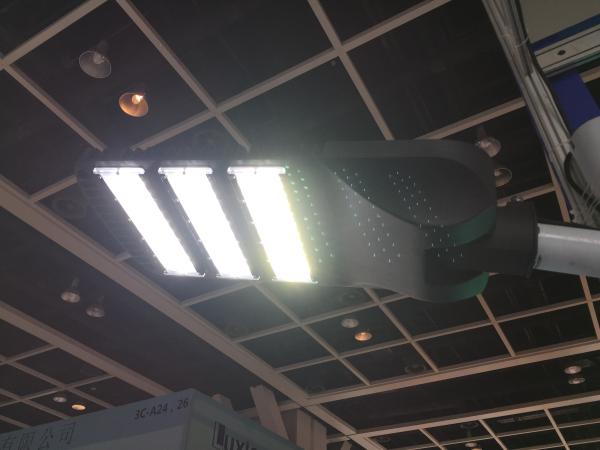

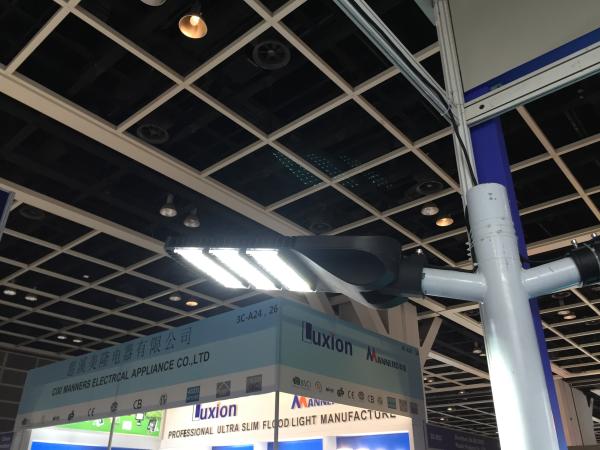

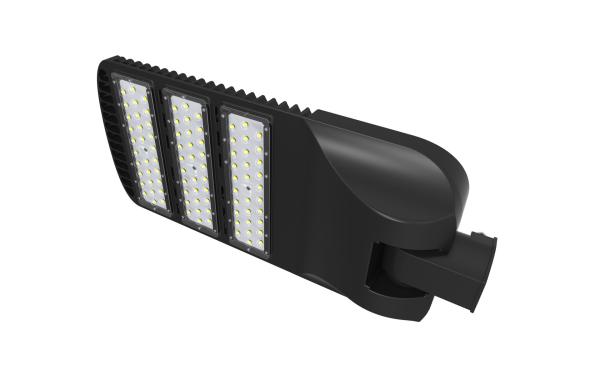

Product Pictures

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led LightingSupper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led LightingSupper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting

Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height

For More Information, Pls Feel Free To Contact Us

Supper Brightness 150w Led Street Lighting With Bat Wing Beam Angle Roadway Led Lighting


FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
