Specifications
Brand Name :
LEDYOND
Model Number :
LY-ST23150XX
Certification :
CE ROHS
Place of Origin :
Shenzhen, China
MOQ :
5Pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Pcs/Month
Delivery Time :
7-10 Working days
Packaging Details :
Standard Export Carton
Material :
Aluminum and PC
Power :
150W
Input Voltage :
85-265V AC
Chip :
Bridgelux Chip
Driver :
Meanwell CLG-150 Driver
IP Rate :
IP65
Lifespan :
50000 Hours
Warranty :
5 Years
Item :
110V 220V 305V 50/60 Hz 200w Led Highbay
Hosing Color :
White and Black
Description

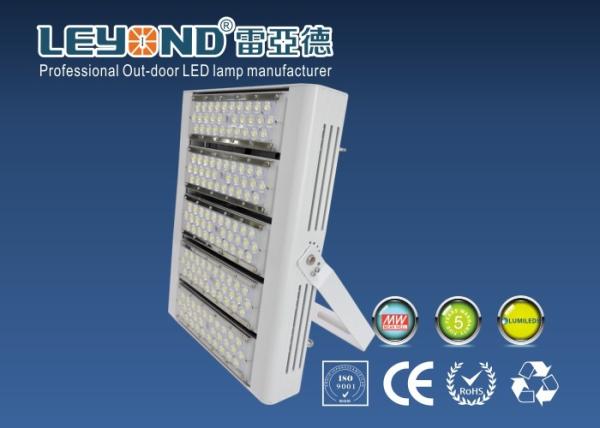

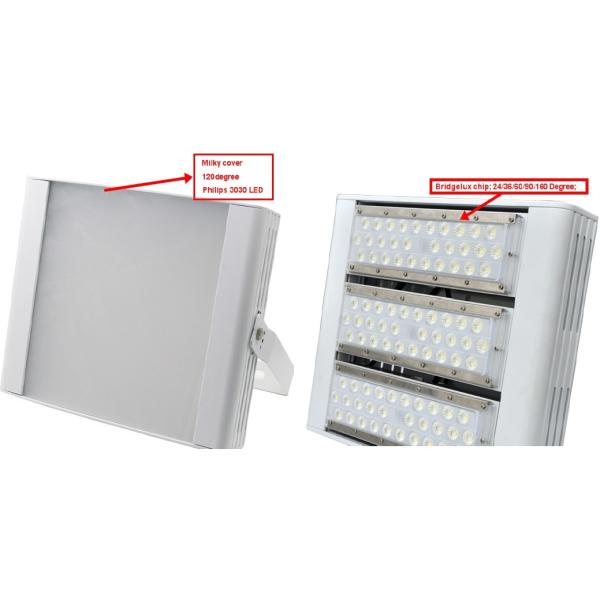

110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Bridgelux Chip

Product Features:

● Bridgelux/ chips inside,High light output 150Lm/W

● Taiwan Meanwell Driver, 5 years warranty, IP65, PF>0.95

● The thermal module and the fins air duct a 3D inter-cool system

● Ultra-high asymmetric PC lens, 4 types beam angle optional

● Over Current,Over Voltage,Over Heat,Thunder Protection

110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED

Model:

LY-ST23150-XX

LED:

Bridgelux chip

Leds number:

90 pcs

Color temperature:

2700-3200K (WW)

4000-4500K(NW)

5500-6000K(PW)

Power Factor:

>0.95

Color rendering index (CRI):

>70

Total Lumens:

16500-17500lm

Light efficiency:

>120 lm/w

Lamp Beam Angle

LED Floodlight/High Bay--24º, 36º, 60º, 90º

LED Tunnel Light--145*90º

LED High Mast Light--160º

Power Consumption:

150w

IP protection:

IP65

Casing Material:

Aluminum

Input Voltage:

85-265V AC / 50-60 Hz

Lamp Size:

316*320*130mm

Lift Time:

>50,000H

Power Supply:

Meanwell CLG-150

Weight:

5.8 kg.

Application area:


● Replacing traditional High Pressure Sodium Lamp or Metal Halide Lamp.


● Widely used for farms, warehouse, factory lighting.

110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED

Aging test:

100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.

Company Information:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrates and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, LED Streetlight,LED Hight Bay light and LED Billboard Light etc. Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.

FAQ:

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.

110V 220V 305V 50/60 Hz 200w Led High bay Light CRI 80 With Luxeon 5050 high power LED
