Specifications
Brand Name :
Leyond
Model Number :
LED Lighting
Certification :
CE ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Price :
USD50-USD450
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000pcs per unit
Delivery Time :
2-5 days for samples, 7-20 days for bulk orders
Packaging Details :
color box packing inside, 20pcs per carton, strong outer carton for export shipping
LED Brand :
Bridgelux Chips
Driver Brand :
Meanwell/ Driver
Warranty Guaranteed :
5 Years Warranty
Beam :
10°/24°/38°/60°/90°/160°
Luminous: :
>130lm/w
CCT :
2700K-6500K
Housing color :
Black or White
Power Factor :
>0.93
Powers :
500W
Materials of Light :
Aluminum + PC
Description



CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood Light For Outdoor Lighting

Specification:

Par NO/Parameter LY-ST23500PW
Inptut voltage AC85V~265V 50/60HZ
Sysem consumption(W) 500W
Luminous flux(lm) 59500-60000
LED quantity(pcs) 300pcs
Beam Angle 10°/24°/38°/60°/90°/160degree
CRI(RI) >75
Color Temperature(CREE) 2700k-6000k
Meterial Aluminum+PMMA
Driver Brand Meanwell / driver
Luminous efficiency >160lm/w
Lifespan(hrs) More than 50000hours
IP Rating IP66
Size(mm) 410*640*166mm

Net Weigh(kg)

21.7
Package Quantity(Pcs) 1
Packing(MM) 725mm×575mm×170mm
Gross Weigh(kg) 23.8

Features:

1.Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the
brightness and illumination uniformity.

3 There are 24°, 36°,60°, 90° beam angle options for the Lens.

4 Scientifically-designed heat dissipater with much better cooling effect.

5.High luminous efficiency, Whole lamp output light effiency >160LM/W.

6.High quality power supply, input voltage 100-240V. The power efficiency is more than 90%,
power factor greater than 0.98, UL compulsory certification.

7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation
±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current,
Over Voltage, Over Heat, Thunder Protection.

8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No
filament and glass frames, avoid break of the traditional lamp,without harm to the human
body.

9.The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions,
eliminated the low color temperature of the sodium lamp which cause the depressed mood,
observers will feel more comfortable.

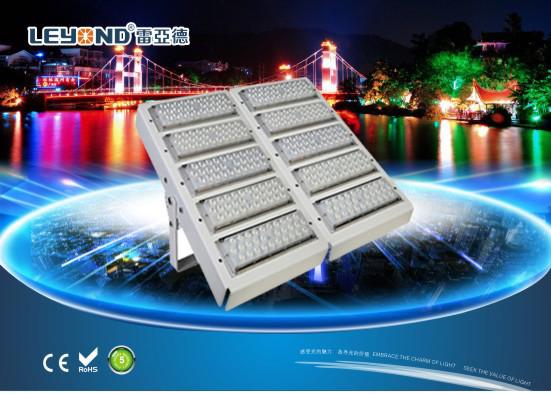

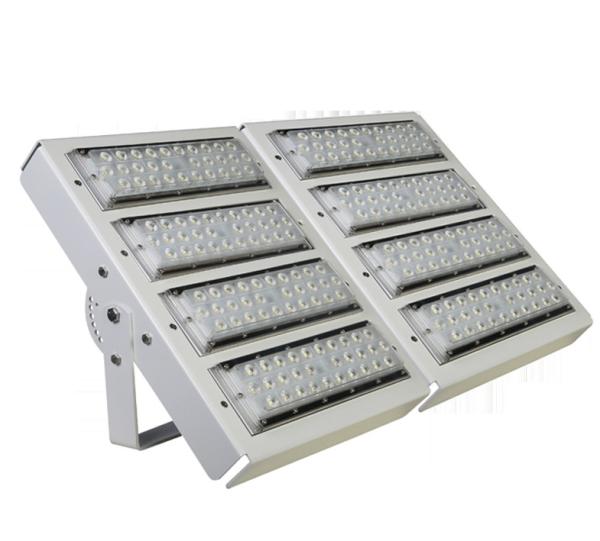

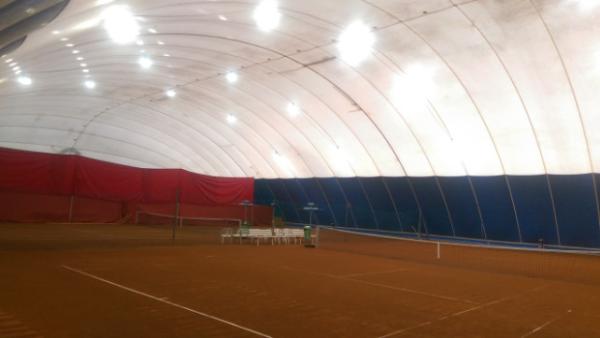

Product Photos:

Football Ground Or Big Stadium Lighting CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood LightFootball Ground Or Big Stadium Lighting CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood LightFootball Ground Or Big Stadium Lighting CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood LightFootball Ground Or Big Stadium Lighting CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood LightFootball Ground Or Big Stadium Lighting CE, ROHS Approved 160LM/W High Lumens 500W Big Power Modular LED Flood Light

Applications:

- Replacement of traditional halogen bulb.
- lllumination and decoration at home and publix areas.
- Suitable for hotel,meeting room,show room,shop,telephone booth, etc


Package:

1.Carton Size: 725mm×575mm×170mm
2.Net weight:21.5KG Gross weight:23.8KG

Quality Warranty:

•Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
