Specifications
Brand Name :
LEYOND
Model Number :
LY-ST20150-XX
Certification :
CE RoHS
Place of Origin :
Guangdong, China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
5-7 days for samples
Packaging Details :
Standard Export Packing
Power :
150W
LED Chip :
Lumileds
LED Driver :
Meanwell HLG-150
IP Rating :
IP65
CCT :
2700-6500K
Material :
Die-casting Aluminum+PC
Warranty :
5 Years
Beam angle :
150X70degree
Package :
720*370*220 (2PCS/CTN)
GW :
9.6kg
Description

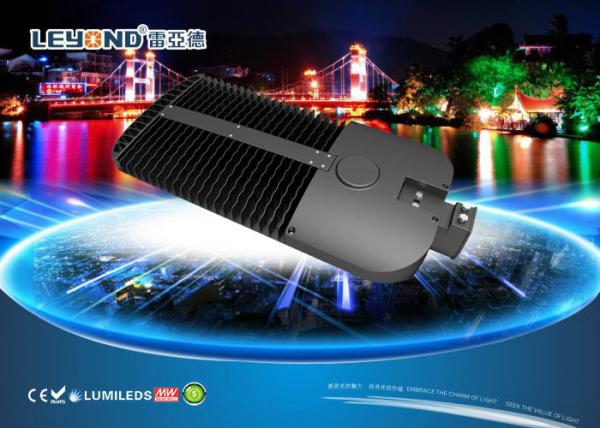

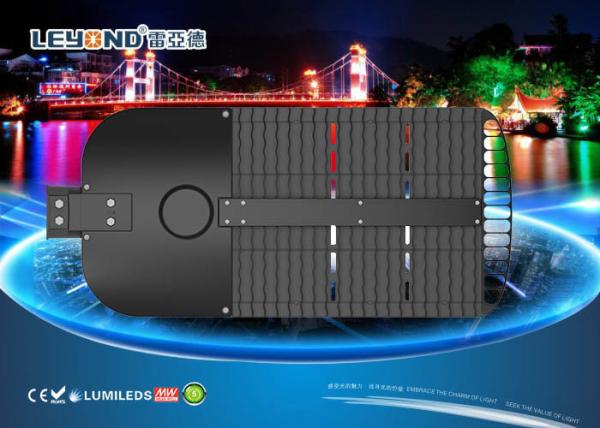

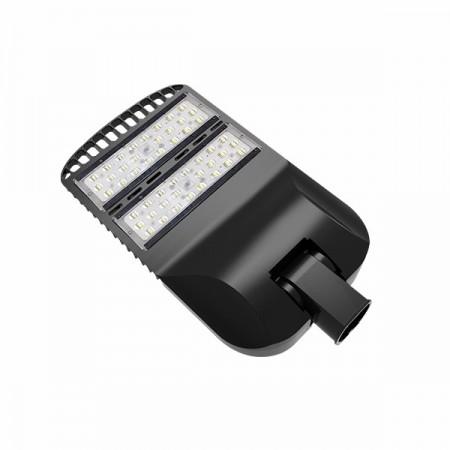

High Power Solar Panel Module Road Led Street Lighting Die Casting Aluminum + Pc

Product Description:

1. Save 80% more energy compared with traditional lighting fixtures

2. Easy to install and use, secure and reliable

3. No UV or RF interference, No mercury or lead

4.Light body is made of good quality die casting aluminum, exiguity and unique design, excellent heat dissipation

5. long life span>50000hrs

6. High brightness, low consumption, green for environment

7. AC85-305V in different countries and regions.AC12/24V led driver is also available

8. Potection grade is IP65

Features:

1. 2pc 1W chips are packaged in one LED, which ensure high stability and also reduce the
death rate of the leds.
2. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
3. Die-casting housings, streamline heat sink with good heat dissipation.
4. High quality power supply, input voltage 100-277V. The power efficiency is more than 90%,power factor greater than 0.98, UL compulsory certification.
5. Adopting 3030 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
6. Work without strobe, fast transient response;A wide range of working voltage.

Specification:

Installation height

8-15m

Power

150W

Luminous flux

19000LM

Light efficiency

110lm/W

Light source

Lumiled 3030

Material

High quality die-casting aluminum alloy

Light degradation rate

25000h ≤ 30%

Color rendering index

Ra≥85

Power factor

PF≥0.96

Average illumination

8M>25LUX 10M>20LUX

Rated life

≥50000hours

Color temperature

2700K-6500K

Working temperature

-30~+50°C

Input Voltage

AC95-305V or DC12/24V

Beam angle

150°*65°

IP code

IP65

Brand

LEYOND

Warranty

5 years

Certificate

CE, ROHS, SAA, EMC, LVD

Application

garden, courtyard, road, outdoor, etc.

High Power Solar Panel Module Road Led Street Lighting Die Casting Aluminum + Pc

Application:

The street light can be widely used for the Highways, Urban Roads and Secondary Roads, Stadiums, Sidewalks, Residential Areas, Industrial Areas, Squares, Parks, Schools, Villas, Gardens and others lighting place.

High Power Solar Panel Module Road Led Street Lighting Die Casting Aluminum + Pc


Quality Control

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability
and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures
before shipping to customer.

Our Services:

Trade term: EXW, FOB, CIF

MOQ: 1pcs

Port: Shenzhen, Zhongshan, Guangzhou

Sample availability: Yes

Supply capability: 1000 pcs/day

Payment: T/T, Western Union, L/C, Paypal.

Shipment: ocean or air transportation, international express

Normal lead time: 7days for sample order;15 days for production order

Payment condition: 30% before production, 70%before delivery

If any interested, feel free to contact me or filled below, thanks for your time.
Pure Zhao(sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
T: +86-755-29816850 ext.8079
Mobile/whatsapp: +86 18675501972
Skype: pure_made
