Specifications
Brand Name :
Leyond Lighting
Model Number :
LY-ST12200-PW
Certification :
CE,ROHS,LVD,EMC
Place of Origin :
Shenzhen of China
MOQ :
3
Price :
Contact us
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/month
Delivery Time :
7-10working days after payment confirmed
Packaging Details :
Foam inside,1pc per box, 2 boxes per carton
Item Type :
LED Street Light
Color of House :
Grey Housing
N.W :
7.6KG
Warranty :
5 years
Wattages :
50W/100w/150w/200w/250w
Light Efficiency :
130lm/w
Size of Product :
569*328*98mm
Light Source :
LEDs
Power Factor :
>96%
Input Voltage(V) :
AC85-265V
Description

SMD3030 LED Street Light 200W For Highways / LED Luminaire Lights Energy Saving

Specification :

Item Number LY-ST12200-PW
LED Power 200W
IDriver Brand Meanwell
LED Chip Bridgelux chip
LED Quantity 90pcs
Lumen 11500-12000lm
Power Factor >0.96
Efficiency >95%
Beam Angle horizontal 150°, vertical 70°
Color Temperature 2800-3000K (WW); 4000-4500K(NW), 5000-5500K(PW), 6000-6500K (CW)
Guard Level IP66
Lifespan >50,000hrs
Housing Material Aluminum
Product Dimension 569*328*98mm
Net Weight 7.8kg
Gross Weight 8.6kg

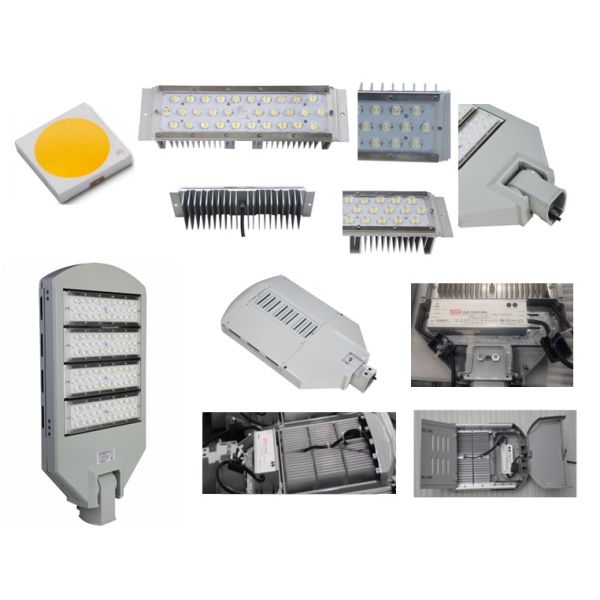

Features :

-High Lumens output >120lm/W, with Bridgelux chip high power LEDs

-With asymmetric optic lens, higher lumens transmittance up to 98%

- Meanwell brand driver HLG series, input voltage AC100-277V, PF>0.93

- Popular LED modules inside, easier for maintanance

- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation

- Durable lights with long life span 50000 hours, 5 years warranty

- Nice appearance with waterproof IP rating: IP66

- Matching 3x1mm² silicon rubber cable 1 meter (customize available)

SMD3030 LED Street Light 200W For Highways / LED Luminaire Lights Energy Saving

Aging Testing :

As we know aging test is a critical insurance of the quality for led lights, so recently we just

introduced the auto aging test equipment which can make the test more accurate and effective .

More info as belowing :

Voltage testing

High,normal,low voltage testing

Temperature testing

High temperature

Lighting testing

ON and OFF testing

Moving testing

Base plate will recycle times and times

City power testing

Simulate the city power

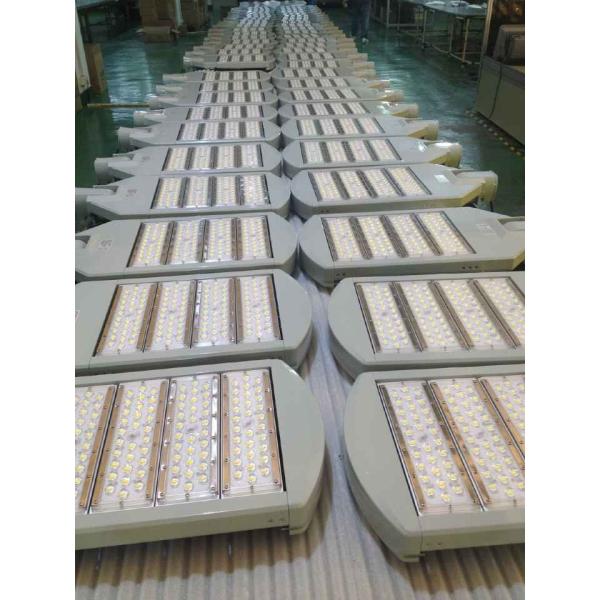

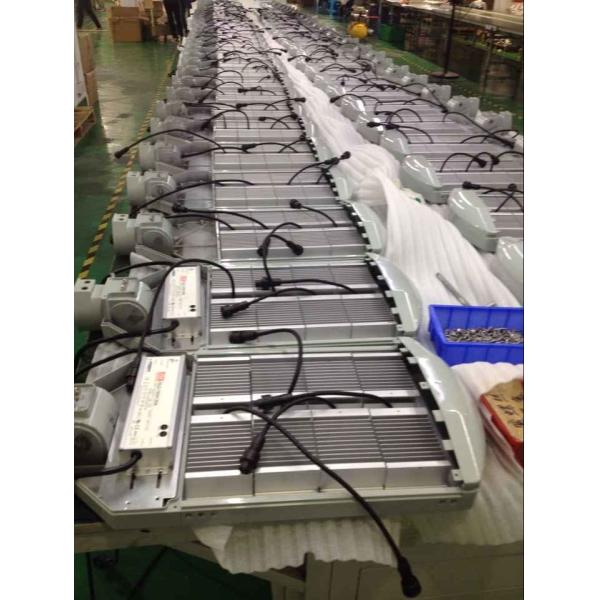

Production Line:

SMD3030 LED Street Light 200W For Highways / LED Luminaire Lights Energy SavingSMD3030 LED Street Light 200W For Highways / LED Luminaire Lights Energy Saving

Our services :

1.Factory price, large monthly output

2. 5years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4.Timely delivery, let you win biggest markets advantage

5.Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order

FAQ:

1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.

3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.

4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.

6. How long will the warranty period last?

A: We usually offer 3 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
