160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver
160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver
160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver
160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver
Specifications
Brand Name :
LEYOND
Model Number :
LY-ST40100-XX
Certification :
CE RoHS
Place of Origin :
Shenzhen, China
MOQ :
2
Price :
90-100USD/pcs
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
6,000 pcs/month
Delivery Time :
7-10 work days
Packaging Details :
Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Item :
Spiderman led street light 100w
LED source :
Lumileds/Briddgelux 5050
Power :
100w
Luminous :
16000lm
Driver :
Meanwell Driver
Beam angle :
150*70 degree
CCT :
2700-6500K
Lifetime :
>50000 hours
Control :
Daylight control, motion sensor
IP Rated :
IP66
Housing Material :
Aluminum
Description

160lm/w die casting LED street light 100W parking lot light shoe box mount fixtures with meanwell driver


Features:

Model : LY-ST40100XX

Inptut voltage: AC95V～240V 50/60HZ
Luminous flux: 16000lm
Chip Brand: LUXEON 5050
Driver Brand: Meanwell ELG-100
Beam Angle: 150*65°
Warranty: 5 years
CRI: >70
Color Temperature: 2700-6500K

Luminous efficiency: 160LM/W

Lifespan: 50000hrs

IP Rating: IP65

Pole Diameter: 60mm
Package Size: 410*340*66mm
Net Weight: 6.3kg

Speficicaion:

1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.

2. Adopt famous Lumileds 5050 chip inside, high efficiency can up to 160 lm/w.

3. Die-casting housings, streamline heat sink with good heat dissipation

4. Meanwell HLG driver and offer 5 years warranty. Price is more competative than others on the market.

5. Short lead time, sample is 3-5 days; Bulk order is 10-15 days based on quantity. To be your firm supporter.

6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.

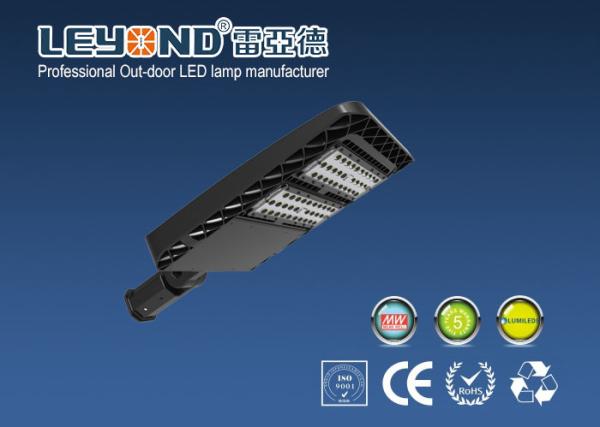

Product Picture:
160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Package:

Inner box Size: 670mmx370mmx100mm

Outer box Size: 690mmx385mmx240mm (2 PCS LED Street Light)


160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Mounting Section:

1)Slip Fitter Mount (square pole and round pole)

160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

2) Trunnion

160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

3) Pole Mount(square pole and round pole)

160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Operation and Storage Condition:


• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 90-305V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 7-8M height

Our Services:


1. Factory price, large monthly output

2. 5 years warranty, high quality guarantee

3. Professional Export service, easy to communicate and save your much time

4. Timely delivery, let you win biggest markets advantage

5. Satisfied After-sales service, to be your reliable supplier

6. Any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order

FAQ:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.


Secondly We quote according to your requirements or our suggestions.


Thirdly customer confirms the samples and places deposit for formal order.


Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

If any interest, welcome to contact us!

Ella Zhang (Sales Engineer)

T: +86-755-29816850 ext.8079 Mobile/whatsapp: +86-136 3289 5220

Skype: lysales25 Email:sales08(at)leyond.com.cn

Web:www.leyond.com.cn
