Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Specifications
Brand Name :
Leyond
Model Number :
LY-ST20060-XX
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
30,000 pcs/month
Delivery Time :
5-15 workdays
Packaging Details :
Standard neutral Color Box
Power :
60w (30w,40w,50w)
LED Chip :
Lumileds 3030 (5050)
LED Driver :
Meanwell
IP Rating :
IP66
PF :
>0.98
CCT :
2700-6500K
Material :
Aluminum+PC optical lens
Beam Angle :
150X65 de
luminous flux :
7200 lm
Description

High Performance External Energy Efficient LED Street Lamps 60w 7200lm Meanwell Driver

Led street light 60w Specification:

Product Model Power LED Quantity Luminous Flux Light Efficiency CRI CCT Beam Angle
LY-ST20060 60W 28 pcs 7200 LM 120 LM/W ＞70 2700-6500K 150x65d

Product Model Input Voltage Product Size IP Grade Life Span Material Power Range
LY-ST20060 AC100-240V 410x200x90mm IP66 50000 hrs Alumium+PC 30w 40w 50w 60w

Par NO

Parameter

 LY-ST20030XX LY-ST20040XX LY-ST20050XX LY-ST20060XX
Input voltage AC100V～240V 50/60HZ
System consumption(W) 30 40 50 60
Luminous flux(lm) 3900 5000 6100 7200
Chip Brand

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030

LUXEON 3030

LEYOND 3030
Current 0.14A/220V 0.19A/220V 0.24A/220V 0.29A/220V
CRI ＞75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) ＞50000
Luminous efficiency(lm/w) ＞120
Dimmable YES＆NO YES＆NO YES＆NO YES＆NO
IP Rating IP66
Net Weigh(kg) 2.8 2.8 2.8 2.8

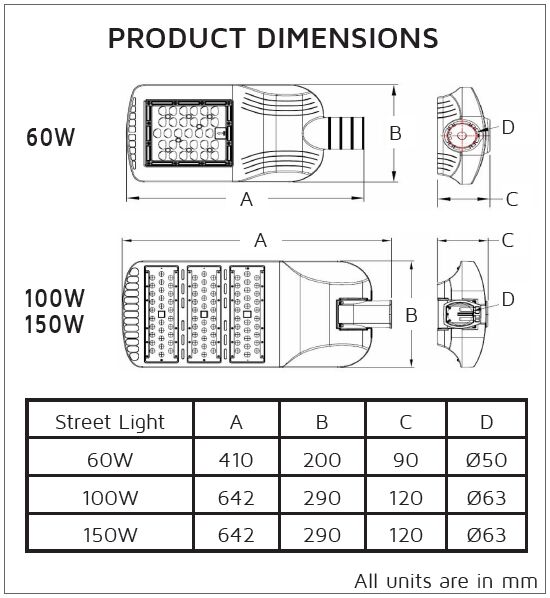

Size(mm)

Advantages:

Street light with 5050 chips 160-170lm/w, features as below:
1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.
2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.
3) Lumileds 5050 LEDs,robust aluminum housing,plus Meanwell HLG driver,5 years warranty.
Specifications:
1. Bat Wing Beam Angle:150°x70
2. Modular design,Easy Replacement,good heat dissipation,Small size,light weight,competitive price.
3. Energy Saving,Economical and environmentally friendly
4. Grey & Black Housing,flexible chosen.
5. Fast delivery time.
6. Multiple functions: dimmable, daylight control, photocell sensor
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Application:
1. Parking lot, urban roads,secondary roads
2. Stadiums, sidewalks, residential areas,
3. Industrial areas,squares, parks,
4. Schools,villas, Gardens and other places.
Energy Efficient LED Street Lamps 60w LED Street Lighting 9600lm Meanwell Driver
Our Service:
Payment: T/T in advance
Items: EXW Price
Delivery Time: 5-7 days for sample, 12-18 work days for bulk order.
Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.

Quality Control:

Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.

Operating Guide:

1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height

FAQ:

1. May I have a sample for the light please?
---Sure,we welcome sample test.
2. How many watts does this light provide?
---30w, 40w,50w, 60w
3. Which shipping way do you have?
---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.
4. How many years warranty will you provide?
---5 years warranty.
5. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.
