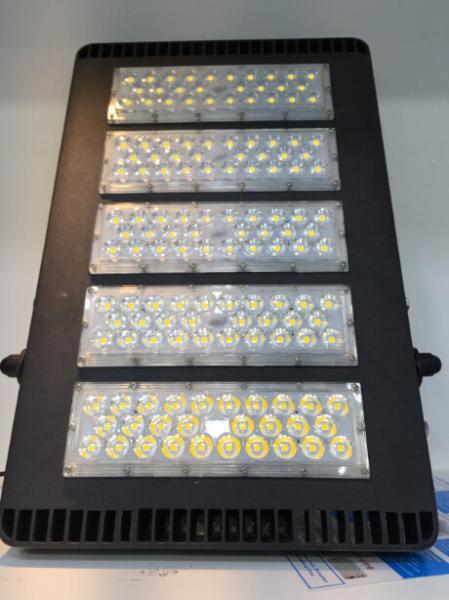

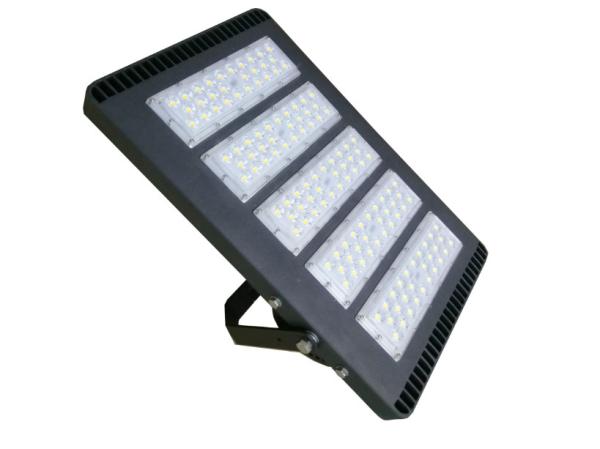

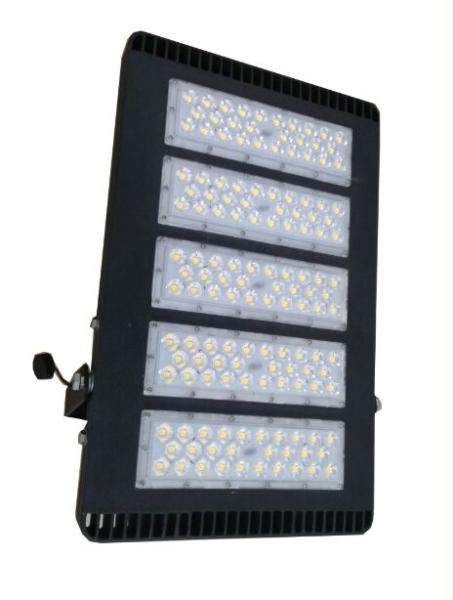

Stadium LED Flood Light 240w:
1. Features:
2. Application:
It is applicable to playground lighting ,warehouse lighting, plaza lighting,tunnel lighting and so on.
3. Technical parameter:
Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency | |
LY-ST30240-PW | 5 | 240W | AC90~305V 50/60Hz | 1.86A/220VAC | >0.95 | >90% | |
| |||||||
Model | modules number | Power | Luminous flux | Luminous efficiency | CRI | CCT | BeamAngle |
LY-ST30240PW | 5 | 240W | 38400lm | 160lm/W | >80 | 3000K |
|
| |||||||
Model | modules number | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
LY-ST302400PW | 5 | 240W | 540X340X67MM | 12kg | 10.5kg | IP66 | Aluminum +PC |
4. Attentions:
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the original package and
contact us.
In order to ensure the product work properly, please use the power supply within
indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant gasket or similar
materials.
1-10V dimming need to be customized
5. Advantages:
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 25°, 60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
4. FAQ:
1). How is the warranty?
----We could offer 5 years warranty, and during our warranty:
1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.
2). How is the payment term?
----30% T/T in advance, 70% balance before shipment. P.S: T/T, Paypal, Wester Union are OK!
3). How is the lead/production time?
----7~15 work days (It depends on the qty of the order)
4). Could you accept OEM?
------We accept OEM. OEM box, OEM sticker
