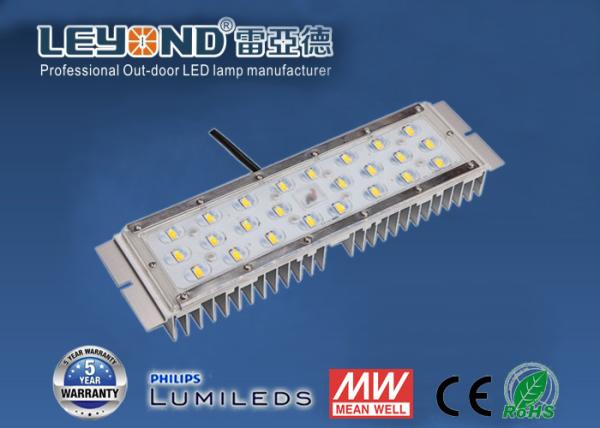

Waterproof LED Module For Street Light Fitting / Outdoor LED Street Light Module

Specification

	Product Characteristics
	Model No.	LY-ST53050P/WW
	Power	30W/40W/50W
	LED Chip	Luxeon 5050
	Luminous Efficiency	160-170lm/w
	IP Rating	IP65
	Beam Angle	150*70°
	LED qty	24pcs
	Voltage DC	42-45V
	CCT	2700K-6500K

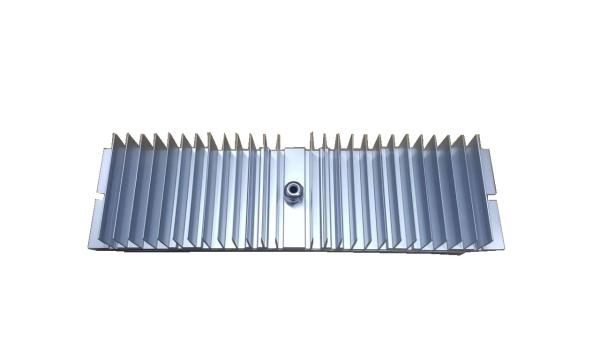

Heatsink

6063 aluminum heatsink.

Fin heat sink to ensure maximum heat transfer

LED & Optical Assembly

Precision refractive optical lens special designed for road lighting.

Utilizes high brightness leds , 70 CRI at 5000-6000K

Modular LED Light Advantages:

• Convection heat radiation design, deduce light decay and prelong life span, CHEM module, easy replacing.High luminous efficiency
• 24PCS SMD 5050 LED inside,High efficiency.
• Adoption patent optical lens with high light transmittance up to 98%,No glare,No RF interference.
• Excellent heat dissipation design.
• Easy to assemble and costs less for replacing.
• Total Lumen 8400-8500LM,lumens efficiency is up to 150/W..
• Convection heat dissipation system ensure LED long life span.
• Several led chips available, easy selection with your goal.
• Unique aluminium heatsink greatly reduce product weight and guarantee the safety usage,
• This new heatsink significantly increase the efficiency of thermal conduction with less material usage and more saving on energy. It is the best solution of LED street light.

Package

·1 Inner Carton = 2 Set Weight:1.2KG

·1 Outer Carton= 40 Set Weight:25.0KG

·Inner Carton Size : 306mm X 83mm X 67mm

·Outer Carton Size : 365mm X 322mm X 354mm

Remark

1. The led module adopt special techniques to keep enough light efficiency, please do not open the light engine ,otherwise there won’t have repairing guarantee.

2. When customers in the process of matching the power supply,please match with the surge protector to ensure the safety.

3. The radiator has its own design peak, please do not exceed the maximum use of current so that ensure the light efficiency and lumen.

4. All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp .

Trade terms

Payment: T/T, western Union or Paypal
Shipping: By Express(EMS, DHL, UPS etc), By Air or By Sea
Delivery time: 7-15 working days for normal orders.
Port: Shenzhen, China

Our service

1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area, ideas of design and all your private information.

FAQ:

1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.

3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.

4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.

6. How long will the warranty period last?

A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
