Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
Specifications
Brand Name :
LEYOND
Model Number :
LY-ST600120-XX
Certification :
CE/ROHS/LVD/EMC ISO9001:2015
Place of Origin :
Shenzhen
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union, Paypal
Supply Ability :
5000/Month
Delivery Time :
5-10 working days
Packaging Details :
KK cartoon + PE foam
Power :
120w
Lumen :
160lm/w
Driver :
INVENTRONICS
LED Chips :
Lumileds Luxeon 5050
IP Rate :
IP65
Working Temp :
-25 - +50 °C
Application :
Garden, Garden Square Park, Street
Working lifetime(hour) :
50000hrs
Item type :
Street Lights
Beam angle(°) :
150*65
Description

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

Aluminium LED Street Light 160lm W 120w Outdoor Road Highway Lighting 5 Years Warranty

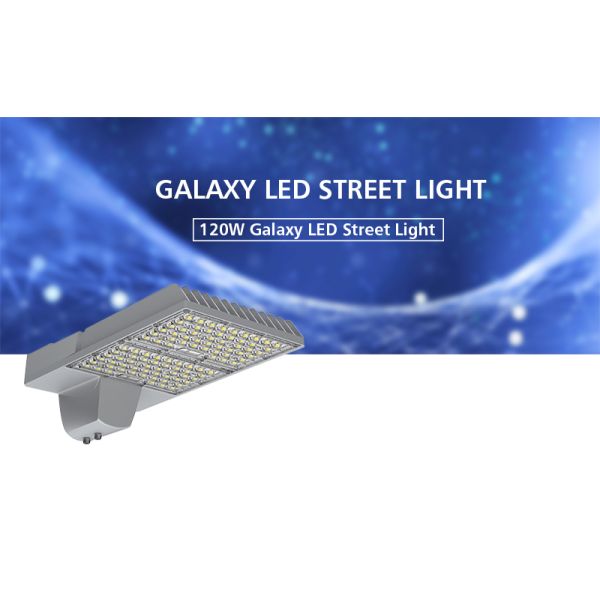

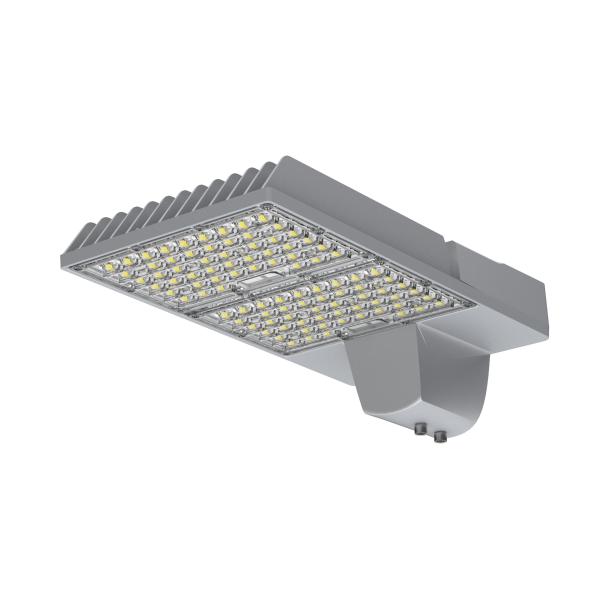

1. Outlook of Leyond Galaxy LED Street light 120W

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

2. Specification of Leyond Galaxy LED Street light 120W

Par NO

Parameter

 LY-ST60120PW LY- ST60120WW LY- ST60120NW
Inptut voltage AC100V～305V 50/60HZ
Sysem consumption(W) 120 120 120
Luminous flux(lm) 20100 18000 19275
Chip Brand LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050
Color Temperature Pure white:5000-6500K Warm white:2700-3200K Neutral white:4000-4500K
CRI ＞70
Beam Angle 150*60 DEG
LED Driver

INVENTRONICS EUM-150
Luminous efficiency(lm/w) ＞160
Lifespan(hrs) ＞50000
IP Rating IP66
Dimmable YES＆NO YES＆NO YES＆NO
Size(mm) 394x220x128 394x220x128 394x220x128
Net Weigh(kg) 3.6 3.6 3.6
Package Size(mm) 430*250*180 430*250*180

430*250*180
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 4.7 4.7 4.7

3. Features of Leyond Galaxy LED Street light 120W

• Absolutely unique mold,make your lighting special and fantastic.

• The appearance of body: aluminum alloy die-casting

• High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.

• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

• Green environmental protection, no UV light and infrared radiation, no mercury pollution.

• Nice appearance and non-fouling properties, Protection class IP66.

• Work without strobe, fast transient response；A wide range of working voltage.

4. Application of Leyond Galaxy LED Street light 100W

Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

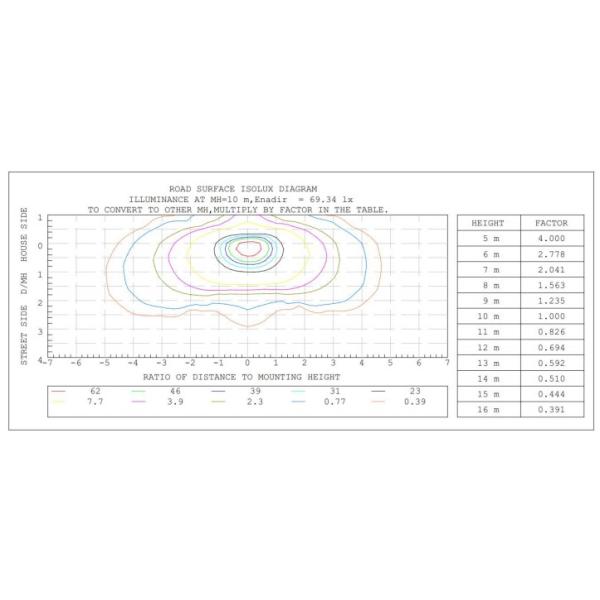

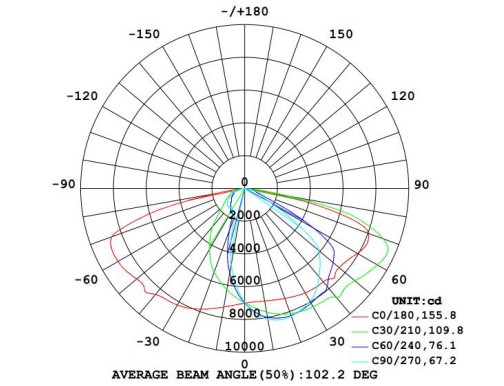

5. Distribution Curve

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road

6. Operation and Storage Condition

 Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
 Input Voltage 100~305V AC, 50/60Hz
 Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
 Mounting Height : Suitable for 6~10m height

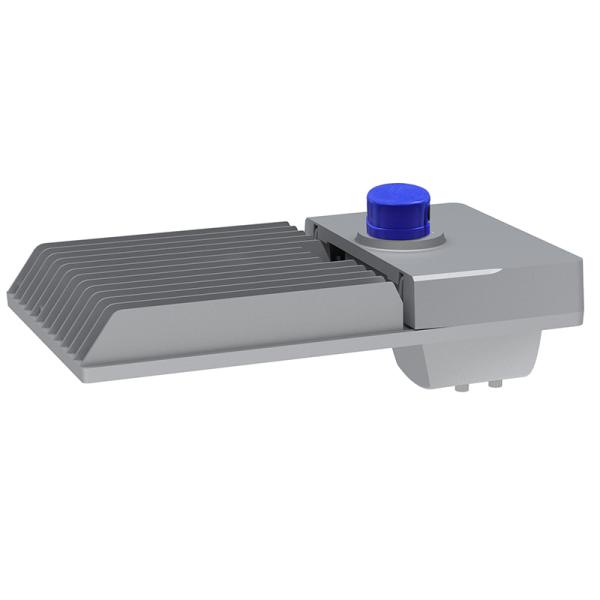

7. Optional function
1) Daylight automatically controlling ON / OFF
 Turn-On Light Level: 10 Lux or at customer’s request
 Turn-Off Light Level: 50 Lux or at customer’s request
 Turn-On Time Delay: 10-15s
 Turn-Off Time Delay: 10-15s
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
8. Package
Inner box Size: 430mm×250mm×180mm
Outer box Size: 450mm×265mm×400mm (2 PCS LED Street Light)
Luxeon 5050 Aluminium 120w LED Highway Lighting Outdoor Road
9. Warning
 Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
 Do Not Open the Light Engine
 Do Not Soak the LED Street Light into Water
 Do Not Light up the System Without Grounding
 1-10V dimming need to be customized
