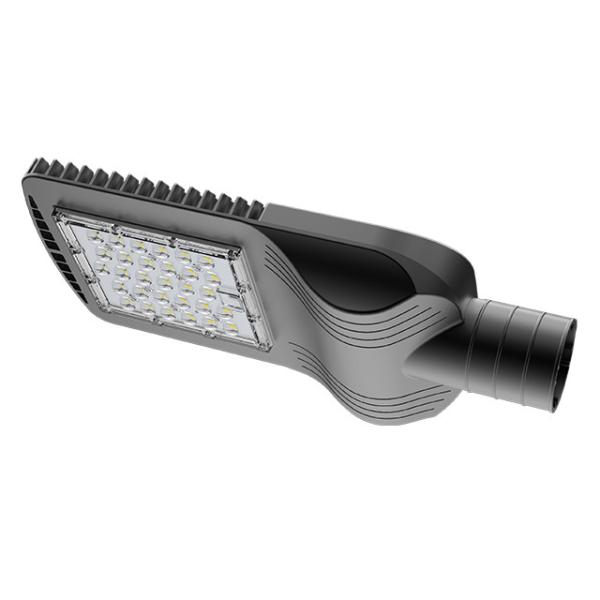

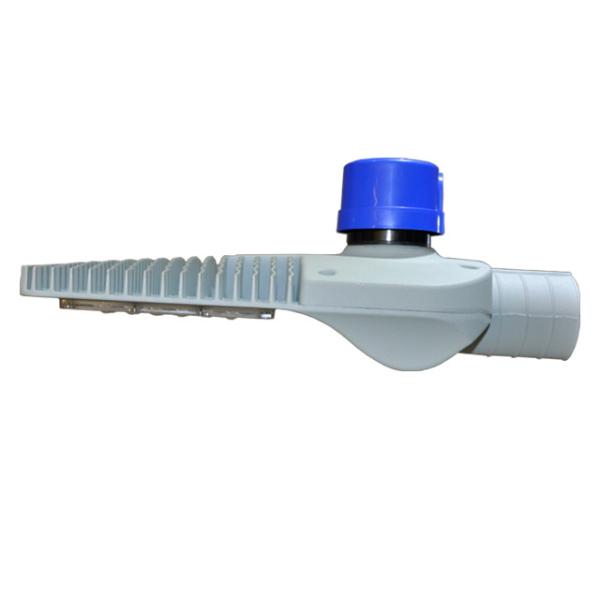

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Specifications
Brand Name :
Leyond
Model Number :
LY-ST20030X-LY-ST20060XX
Certification :
CE, ROHS, EMEC, CB
Place of Origin :
Shenzhen, CHina
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs/week
Delivery Time :
5-8 work days
Packaging Details :
carton
Product name :
30W 40W 50W 60W LED Street Lights
Power :
30W 40W 50W 60W
Light source :
Luxeon 5050
Ip rating :
IP66
Input voltage(v) :
AC100V～240V 50/60HZ
Cri (ra>) :
>75
Color :
Black /Grey /White
Working lifetime(hour) :
>50000
Working temperature(℃) :
-30°-60°
Warranty(year) :
5
Luminous efficiency(lm/w) :
>160lm/w
Application :
highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
Beam angle(°) :
150*65°， 153*80°
Lamp body material :
Die Cast Aluminum
Color temperature(cct) :
2700K-6500K
Dimmable :
Yes/ No
Net weight(kg) :
2.8
Size(mm) :
410*200*90
Luminous flux(lm) :
4800, 6400, 8000, 9600
Description

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W

Product Features

• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.

• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.

• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.

• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,

high temperature, which fully ensure long life span and high stability of the products.

• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

• Green environmental protection, no UV light and infrared radiation, no mercury pollution.

• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.

Product Specification

Part NO.

Parameter

 LY-ST20030XX LY-ST20040XX LY-ST20050XX LY-ST20060XX
Power 30W 40W 50W 60W
Luminous flux(lm) 4800 6400 8000 9600
Input Voltage AC100~240V 50/60HZ
Beam angle 150*60° 153*80°
Pole Diameter 60mm
Chip Brand

Luxeon 5050
CRI >75
Color Temperature Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Material Die Cast Aluminum
IP Rating IP66

Product Details

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W

FAQ

* What LED chip is used? Luxeon 5050 chips or negotiate
* What driver you use? Meanwell driver, or negotiate
* What is the warranty period? 5 years warranty
