160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
Specifications
Brand Name :
Leyond
Model Number :
LY-ST100120-PW
Certification :
CB, TUV, CE, ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
10 working days
Packaging Details :
69*35*18cm carton
warrenty :
5 years
LED Chip :
Luxeon 5050
Driver :
Meanwell ELG-150 Driver
Housing Material :
Die-casting Aluminum
CCT :
2700-6500K
Certificates :
CE EMC LVD RoHS CB ENEC TUV
Housing Color :
White/black/Grey
Description

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

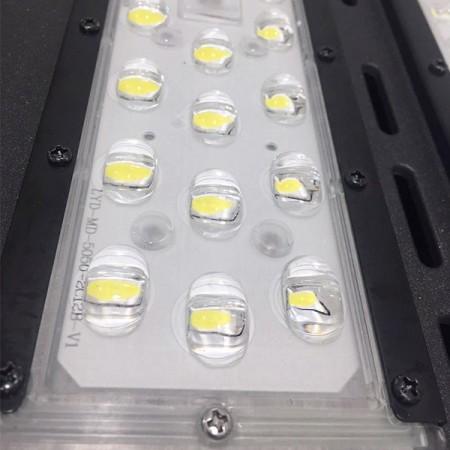

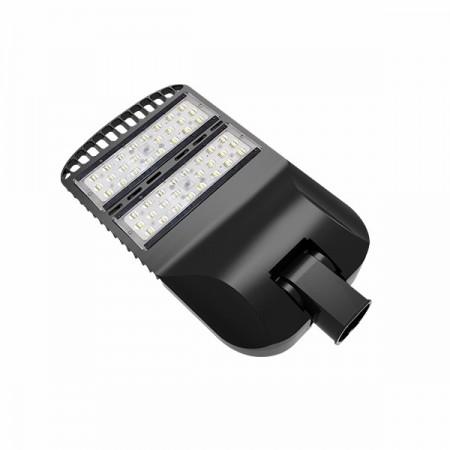

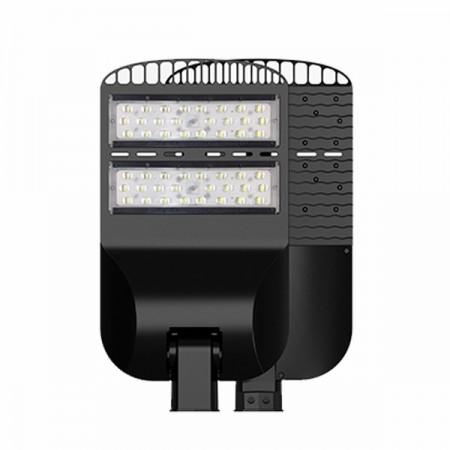

120W LED Street Light Pictures:

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

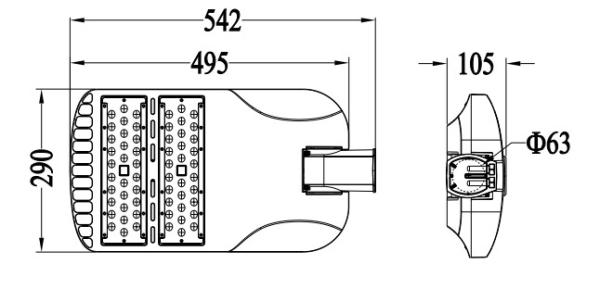

120W LED Street Light Dimension:

160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

120W LED Street Light Specifications:

Par NO

Parameter

 LY-ST10080XX LY-ST10100XX LY-ST10120XX
Input voltage AC100V～240V 50/60HZ
System consumption(W) 80 100 120
Luminous flux(lm) 13200 16300 18840
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050
Current 0.38A/220V 0.48A/220V 0.57A/220V
CRI ＞75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) ＞50000
Luminous efficiency(lm/w) ＞160
Dimmable YES＆NO YES＆NO YES＆NO
IP Rating IP66
Net Weigh(kg) 5.9 5.9 5.9
Size(mm) 542*290*105 542*290*105 542*290*105

120W LED Street Light Features:

·Absolutely unique mold,make your lighting special and fantastic.
·Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
·Anti-glare and uniform light level to avoid any visual discomfort.
·high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
·Adopting Lumileds 5050 EMC LED light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
·Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
·Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
·Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
·Green environmental protection, no UV light and infrared radiation, no mercury pollution.
·Nice appearance and non-fouling properties, Protection class IP66.
·Work without strobe, fast transient response；A wide range of working voltage.

120W Sword LED Street Light Operation and Storage Condition:
·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~240V AC, 50/60Hz
·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 6~12m height

120W Sword LED Street Light Package
·Inner box Size: 720mm×370mm×200mm
·Outer box Size: 745mm×395mm×225mm (2 PCS LED Street Light)

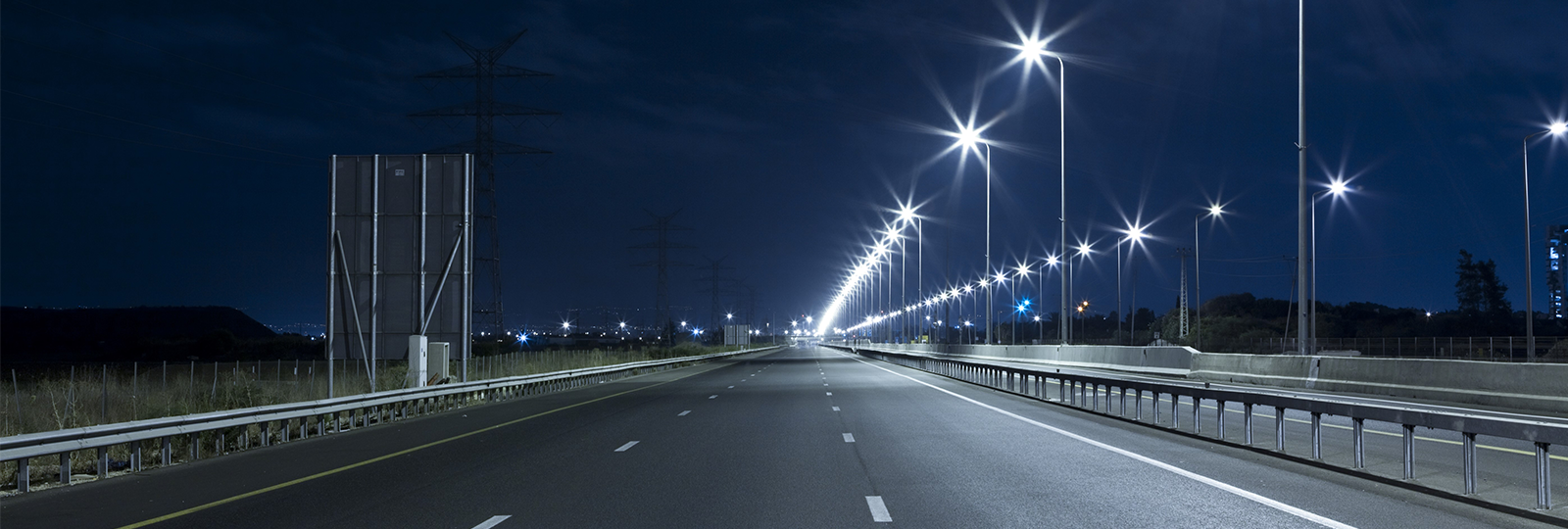

120W Sword LED Street Light Application
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell
160lm/w IP66 ENEC CB Certified Smart City Highway LED Street light 80W 100W 120W with photocell

Our Services:
1.Factory price, large monthly output
2. 5 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order

Factory Environment:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.

FAQ:

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
