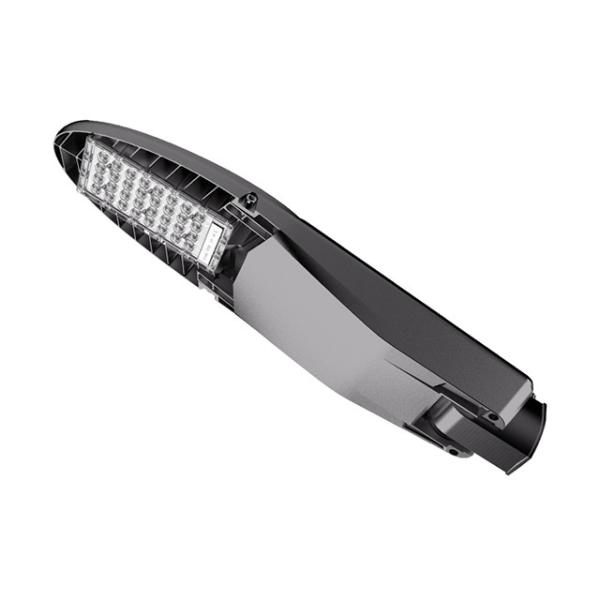

160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
Specifications
Brand Name :
Leyond
Model Number :
LY-ST80180XX
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000pcs/mon
Delivery Time :
7-10 working days
Packaging Details :
Carton package
Beam Angle :
150*80 degree
Product Name :
LED Street light
Warranty :
5 years
High efficiency :
160lm/w
Power :
180W
Chip brand :
5050
Driver :
Meanwell
Description

160lm/W 180W Outdoor Security LED Lights Outdoor Post Top Shoebox

Nice Design Led Street Light For Street Outdoor Post Top LED Street Light Shoebox

Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Specification:

Par NO
Parameter

 LY-ST80120XX LY-ST80150XX LY-ST80180XX
Input voltage AC100V～277V 50/60HZ / DC12-24V
POWER(W) 120W 150W 180W
Luminous flux(lm) 18000 21750 25200
Chip Brand LUXEON 3030
LED Quantity (pcs) 224
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) ＞150 >145 >140
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) ＞50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L806*W200*H109mm (L31.73*W7.88*H4.29Inch)
Net Weigh(kg) 4.8
Package Size(mm) L847*W242*H154mm (L33.35*W9.53*H6.06inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 5.6
Installation height(m) 8-12


Distribution Curve (100W)
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
Features

  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
  • Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
  • Waterproof and dustproof grade: IP66, protection grade IK10;
  • The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Outlook:
160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
Package:

Name Size Quantity N.G G.W
Inner box

L847*W242*H154mm
(L33.35*W9.53*H6.06inch)

 1pcs 4.8kg 5.6kg
Outer box

L865*W254*H332mm
L34.06*W10.0*H13.07inch

 2pcs 9.6kg 11.9kg

Projects:

160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
Other products:

Leyond 100W Toolless led street light production pictures:

160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox

160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox

160lm/w 180W Outdoor Security LED Lights Outdoor Post Top Shoebox
