All In One IP66 100W Solar LED Street Lighting Light Time Control

IP66 Solar LED lighting Street 100W all in one solar LED Street light for roadway.

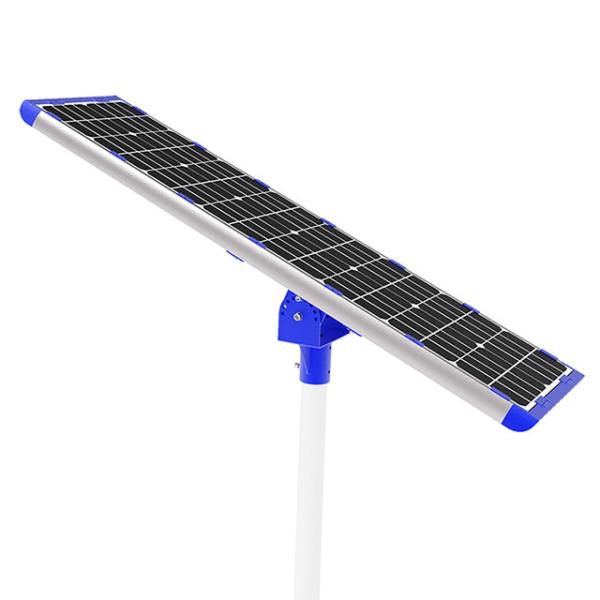

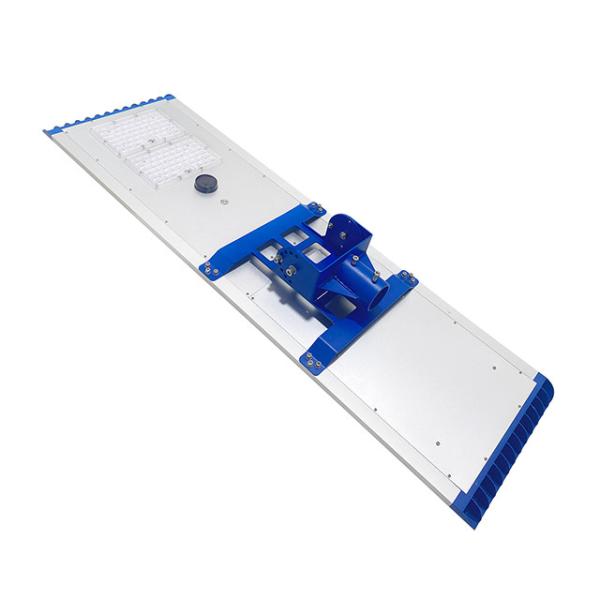

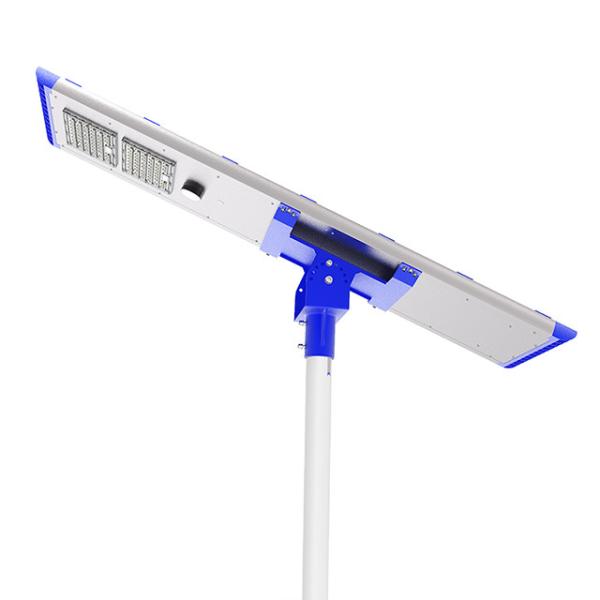

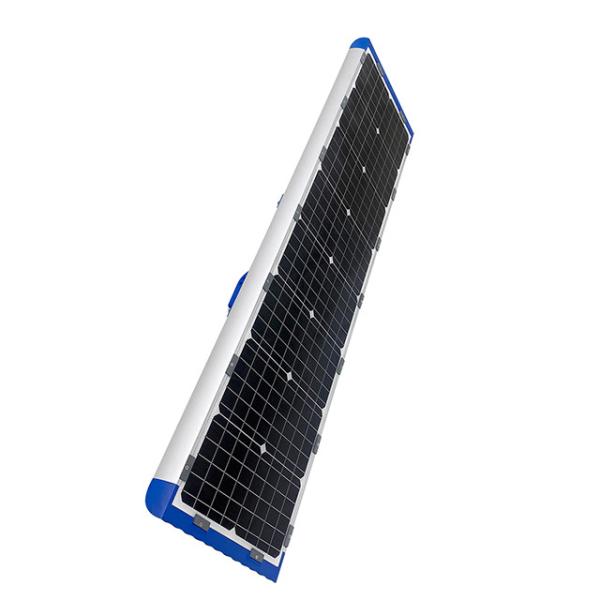

1. Outlook

02. Features:

1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;

2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;

3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;

4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;

5. It has functions of light control, time control, dimming, intelligent power saving + morning light;

6. Solar controller built-in lightning protection module;

7. Using ternary lithium battery technology, the battery capacity is high;

8. 365 days uninterrupted power.

9. Three control model:

Time control + light sensor control + motion sensor control;

Time control: It can be divided into 5 time periods, which is more humane and energy-saving;

Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V,the lamp will automatically turn on;

Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness; when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)

03. specification

04. Distribution Curve:

05. Operation and Storage Condition:

l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%

l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%

l Mounting Height: Suitable for 6~8m height

06. Package

Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)

L54.92*W8.26*H16.93 Inch

07. Operation and Storage Condition

l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%

l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%

l Mounting Height: Suitable for 6~8m height

08. Lamp internal wiring diagram
