High Efficiency 60W Solar LED Lighting For Roadway Lighting Fixture

160Lm/W high efficiency Solar LED Street light 60W for roadway lighting fixture.

1. Outlook

02. Features:

1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;

2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;

3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;

4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;

5. It has functions of light control, time control, dimming, intelligent power saving + morning light;

6. Solar controller built-in lightning protection module;

7. Using ternary lithium battery technology, the battery capacity is high;

8. 365 days uninterrupted power.

9. Three control model:

Time control + light sensor control + motion sensor control;

Time control: It can be divided into 5 time periods, which is more humane and energy-saving;

Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V,the lamp will automatically turn on;

Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness; when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)

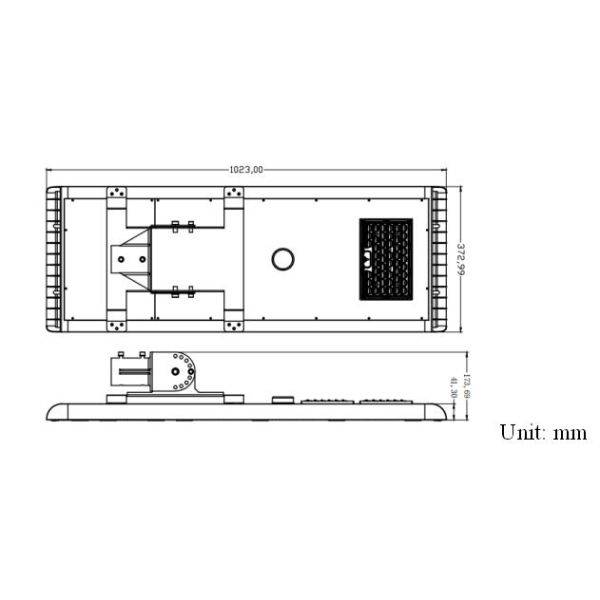

03. specification

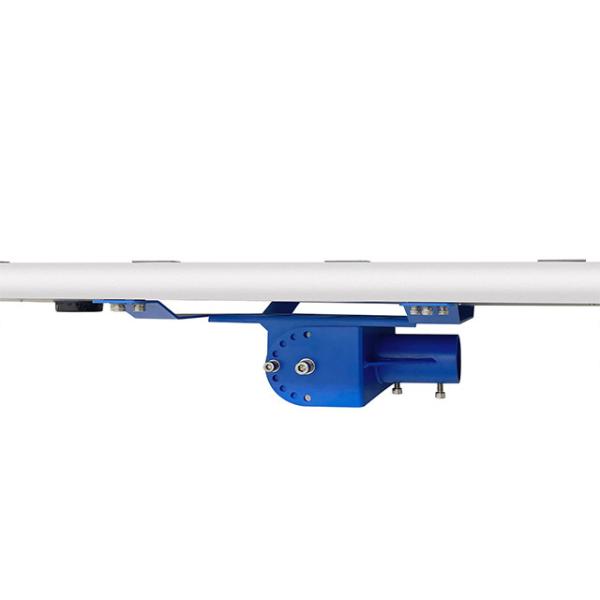

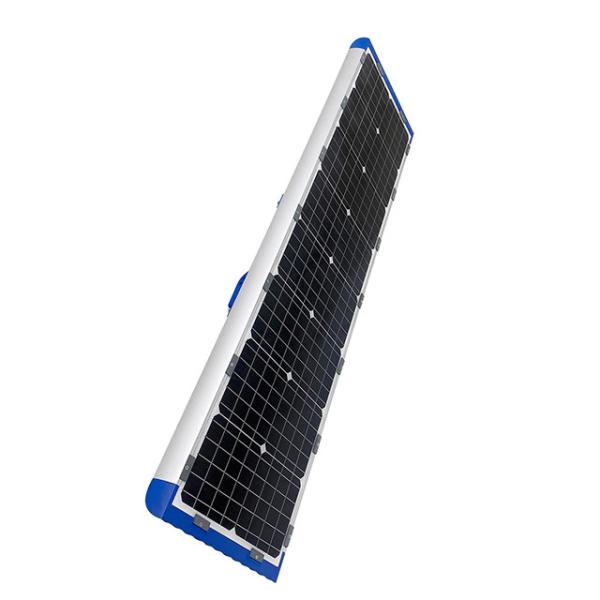

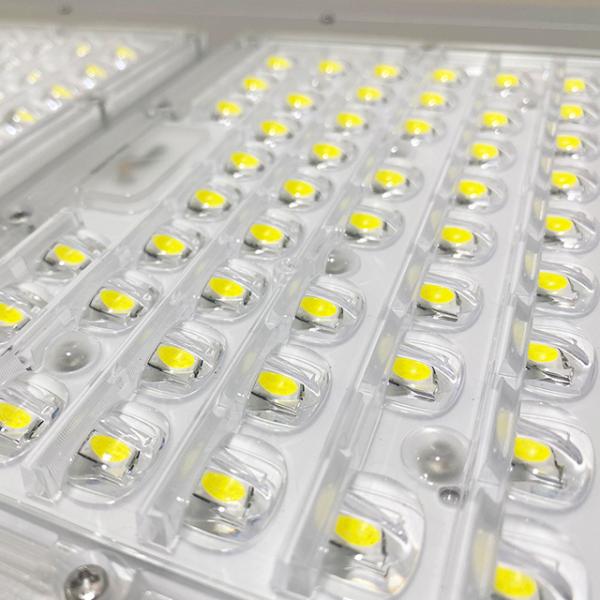

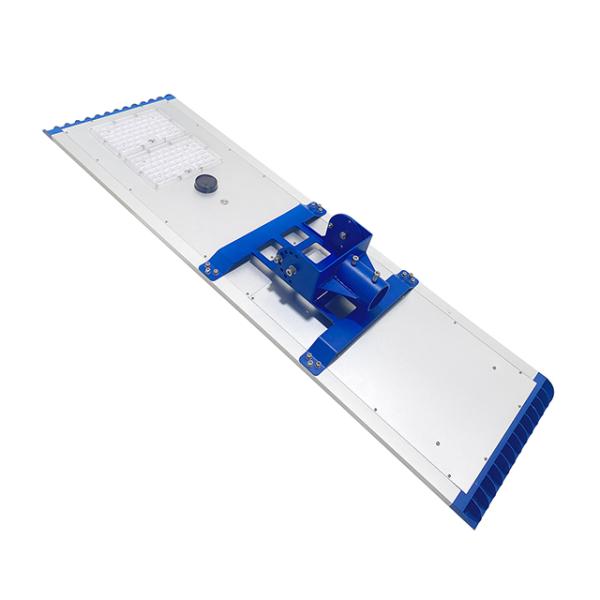

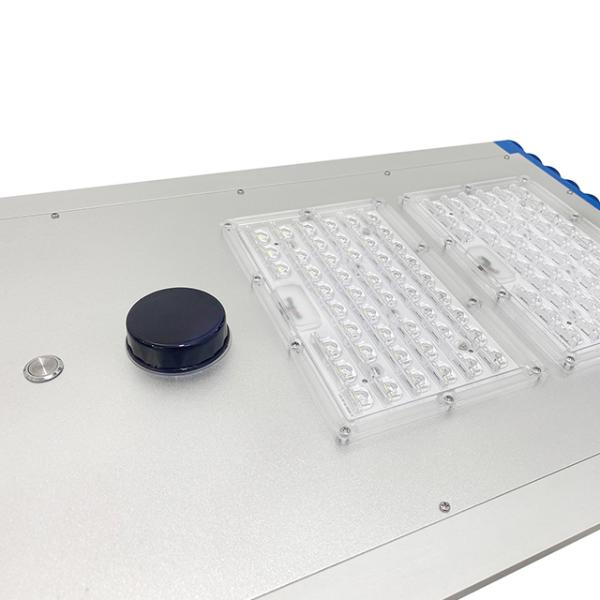

04. Lamp Detailed Pictures:

05. Package

Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)

L54.92*W8.26*H16.93 Inch

06. Operation and Storage Condition

l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%

l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%

l Mounting Height: Suitable for 6~8m height

07. Lamp internal wiring diagram
