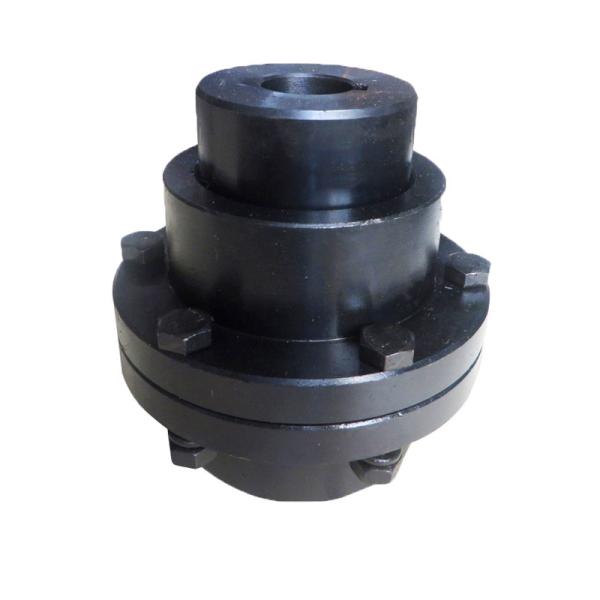

customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling
customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling
customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling
customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling
Specifications
Brand Name :
JUDE
Place of Origin :
Hebei, China
Packaging Details :
customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling
WOODEN CASE/AS CUSTOMER NEED
Supply Ability :
1200 Set/Sets per Month
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Structure :
Gear
Flexible or Rigid :
Rigid
Standard or Nonstandard :
Standard
Material :
Steel, 45#/40Cr/42CrMo
Color :
Customers Request
Size :
Standard Size
Surface Treatment :
Painting/Black Oxide Finish/Customers Request
Packing :
Plywood case
MOQ :
1 set
Application :
Printing machinery / Packing machinery / Wood-working machinery etc.
Features :
Small dimension, low weight, high transmitted torque ;
shore hardness :
between 80-98
Product name :
curved teeth gear couplings,machine shaft coupling
Port :
TIANJIN
Description

customized GICLZ type gear motor shaft coupling,curved teeth gear couplings,machine shaft coupling

Product Description

Advantages of JUDE gear coupling

1. High and stable quality level

2.Installed horizontally and vertically without using any social tools.

3. Low-Cost maintenance

4. Compensation for axial, radial and angular misalignment.

5. Convenient axial plugging assembly.

6. No Embrittlement at low temperature.

7. Good slippery and frictional properties.

8. Resistance to chemical corrosion.

9. Excellent electrical insulation

10. Widely used in various mechanical and hydraulic fields.

Size Torque Tn KN.m Speed (n) r/min Bore d1,d2 Length L D D1 D2 D3 B A C Weight kg
GICLZ1 0.63 4000 25-50 62-112 125 95 60 80 57 37 2.5 5.4
GICLZ2 1.12 4000 30-60 82-142 144 120 75 95 67 44 2.5 10
GICLZ3 2.24 4000 30-70 82-142 174 140 95 115 77 53 3 17
GICLZ4 3.55 3600 40-75 112-142 196 165 115 130 89 62 3 23
GICLZ5 5 3300 40-90 112-172 224 183 130 150 99 71 3 37
GICLZ6 7.1 3000 60-95 142-172 241 200 145 170 109 80 4 47
GICLZ7 10 2680 60-120 142-212 260 230 160 195 122 90 4 70
GICLZ8 14 2500 65-120 142-212 282 245 175 210 132 96 5 82
GICLZ9 18 2350 80-140 172-252 314 270 200 225 142 104 5 100
GICLZ10 31.5 2150 80-160 172-302 346 300 220 250 165 124 5 150
GICLZ11 40 1880 100-180 212-302 380 330 260 285 180 133 6 210
GICLZ12 56 1680 120-200 212-352 442 380 290 325 208 156 6 290
GICLZ13 80 1530 140-220 252-352 482 420 320 360 238 182 7 410
GICLZ14 112 1300 160-250 302-410 520 465 360 410 266 207 8 590
GICLZ15 160 1180 190-280 352-470 580 510 400 450 278 214 10 780
GICLZ16 250 1000 200-320 352-470 680 595 465 500 320 250 10 1100
GICLZ17 280 980 200-320 352-470 720 645 495 530 336 256 10 1210
GICLZ18 355 900 240-340 410-550 775 675 520 540 351 262 10 1480
GICLZ19 450 830 260-360 410-550 815 715 560 580 372 280 10 1610
GICLZ20 500 790 280-380 470-550 855 755 585 600 393 297 13 2040
GICLZ21 630 750 300-400 470-650 915 795 620 640 404 305 13 2400
GICLZ22 710 720 340-420 550-650 960 840 665 680 415 316 13 2460
GICLZ23 800 680 360-450 550-650 1010 890 710 720 435 333 13 3340

Application of GICLZ DRUM GEAR COUPLINGS

1. GICLZ DRUM GEAR COUPLINGS are applicable to the case where the end of the two shafts are far away from each other

2.Printing machinery / Packing machinery / Wood-working machinery etc large-scale mechanical equipment

Material

45#/40Cr/42CrMo

Color

Any color available

Packaging

Plywood case

products images

Packaging & Shipping

About Us

Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
