Description

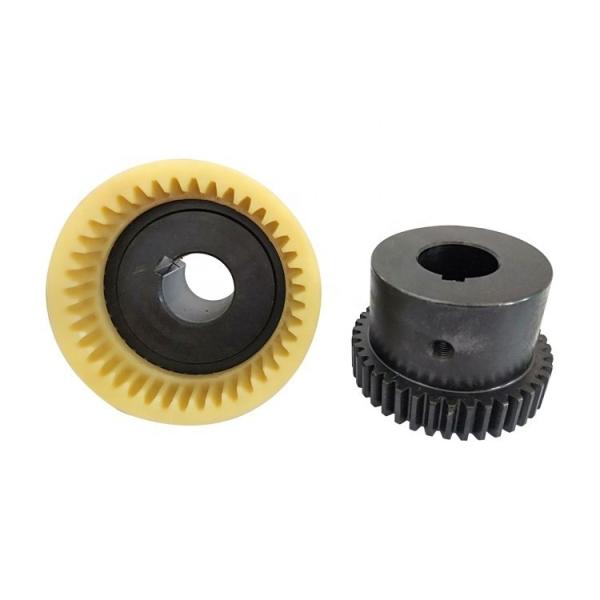

TGL 3 M24 Steel Crowned Teeth Gear Shaft Flexible Coupling With Nylon Sleeve Gear Coupling

Nylon sleeve Curved teeth gear coupling:

1. Double-section curved-tooth coupling

2. Widely used in various mechanical & hydraulic fields

3. Nylon-steel combined,maintenance-free

4. Compensate for axial,radial and angular misalignments.

5. Convenient axial plugging assembly

6. Finished product’s bore tolerance conforms to ISO H7,keyway width tolerance

conforms to DIN6885/1 JS9.

7. For installation dimensions,please refer to the following table.

8. Could be alternative for KTR Bowex coupling Type M.

Product Description

M24 Crowned Teeth Flexible Gear Coupling Steel Nylon Sleeve Gear Shaft CouplingsM24 Crowned Teeth Flexible Gear Coupling Steel Nylon Sleeve Gear Shaft Couplings

M24 Crowned Teeth Flexible Gear Coupling Steel Nylon Sleeve Gear Shaft Couplings

Size Rated Torque Tn N • m Max Speed r/min Main Size Bore DIA d Length L Rotational inertia kg.m2 Weight kg
D D1 B S
I type II type I type II type
TGL1 M14 10 10000 40 — 25 38 — 4 6-14 16-27 0.264 0.2
TGL2 M19 16 9000 48 — 32 38 — 4 8-19 20-30 0.64 0.278
TGL3 M24 31.5 8500 56 58 36 42 52 4 10-24 22-38 1.541 0.533
TGL4 M28 45 8000 66 70 45 46 56 4 12-28 27-44 3.98 0.869
TGL6 M32 63 7500 75 85 50 48 58 4 14-32 27-60 8.8 1.52
TGL6 M38 80 6700 82 90 58 48 58 4 16-38 30-60 14.64 2.15
TGL7 M42 100 6000 92 100 65 50 60 4 20-42 38-84 27.24 3.14
TGL8 M48 140 5600 100 100 72 50 60 4 22-48 38-84 38.64 4.18
TGL9 M65 355 4000 140 140 96 72 85 4 25-70 44-107 165.5 8.51
TGL10 M80 710 3150 175 175 128 95 95 6 30-85 60-132 534.6 17.1
TGL11 M100 1250 3000 210 210 165 102 102 8 40-110 84-167 1660 34.56
TGL12 M125 2500 2120 270 270 192 135 135 10 50-125 84-167 4731 66.86
