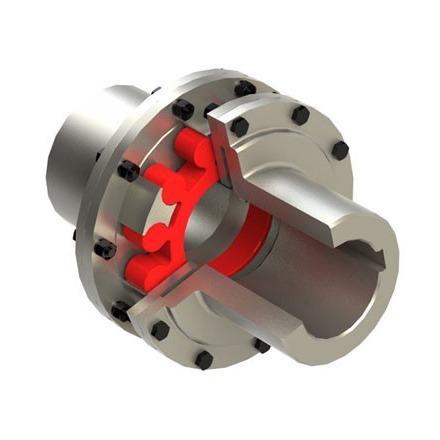

Single Flange Flexible Jaw Coupling Elastic Rubber Shaft Coupling LMD (MLZ)
Single Flange Flexible Jaw Coupling Elastic Rubber Shaft Coupling LMD (MLZ)
Specifications
Brand Name :
jude
Place of Origin :
cangzhou、china
Packaging Details :
Wooden Box Or Customized
Supply Ability :
2000 Set/Sets per Month
MOQ :
1
Certification :
CE、ISO
Model Number :
LMD (MLZ)
Warranty :
1 year
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Customized support :
OEM
Structure :
Jaw / Spider
Flexible or Rigid :
Flexible
Standard or Nonstandard :
Standard
Material :
Steel
Color :
Black
Product name :
single flange type Plum blossom elastic Jaw Rubber shaft Coupling
Feature :
High Stability
Surface Treatment :
Carburizing, blackening, electroplating, quenching.
heat treatment :
High frequency quenching heat treatment
RPM :
1500-8500(r/m)
Application :
Industrial Equipment
MOQ :
1 Set
Size :
Customized Size
custom :
yes
Port :
Tianjin
Description

LMD (MLZ) Single Flange Type Plum Blossom Elastic Jaw Rubber Shaft Coupling With Single Flange

Product Description

Introduction Of LMD/MLZ Single Flange Flexible Plum Jaw Coupling

LMD/MLZ Single Flange Flexible Plum Jaw Coupling mainly consist of two convex teeth that are closely meshed together to withstand radial extrusion to transmit torque. When the two axis has relative offset, the elastic elements have corresponding elastic deformation, which plays an automatic compensation role.
LMD/MLZ Single Flange Flexible Plum Jaw Coupling is mainly used for starting frequent, positive reverse, medium high speed, medium torque and high reliability work occasions, such as metallurgy, mining, petroleum, chemical engineering, lifting, transportation, light industry, textile, water pump, fan and so on.

Single Flange Flexible Jaw Coupling Elastic Rubber Shaft Coupling LMD (MLZ)

odel Nominal Torque

Tn

N.m

 High-poing speed

n

r/min

 Aperture Diameter

d1.d2

mm

 Aperture longness L0 recommendatory D D1 Most weight

kg
LM LMD LMS L L recommendatory LM LMD LMS LM LMD LMS
LM1 25 15300 8500 12-25 27-62 35 86 92 98 50 30 90 0.7
LMD1 1.6
LMS1 2.2
LM2 50 12000 7600 16-30 30-82 38 95 101.5 108 60 44 100 1.1
LMD2 2.4
LMS2 3.0
LM3 100 10900 6900 20-32 38-82 40 103 110 117 70 48 110 1.6
LMD3 3.2
LMS3 3.8
LM4 140 9000 6000 22-40 38-112 45 114 122 130 85 60 125 2.6
LMD4 4.6
LMS4 5.2
LM5 250 7300 5000 25-45 44-112 50 127 138.5 150 105 72 150 4.4
LMD5 5.6
LMS5 6.3
LM6 400 6100 4100 30-48 60-112 55 143 155 167 125 90 185 6.3
LMD6 8.6
LMS6 9.5
LM7 630 5300 3600 35-55 60-112 60 159 172 185 145 104 205 8.8
LMD7 11
LMS7 17
LM8 1120 4500 3100 45-65 84-142 70 181 195 209 170 130 240 14
LMD8 18
LMS8 26
LM9 1800 3800 2700 50-80 84-172 80 208 224 240 200 156 270 26
LMD9 32
LMS9 38
LM10 2800 3300 2500 60-100 107-212 90 230 248 268 230 180 305 42
LMD10 46
LMS10 54
LM11 4500 2900 2200 70-120 107-212 100 260 284 350 260 205 350 60
LMD11 72
LMS11 84
LM12 6300 2500 1900 80-130 132-252 115 297 321 400 300 245 400 88
LMD12 105
LMS12 118
LM13 11200 2100 1600 90-150 132-252 125 323 348 460 360 300 460 145
LMD13 158
LMS13 215
LM14 12500 1900 1500 100-160 167-302 135 333 358 500 400 335 500 165
LMD14 210
LMS14 265
