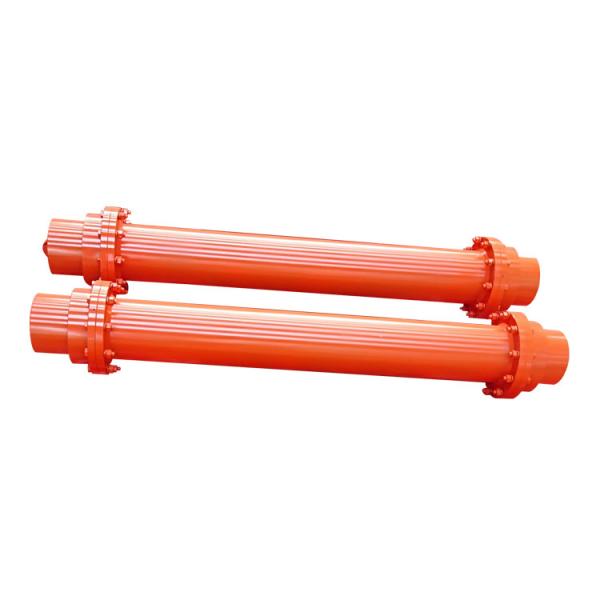

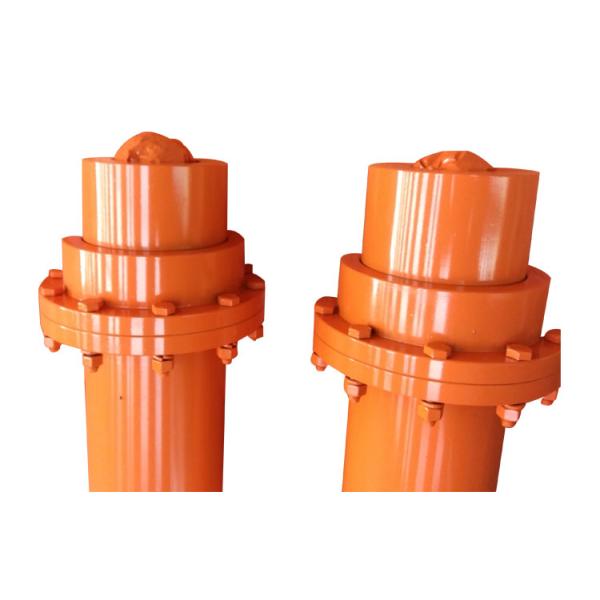

WGT Drum Shape Gear Coupling for Heavy industrial equipment

Product Description

Introduction Of WGT Drum Gear Shaft Coupling With Middle Set

WGT Drum Gear Shaft Coupling With Middle Set divided into I type and II type two, WGT connected set of drumgear coupling type I with type WGT connected gland, a drum gear coupling type II without gland type.
WGT Drum Gear Shaft Coupling With Middle Set is an improved type of gear coupling, gear coupling can be compared with the straight allows larger angular displacement, can improve the tooth contact conditions, and improve the ability to transfer torque, prolong the service life, with angular displacement along the contact state of gear width, consisting of inner gear and the same number of teeth of the flange half band coupling parts etc..
When WGT is connected with the middle sleeve drum gear coupling, the relative angular displacement of two shaft will occur when working. The relative periodic sliding of the inner and outer teeth will cause the relative sliding of the shaft, which will inevitably form the tooth wear and power consumption. Therefore, the gear coupling must work well and sealed. The toothed coupling has small radial size and large load capacity. It is usually used for shafting transmission under low speed and heavy load conditions. The high accuracy and dynamic balancing gear coupling can be used for high speed transmission.WGT Blackening Metal Flexible Gear Coupling Drum Shape For Industrial Equipment

WGT Drum Gear Coupling Unit:mm
Size Torque Bore Dia Length D D1 D2 D3 D4 B B1 H F C C2
Tn
N.m d1,d2 L I II
WGT1 800 12.14 32 122 115 98 88 60 58 50 75 30 30 -- --
16.18.19 42 20 14 --
20.22.24 52 10 4 --
25.28 62 3 3 18
30.32.35.38 82 3 3 12
40.42 112 3 3 12
WGT2 1400 22.24 52 150 145 118 108 77 68 52 80 30 20 4 --
25.28 62 10 3 --
30.32.35.38 82 3 3 16
40.42.45.48.50.55.56 112 3 3 16
WGT3 2800 22.24 52 170 165 140 125 90 80 54 80 30 33 7 --
25.28 62 23 3 --
30.32.35.38 82 3 3 16
40.42.45.48.50.55.56 112 3 3 16
60.63 142 3 3 16
WGT4 5000 30.32.35.38 82 200 195 160 145 112 90 58 100 30 13 3 --
40.42.45.48.50.55.56 112 3 3 17
60.63.65.70.71.75 142 3 3 17
80 172 3 3 17
WGT5 8000 30.32.35.38 82 225 215 180 168 128 100 63 100 30 23 3 --
40.42.45.48.50.55.56 112 3 3 19
60.63.65.70.71.75 142 3 3 19
80.85.90 172 3 3 19
WGT6 11200 32.35.38 82 245 230 200 185 145 112 67 100 30 35 5 --
40.42.45.48.50.55.56 112 5 5 --
60.63.65.70.71.75 142 5 5 20
80.85.90.95 172 5 5 20
100 212 5 5 20
WGT7 16000 32.35.38 82 272 265 230 210 160 122 74 120 30 45 5 --
40.42.45.48.50.55.56 112 15 5 --
60.63.65.70.71.75 142 5 5 20
80.85.90.95 172 5 5 20
100.110 212 5 5 20
WGT8 22400 55.56 112 290 272 245 225 176 136 81 120 30 29 5 --
60.63.65.70.71.75 142 5 5 34
80.85.90.96 172 5 5 20
100.110.120.125 212 5 5 38
WGT9 28000 65.70.71.75 142 315 305 265 245 190 140 88 155 30 5 5 28
80.85.90.95 172 5 5 28
100.110.120.125 212 5 5 28
130.140 252 5 5 28
WGT10 45000 75 142 355 340 300 280 225 165 98 155 30 28 5 --
80.85.90.95 172 5 5 38
100.110.120.125 212 5 5 28
130.140.150 252 5 5 28
160 302 5 5 28
WGT11 63000 85.90.95 172 412 385 345 325 256 180 112 175 40 15 8 --
100.110.120.125 212 8 8 32
130.140.150 252 8 8 32
160.170.180 302 8 8 32
WGT12 90000 120.125 212 440 435 375 360 288 210 125 205 40 8 8 45
130.140.150 252 8 8 32
160.170.180 302 8 8 32
190.200 352 8 8 32
WGT13 125000 145.150 252 490 480 425 400 320 235 136 205 50 8 8 38
160.170.180 302 8 8 32
190.200.220 352 8 8 32
WGT14 180000 160.170.180 302 545 540 462 440 362 265 158 240 50 10 8 32
190.200.220 352 10 8 32
240.250.260 410 10 8 10
WGT15 250000 160.170.180 302 580 -- 488 -- 400 280 -- 240 50 10 -- 43
190.200.220 352 10 -- 32
240.250.260 410 10 -- 10
270 470 10 -- 10
WGT16 315000 180 302 650 -- 560 -- 440 300 -- 240 50 12 -- 63
190.200.220 352 12 -- 32
240.250.260 410 12 -- 12
280.300 470 12 -- 12
WGT17 400000 200.220 352 690 -- 600 -- 460 325 -- 280 50 12 -- 48
240.250.260 410 12 -- 12
280.300.320 470 12 -- 12
WGT18 500000 220 352 750 -- 650 -- 510 350 -- 280 60 12 -- 73
240.250.260 410 12 -- 12
280.300.320 470 12 -- 12
340.360 550 12 -- 12
WGT19 630000 240.250.260 410 775 -- 690 -- 535 372 -- 350 60 12 -- 12
280.300.320 470 12 -- 12
340.360.380 550 12 -- 12
