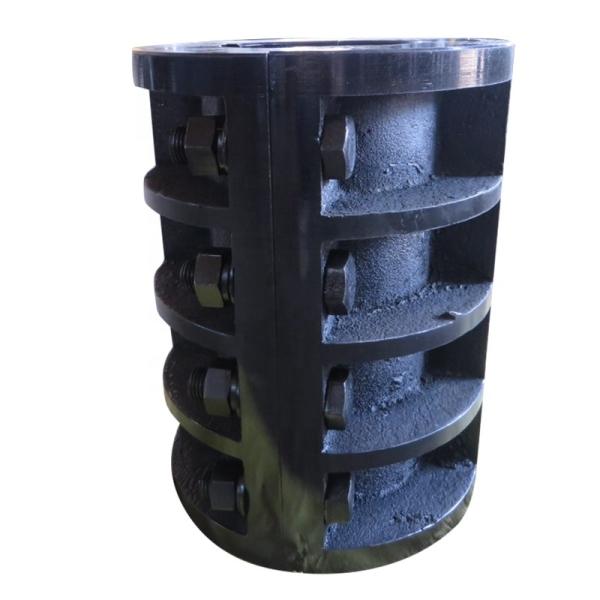

JQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking Device
JQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking Device
JQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking Device
JQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking Device
Specifications
Brand Name :
jude
Place of Origin :
cangzhou、china
Supply Ability :
80000 Set/Sets per Year
Certification :
CE、ISO
Model Number :
JQ
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company
Flexible or Rigid :
Rigid
Standard or Nonstandard :
Standard
Material :
Steel
Product name :
cast iron clamp Rigid shaft coupling with locking device
Shaft hole :
25-170
Dimensions :
200-710(mm)
Bore diameter :
170(mm)
Rate torque :
125-16000
Allowable speed :
3800-1000(r/m)
heat treatment :
High frequency quenching heat treatment
surface treatment :
Carburizing, blackening, electroplating, quenching.
Feature :
Simply
Application :
Industrial Equipment
Port :
TianJin
Description

High Quality Jq Type Cast Iron Clamp Rigid Shaft Coupling With Locking Device

advantage:
JQ type collet coupling is composed of two axially split collets, mainly with single slot and double slot, with key slot and without key slot, single slot clamping with single aperture and double aperture Type Rigid Coupling fits snugly on the shaft, providing a high torque grip without damaging the shaft surface. The double-slot rigid coupling is easy to disassemble and maintain without moving other parts. The screws of the double-slot rigid coupling are installed in the positive and negative directions, which can maintain dynamic balance. The raw materials are aluminum, carbon steel and stainless steel, with a variety of models and specifications, and can also be customized according to the special requirements of customers.
shortcoming:
The disadvantage of JQ type jacket coupling is that the alignment accuracy of the two shafts is low, the structure and shape are relatively complex, and the manufacturing and balance accuracy is low. 5m/s, balance check is required when the linear speed exceeds 5m/s. The shaft does not need to move axially during assembly and disassembly of JQ type collet coupling, so assembly and disassembly are very convenient. In order to improve the balance, the bolts should be installed in positive and reverse phases. Collet couplings do not have axial, radial and angular compensation properties.

Certification ISO9001:2018;SGS;TS16949
Quality

CNC machine, CNC Turning, CNC Milling, CNC center machine,

auto lathe machine, Wire-cutting Machine
, CNC Laser cutting machines, CNC bending machines,

CNC punching machines, CNC bending machines

CNT stamping machine, CNC/auto lathe machine,

Drilling machine, Hydraulic machine, Riveting machine,

Tapping machine, welding machine, Film attaching machine, etc.
Materials

Aluminum, Steel, SPCC, SGCC,SECC,

SPTE, Stainless steel, Brass, Copper,

Bronze, ABS, PC, PO, POM, Nylon, etc.
Surface finish

Anodized, Oxide, Plating, Brushing, Polishing, Blackened, Powder coating,

Sandblasting, Laser engraving Zn-plating, Ni-plating, Cr-plating, Tin-plating,

copper-plating, the wreath oxygen resin spraying, the heat disposing,

hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated,

blue-black zinc-plated, rust preventive oil, titanium alloy galvanized,

silver plating, plastic, electroplating, anodizing, etc
Inspection Equipment

CMM, Projection, Calipers, Micro caliper, Thread Micro caliper,

Pin gauge, Caliper gauge, Pass meter, Pass meter, etc.

JQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking DeviceJQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking DeviceJQ Type Cast Iron Clamp Rigid Shaft Coupling Standard With Locking Device
