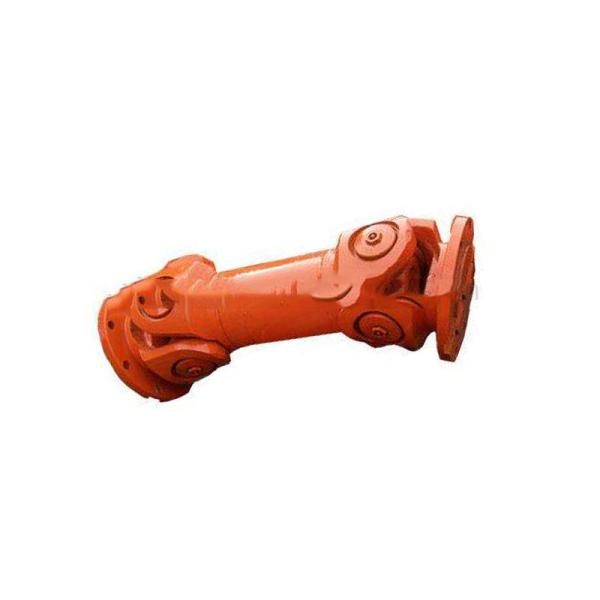

SWP D type (non-retractable short type) cross Cardan Shaft Coupling utilizes the characteristics of its mechanism, so that the two shafts are not on the same axis, and the connected two shafts can be continuously rotated under the condition of the included angle between the axes, and the ground transmission Torque and motion.

The common feature of Cardan Shaft Coupling is that the amount of angular compensation is large, and the angle between the two axes of different structural types of Cardan Shaft Coupling is different, generally between ≤5°-45°. The biggest feature of the Cardan Shaft Coupling is that it has a large angular compensation capacity, a compact structure, and a transmission. The magnitude and direction of the relative displacement of the two axes. When it is difficult to keep the two shafts in strict alignment after installation and adjustment, or when the two shafts will produce a large additional relative displacement during the working process, the flexible coupling should be selected. For example, when the radial displacement is large, the slider coupling can be selected, and the Cardan Shaft Coupling can be selected for the connection with large angular displacement or two intersecting shafts. Coupling performance and working environment.

Couplings that do not require lubrication, usually made of metal elements, are comparable to couplings that require lubrication, whose performance is susceptible to the degree of lubrication perfection and may pollute the environment. Couplings containing non-metallic components such as rubber are sensitive to temperature, corrosive media and strong light, and are prone to aging.

Large specification

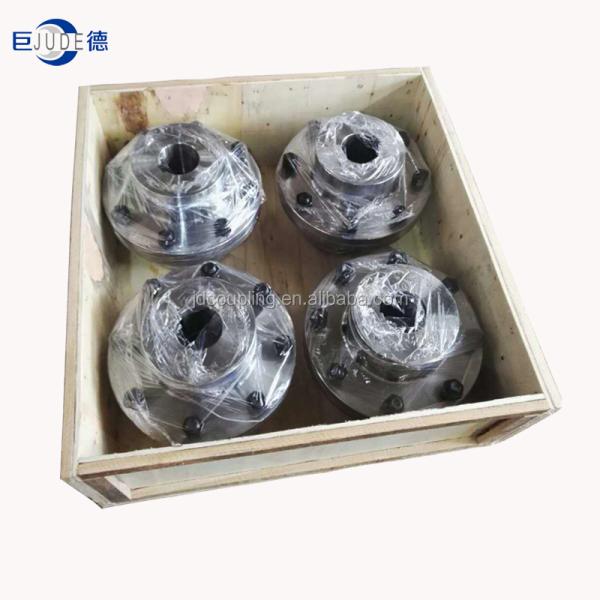

Packaging Details : Wooden Box Or Customized

Delivery Time : 10-15 Working Days

Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
