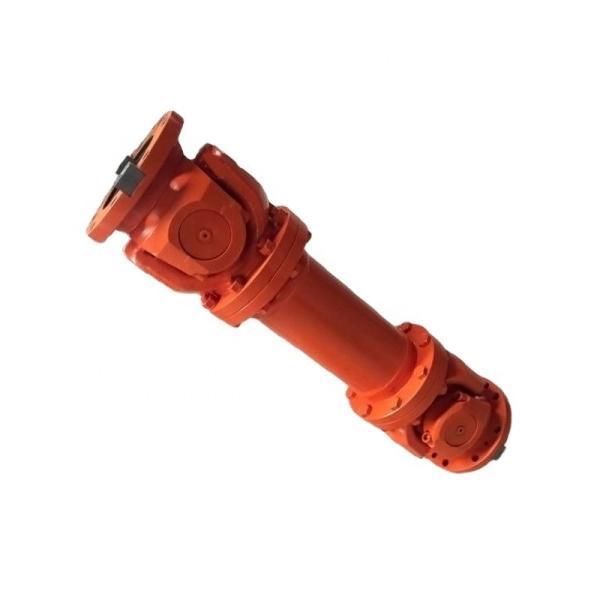

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
Specifications
Brand Name :
jude
Place of Origin :
cangzhou、china
Packaging Details :
Wooden Box Or Customized
Supply Ability :
1000 Set/Sets per Month
Price :
$40.00 - $2,500.00/Sets
Applicable Industries :
Manufacturing Plant
Structure :
Universal
Flexible or Rigid :
Flexible
Standard or Nonstandard :
Standard
Material :
Steel
Product name :
Cardan Shaft
Color :
Custom Requirement
Body Material :
45# Steel
MOQ :
1 Set
Port :
Tianjin
Certification :
CE、ISO
Description

SWC - BH Type Super Short Standard Telescopic Cardan Shaft Coupling

Product Description

SWP-B split bearing support cardan shaft is short type with length compensation.

SWP partition profile bearing the cross shaft universal coupling products: replacement of bearings for, SWP type cardan design bearing split shaft bolt, suitable for hoisting and conveying machinery and other heavy machinery, connecting two different axis transmission shaft, axis angle of A~F type not more than 10 degrees, the G type is not greater than 5 degrees.

Model Tactical diameter Nominal torque Fatique Axis rotation Stretch Lmin Size Rotary inertia Weight
D Tn torque β length mm kg.m2 kg
mm kN·m Tf (°) LS
kN·m mm D1 D2 D3 Lm n-d k t g Lmin Increase Lmin Increase
js11 H7 b 100mm 100mm
h9
SWC180BF 180 20 10 ≤25 100 810 155 105 114 110 8-17 17 5 24 7 0.267 0.007 80 2.8
SWC200BF 200 32 16 ≤15 110 860 170 120 127 135 8-17 19 5 28 8 0.505 0.013 109 3.6
SWC225BF 225 40 20 ≤15 140 920 196 135 152 120 8-17 20 5 32 9 0.788 0.0234 138 4.9
SWC250BF 250 63 31.5 ≤15 140 1035 218 150 168 140 8-19 25 6 40 12.5 1.445 0.0277 196 5.3
SWC285BF 285 90 45 ≤15 140 1190 245 170 194 160 8-21 27 7 40 15 2.873 0.051 295 6.3
SWC315BF 315 125 63 ≤15 140 1315 280 185 219 180 10-23 32 8 40 15 5.094 0.795 428 8
SWC350BF 350 180 90 ≤15 150 1410 310 210 267 194 10-23 35 8 50 16 9.195 0.2219 932 15
SWC390BF 390 250 125 ≤15 170 1590 345 235 267 215 10-25 40 8 70 18 16.62 0.2219 817 15
SWC440BF 440 355 180 ≤15 190 1875 390 255 325 260 16-28 42 10 80 20 28.24 0.4744 1290 21.7
SWC490BF 490 500 250 ≤15 190 1985 435 275 325 270 16-31 47 12 90 22.5 46.33 0.4744 1631 21.7
SWC550BF 550 710 355 ≤15 240 2300 492 320 426 305 16-31 50 12 100 22.5 86.98 1.357 2567 34
SWC620BF 620 1000 500 ≤15 240 2500 555 380 426 340 16-38 55 12 100 25 147.5 1.375 3267 34

Structure & Parameter Of SWC - BH Standard Telescopic Welded Universal Joint Coupling

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
Note: 1.Tf is the torque allowed under the alternating load according to the fatigue strength.
2.Lmin is the minimum length after shortening.
3.L is the installation length and is determined as required
Connection of SWC type cross shaft universal joint coupling and its parts
The SWC type universal joint coupling connects the flanges at both ends to other fittings through high strength bolts and nuts. The large size SWC universal joint coupling is connected to the other parts by the flange of the end tooth, high strength bolt and nut.
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
Connection size and bolt pretightening torque of SWC type universal joint coupling
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
End tooth profile
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
End tooth profile and bolt pretightening torque
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

Related Products

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

Application

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.

Q4:How long is your warranty?
A: Our Warranty is 12 month.

Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing

Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
