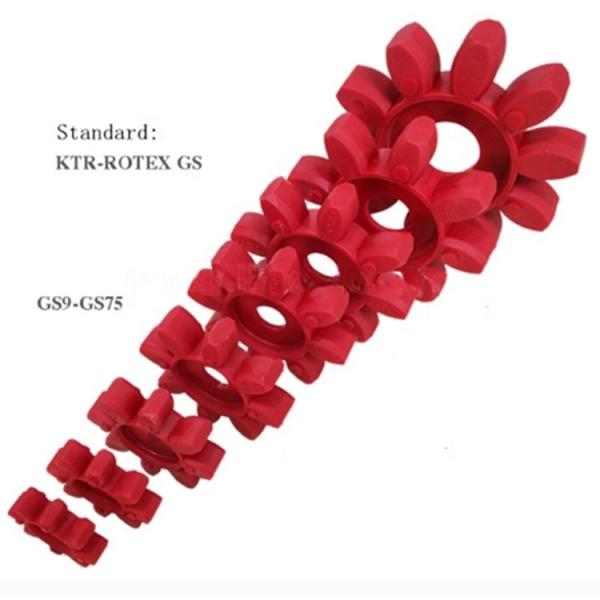

XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider
Specifications
Brand Name :
jude
Model Number :
GE Rotex GS
Certification :
CE、ISO
Place of Origin :
cangzhou、china
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
1000 Set/Sets per Month
Packaging Details :
Wooden Box Or Customized
Standard or Nonstandard :
Standard
Flexible or Rigid :
Flexible
Material :
TPU
Product name :
92A 98 A spider element insert of XL GE Rotex Flexible jaw coupling
Body Material :
TPU
Application :
machinery, textile, mining, food, wine, electric vehicles and other industries
Description

92A 98 A Spider Element Insert Of XL GE Rotex Flexible Jaw Coupling, The Same Type Of Rotex Coupling 98 A Spider

Factory Price Abrasion Resistant Polyurethane GR Spider for Flexible Coupling

Features


● Soft Spider (85 Shore A )
● Greatest dampening characteristics
● Best for angular and parallel misalignment
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F

● 92 Shore A-Yellow

● Good all around characteristics
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F

● 98 Shore A-Red (Hard Spider)

● Greatest torsional stiffness
● Highest torque capabilities
● Most commonly used spider
● Maximum speed: 8,000 RPM
● Temperature Range: -10°F to 180°F

XL GE Rotex Flexible Coupling Parts 92A 98A Rubber Coupling Spider

USAGE
This product is apply to machanical shaft coupling,buffered act on the jiont of the transmission shaft.
PERFORMANCE
Material:PU
Torque range:22.4～2500NM
Wear tear:<0.05cm3/1.61km
Hardness:98A
Temperature:-40～100℃
DETAILED SIZE
Type Materail OD ID Thickness Thickness Spider
A D F G
GR14 PU 30 10.5 12 10 4
GR19 PU 40 18 14.5 12 6
GR24 PU 54 26 15.2 14 8
GR28 PU 65 30 19 15 8
GR38 PU 80 38 22 18 8
GR42 PU 95 46 24 20 8
GR48 PU 104 51 25.5 20.5 8
GR55 PU 120 60 27 22 8
GR65 PU 135 68 32 26 8
GR75 PU 161 81 37 30 10
GR90 PU 199 100 42 34 10
GR100 PU 225 113 — 38 10
GR110 PU 254 128 — 42.5 10
GR125 PU 293 150 — 46.5 10
GR140 PU 320 165 — 50 10


Standard size for polyurethane coupling Spider we provide :


GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

Standard size for Rubber coupling Spider :


Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280


L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J

Special sizes available according to the your specific drawings
