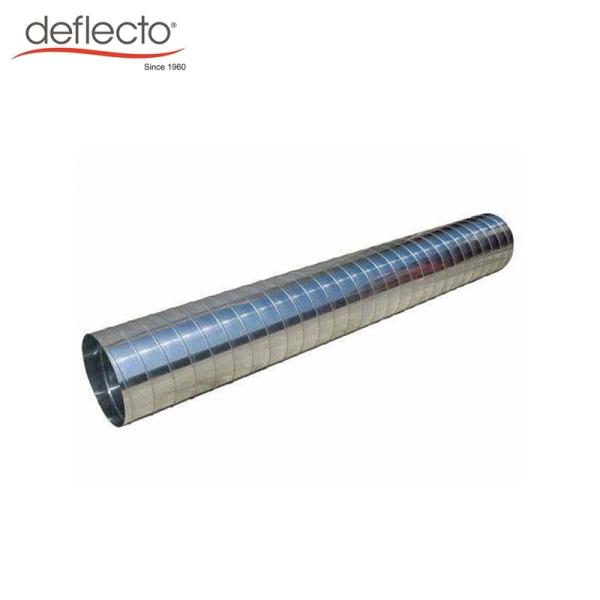

20 Inch Rigid Air Duct 0.6 Mm Thickness Galvanized Steel Spiral Duct
20 Inch Rigid Air Duct 0.6 Mm Thickness Galvanized Steel Spiral Duct
Specifications
Brand Name :
Deflecto or OEM
Model Number :
GSD500300
Certification :
UL, ISO
Place of Origin :
China
MOQ :
500 Units
Price :
Ask for Details
Supply Ability :
50000 Meter/Meters per Week.
Delivery Time :
About 20 days after receiving down payment.
Packaging Details :
Bulk Packeage
Product Name :
Galvanized Steel Spiral Rigid Air Duct 300MM
Material :
Galvanized Steel
Diameter :
20'', 500mm
Length :
3 Meters 10 Ft
Thickness :
0.6 mm
Usage :
HVAC Air Venting
Description

Galvanized Steel Round Spiral Duct Air Vent For HVAC System 500MM x 3 Meters Length

Product Details:

· Spiral seam adopts Double Seam Butt joint, between the two seams, having three strengthening reinforcement grooves which more strengthen the strength of spiral duct.
· Utilizing high speed automatic cutting equipment , no burr, pipe diameter accurately conform to the standard of SMACNA.
· The standard length is 3m.

. The inner and outer duct is made of galvanized steel sheet or stainless steel sheet. The middle insulation material adopts carbonating to deal the longer or shorter fiberglass.
· The inner and outer duct all can select the standard or strengthening type spiral duct.
· Having good sound-absorbing effect.

Diameter

500 MM (20 Inch)
Length

3 Meters 10 Ft

20 Inch Rigid Air Duct 0.6 Mm Thickness Galvanized Steel Spiral Duct

Application:

1.Air conditioning (including high pressure and high velocity air distribution systems)

2.Ventilation (industrial & tunnel)

3.Warm air heating

4.Fume and dust extraction

5.Pneumatic conveying

6.Exhaust and air intake pipes

7.Humidification

20 Inch Rigid Air Duct 0.6 Mm Thickness Galvanized Steel Spiral Duct
