1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
Description

1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable

Production Description:

Application:

Our blue bulk 1000 foot solid Cat6 Ethernet cable comes in an easy to use pull box and is ideal for the person looking to make longer permanent network runs during installation/expansion of network infrastructure.

Cat6 Cable is used in network applications and have been designed specifically for Gigabit Ethernet applications. They perform at high-data transfer rates, and work with ATM and gigabit speed products.

This particular cable is a blue UTP (Unshielded Twisted Pair) solid cable. The individual conductors are 23 AWG (American wire gauge) solid pure copper. Pure copper conductors provide the best signal possible. Cat6 cable includes a spline to help ensure separation between the pairs which limits cross talk. Our Cat6 Ethernet cable exceeds the EIA/TIA-568-C standard.

Electrical Characteristics:

Conductor Resistance Max. 9.38 O /100m
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max. 330 pF/100m
Propagation Delay @ 1,10,100,250MHz Max. 570, 545, 538 & 536 ns/100 m
Propagation Delay Skew 1 – 250 MHz Max. 45 ns/100 m

Features:

23 AWG Solid Cable

Fluke Past Test Cable

Plenum Jacket (CMP Rated)

550MHz Cable Performance

ETL Listed RoHS Compliant

Solid Pure Copper Conductor

4 Pair Un-shielded Twisted Pair (UTP) cable

EZ pull out, foot marked and easy to use a box

Meet and exceed ISO/IEC/RoHS standards and specifications

Colour Code:

Pair 1 : White/Blue -Blue;
Pair 2 : White/Orange -Orange;
Pair 3 : White/Green -Green;
Pair 4 : White/Brown -Brown

Cable Diameter , Standard Length & Packing:

Cable Diameter : 6.35 mm (Max.)

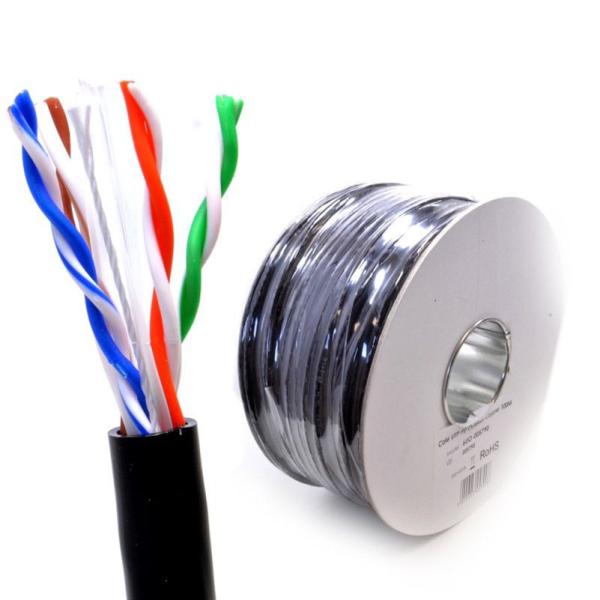

Available Packaging : 305 mtr Pull box Or 500 / 1000 mtr spool
Available Colour : Grey or As Per Customer Requirement


Construction

1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable 1. Conductor material: Solid bare copper 0.57mm (23 AWG)

2. Insulation material:

HDPE (High density Polyethylene)
3. Outer sheath material: PVC
4. rip cord: Nylon
5.Separator:

cross filler

Packaging

Approx.Weight Package box Dimension(cm) Packages per 20 ft container
14.2 kg 305m/roll pull box 42 x 24 x 42

800 box

6. Product Image

1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable

1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable

Company Contact Information:

OUR SERVICE 1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables;
3) Medium and High Voltage Power Cables;
4) Aerial Bundled Cables;
5) Mineral Insulated Fire Resistant Cables
6) Control Cables, Instrument Cables, Communication Cables etc.

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
