1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
Specifications
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
Description

1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking

Production Description:

Application:

These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications and compatible with all known connection systems. Ideal for high performance workstation applications including voice/ data systems, digital video, broadband and voice over internet protocol, etc.

Electrical Characteristics:

Conductor Resistance Max. 9.38 O /100m
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max. 330 pF/100m
Propagation Delay @ 1,10,100,250MHz Max. 570, 545, 538 & 536 ns/100 m
Propagation Delay Skew 1 – 250 MHz Max. 45 ns/100 m

Features:

23 AWG Solid Cable

Fluke Past Test Cable

Plenum Jacket (CMP Rated)

550MHz Cable Performance

ETL Listed RoHS Compliant

Solid Pure Copper Conductor

4 Pair Un-shielded Twisted Pair (UTP) cable

EZ pull out, foot marked and easy to use a box

Meet and exceed ISO/IEC/RoHS standards and specifications

Colour Code:

Pair 1 : White/Blue -Blue;
Pair 2 : White/Orange -Orange;
Pair 3 : White/Green -Green;
Pair 4 : White/Brown -Brown

Cable Diameter , Standard Length & Packing:

Cable Diameter : 6.35 mm (Max.)
Available Packaging : 305 mtr Pull box Or 500 / 1000 mtr spool
Available Colour : Grey or As Per Customer Requirement


Construction

1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking 1. Conductor material: Solid bare copper 0.57mm (23 AWG)

2. Insulation material:

HDPE (High density Polyethylene)
3. Outer sheath material: PVC
4. rip cord: Nylon
5.Separator:

cross filler

Packaging

Approx.Weight Package box Dimension(cm) Packages per 20 ft container
14.2 kg 305m/roll pull box 42 x 24 x 42

800 box

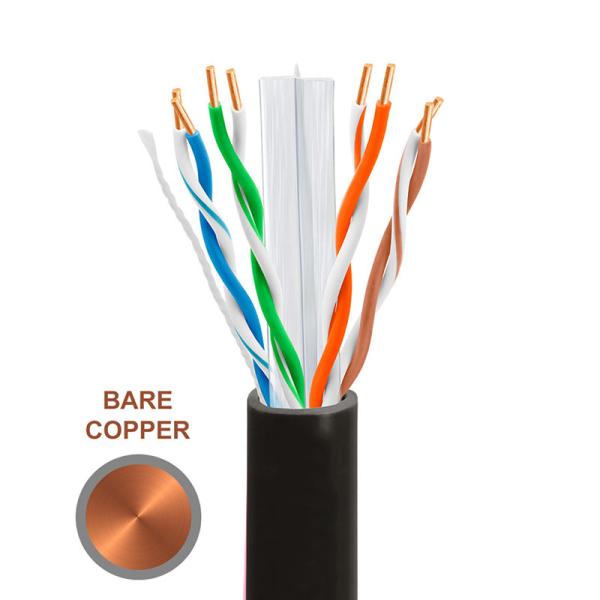

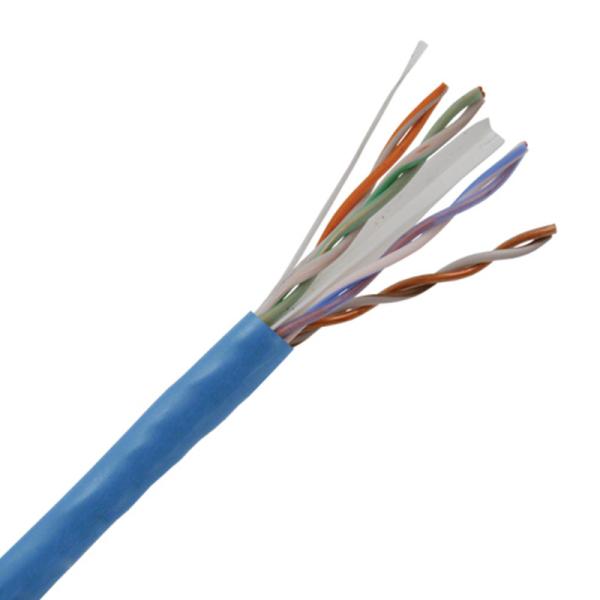

6. Product Image

1000FT 23AWG Indoor CAT6 UTP Bulk Ethernet Cable for Networking
