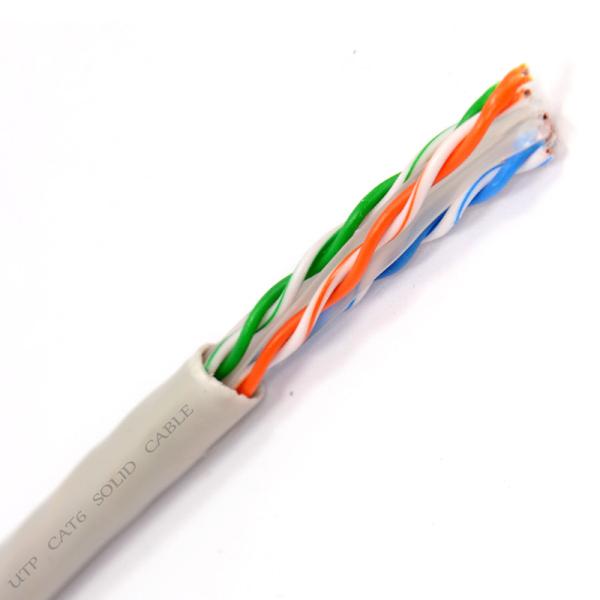

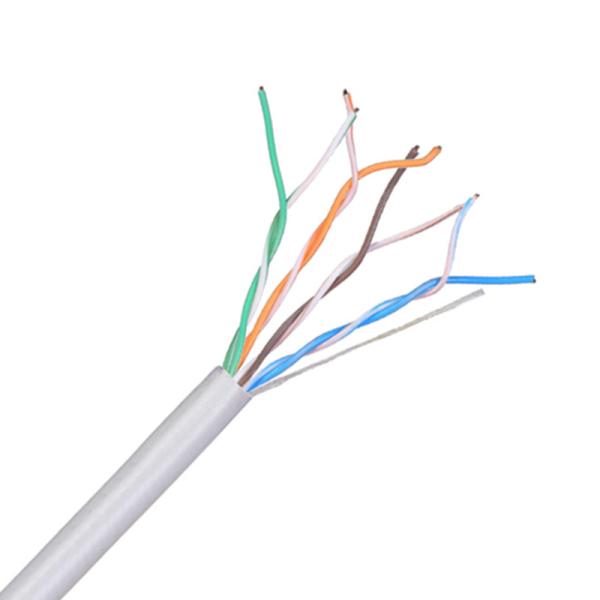

1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
Description

1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable

Production Description:

Application

• IEEE 802.3 1000Base-T, 100Base-Tx 10Base-T, PoE+

• ANSI/TIA 854: 1000Base-TX

• CDDI, Token Ring, ATM

• Digital Video

• Broadband and Baseband Analog Video

DESCRIPTION

• 23 AWG 4 Pair F/UTP Category 6 cable tested to 550Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available in wood reel for easier installation.

STANDARD COMPLIANCES

• ANSI/TIA 568-C.2

• ANSI/TIA 862 (Building Automation)

• ISO/IEC 11801 Ed. 2.0 (Class EI) • ICEA 8-102-700 (Category 6 or 5E)

• REACH Compliant

• CPR Compliant (Fully Complies to 305/2011 & EN 50575:2014-09)

• RoHS Compliant Directive 2002/95/EG

FEATURES AND BENEFITS

• Cross web filler for enhanced performance

• Rugged jacket for outside plant applications

• UV resistant polyethylene jacket

• Water blocking tape

• Sequential footage markings

• Verified by third-party for guaranteed performance

ELECTRICAL PERFORMANCE

1.0-250.0MHz Impedance (ohms) 100 ± 15
1.0-250.0MHz Delay Skew (ns/100m) <=45
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20oC (ohms/km) 95
Resistance Unbalance (%) <=5

PHYSICAL PROPERTIES

Conductor Solid Bare Copper
AWG 23
Conductor Dia. (+/-0.005mm) 0.57
Insulation HDPE
Outer Dia.(±0.20mm) 7.90

MECHANICAL CHARACTERISTICS

Test Object Jacket
Test Material LLDPE
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=300
Aging Condition (oCxhrs) 100x168
After Tensile Strength (Mpa) >=75% of unaged
Aging Elongation (%) >=75% of unaged
Cold Bend(-40±2oCx4hrs) No crack

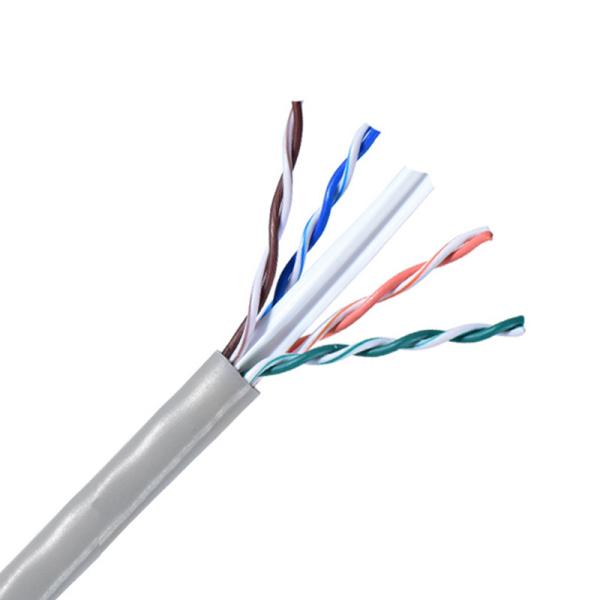

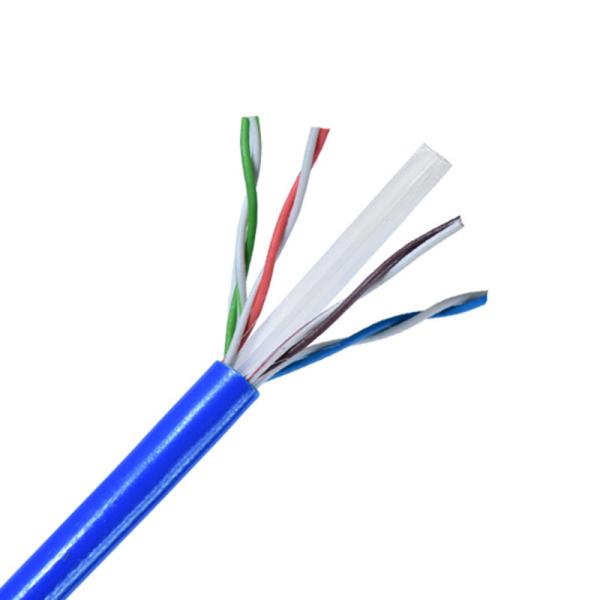

Construction

1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable 1. Conductor material: Solid bare copper 0.57mm (23 AWG)

2. Insulation material:

HDPE (High density Polyethylene)
3. Outer sheath material: PVC
4. rip cord: Nylon
5.Separator:

cross filler

Packaging

Approx.Weight Package box Dimension(cm) Packages per 20 ft container
14.2 kg 305m/roll pull box 42 x 24 x 42

800 box

6. Product Image

1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable

Company Contact Information:

OUR SERVICE 1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables;
3) Medium and High Voltage Power Cables;
4) Aerial Bundled Cables;
5) Mineral Insulated Fire Resistant Cables
6) Control Cables, Instrument Cables, Communication Cables etc.

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
