Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Specifications
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
CE ROHS ISO9001
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer's request.
Conductor :
23AWG 0.58mm bare copper
Core :
4 Twist Pairs
Type :
UTP CAT6A
Insulation Material :
HDPE
Cross separator :
plastic
Sheath Material :
PE LSZH PVC
Sheath Color :
Blue / Grey/Orange or customized
Cable length :
1000Ft/305Meter
Function :
Data Transfer
Description

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Production Description:

1. Production Parameters:

Item UTP Cat 6a
Categoty Cat 6a cable
Structure Type UTP
Conductor Oxygen free copper
Pair 4 pairs twisted
Awg 23 awg
Diameter 0.58mm
Insulation Material Color-coded PE
Cross Separator Material Plastic
Outer Jacket Material PVC/PE/RSZH
Rip Cord as your need
Reference Standard Category 6a ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -10°to +70°
Supports Transmission Digital and analogue voice, data and video signal
Certificate CE pass fluke

2. Core Identification

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

3. Production Features

  • Category 6a, 8P/8C (RJ45) Plug, Gold Plated Contact

  • Cable OD(Overall Dimension) is 6.8mm, Blue color

  • Transmitting data at speeds of up to 10Gbase-T

  • Cable Length = 6.1 Meters (approximately 20ft)

4. Electric Requirement (Cable Length / 100m)

Characteristic Impedence(Zo) 85~115Ω (1~500MHz)
DC.Resistance Capacitance Unbalance 2%
Pair-To-Ground Capacitance Unbalance 330 pF / 100m Max
Conductor Resistance 7.32Ω / 100m 20℃ Max
Mutual Capacitance 5600 pF / 100m Maximum
Spark Test 2.5KV
Nomianal Velocity Of Propagation(N.V.P) 74%

5. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

6. Tabular data

Construction

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables 1. Conductor material:

Solid bare copper

0.58mm
2. Insulation material: HDPE
3. sheath material: PVC
4. Cross Separator Environment protection PE
5. Rip cord: Nylon

Packaging

Approx.Weight Package Package Dimension(cm) Outer packing
13.8 kg 305 m per box 42 x 42 x 24

Carton box

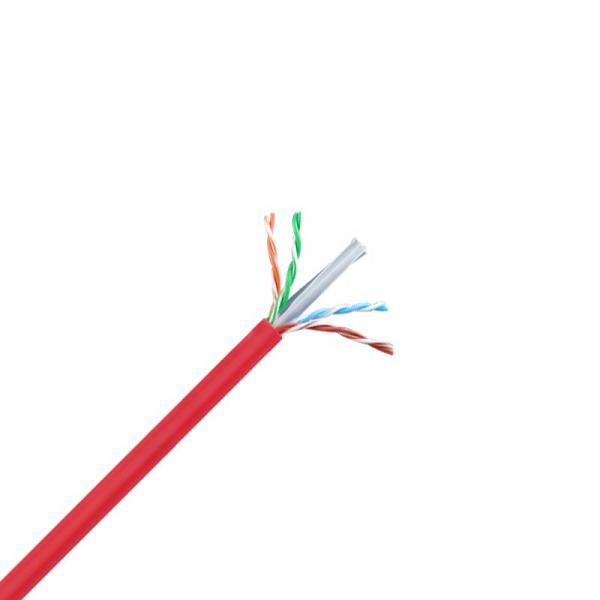

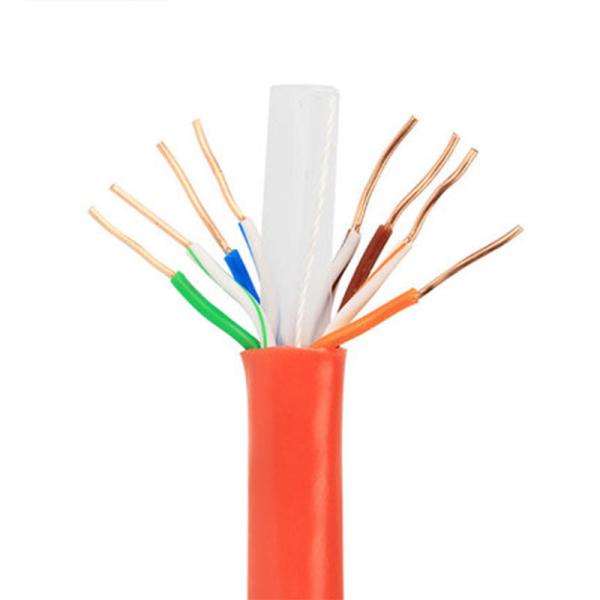

7. Product Image

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables
Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Product Package

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Fluke Test Report

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Product compare

Jinhuanyu product other products

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

8. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

9. Company information

Company Contact Information:

OUR SERVICE Solid copper conductor 4 pair twisted HDPE insulated PVC sheathed network cables Cat 6a UTP lan cables

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: lynnzeng@sz-hy.cn

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
