75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor
Specifications
Brand Name :
JHY
Model Number :
RG59
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
500m
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-15day
Packaging Details :
305m/roll
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Foam PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75 ohm
Rated voltage :
30V
Description

75ohm CCTV CATV RG59 Cables RF Cable AM braiding 20AWG Solid OFC conductor

Production Description:

Description:

RG6 coaxial cable;

Meets GB/T14864-1993 or JIS C 3501;CE, RoHS compliant;

Impedance: 75Ω

Insulation resistance: ≥5000MΩ/km

Operating temperature: -20~70°C

Usage: mainly uses for Closed Circuit Television Monitoring System (CCTV) application, public antenna, video/radio, as well as uses for security monitoring system & television engineering.

Structure details:

Conductor Material: solid bare copper

(Other options: stranded CCS, CU, BC)

Conductor Diameter: 1.02mm

Insulation: 4.51mm FPE/SPE

Shield 1: aluminum foil 100% coverage

Shield 2: braid (material & coverage optional)

Jacket: PVC, LSZH

Overall diameter: 6.91mm

Color: black, white.

BASIC CONSTRUCTION
STANDARD SHIELD
CONDUCTOR
MATERIAL
BC/CCS
NOm.Dia.
18AWG
DIELECTRIC
MATERIAL
Foam PE
NOm.Dia.
4.57mm
SHIELD
MATERIAL
Al foil+Al braiding
COVERAGE
40%-95%
JACKET
MATERIAL
PVC/PE
NOm.Thick.
0.80mm
NOm.Dia.
6.91mm

BASIC CHARACTERISTICS
Nominal Impedance(Ω)
75
Nominal Velocity of Propagation(%)
85
Nominal Capacitance (pF/m)
50
Sparker Test (VAC)
4000
SRL(dB)
20
20
Attenuation
[@68°F(20℃)]
Frequency(MHz)
Maximum(dB/100ft)
Maximum(dB/100m)
5
0.58
1.90
55
1.60
5.25
187
2.85
9.35
300
3.55
11.64
450
4.40
14.43
600
5.10
16.73
750
5.65
18.54
865
6.10
20.01
1000
6.55
21.49
1200
7.98
26.16
1450
8.46
27.73
1800
9.5
31.15
2200
9.73
31.92
3000
11.40
37.50

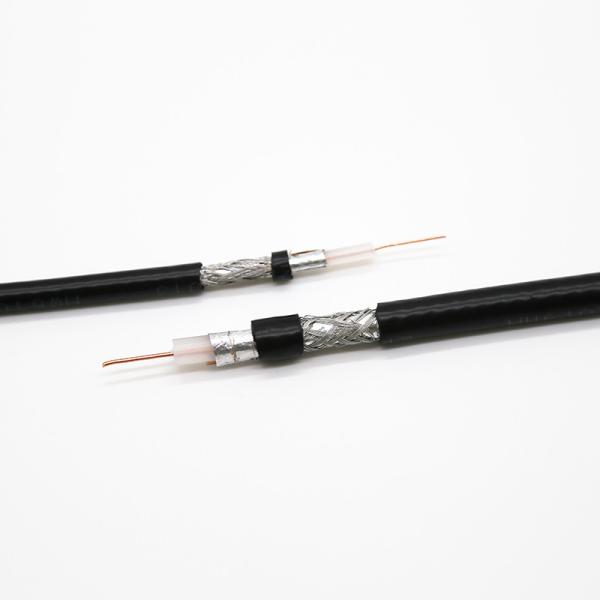

5. Product Image:

75ohm RG6 Flexible Coaxial Cable AM Braiding 18AWG Solid OFC Conductor

Company Information:

OUR ADVANTAGES

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Any further information needed please contact us.
