75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables
Specifications
Brand Name :
JHY
Model Number :
RG59
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
500m
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-15day
Packaging Details :
305m/roll
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Solid PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75 ohm
Rated voltage :
30V
Description

Coaxial RF Cable AM/TC/OFC braiding Solid OFC conductor 75ohm for CCTV CATV RG59 Cables

Production Description:

Description:

RG59 coaxial cable;

Meets GB/T14864-1993 or JIS C 3501;CE, RoHS compliant;

Impedance: 75Ω

Insulation resistance: ≥5000MΩ/km

Operating temperature: -20~70°C

Usage: mainly uses for Closed Circuit Television Monitoring System (CCTV) application, public antenna, video/radio, as well as uses for security monitoring system & television engineering.

Structure details:

Conductor Material: solid bare copper

(Other options: stranded CCS, CU, BC)

Conductor Diameter: 0.8mm, 14/0.15mm, 28/0.12mm

Insulation: 3.67mm FPE/SPE

Shield 1: aluminum foil 100% coverage

Shield 2: braid (material & coverage optional)

Jacket: PVC, LSZH

Overall diameter: 6.1mm

Color: black, white.

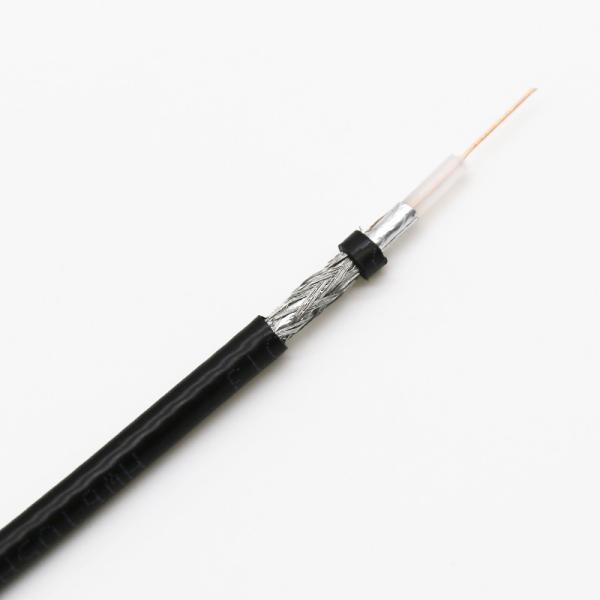

5. Product Image:

75ohm Coaxial RF Cable AM/TC/OFC Braiding Solid OFC Conductor For CCTV CATV RG59 Cables

Company Information:

OUR ADVANTAGES

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Any further information needed please contact us.
