2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket
Specifications
Brand Name :
JHY CABLE
Model Number :
Fire alarm cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
10000M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
100m/Roll
Application :
Cabling System
Type :
Shielded
Conductor :
Copper
Jacket :
LSZH
MOQ :
10000M
Description

2C/18 AWG Red FPLR Security/Fire Alarm Cable, Unshielded, Solid Bare Copper

Production Description:

Applications:

Cables symmetrical,twisted pair,with single copper conductor cross-section from 0.2 to 2.5mm2,with the isolation of fire-resistant silicone rubber sheathed in PVC low flammability with low smoke and gas evolution.The shell is orange.

Designed for group use,fixed installations in fire protection systems,including fire alarm systems,warning systems and evacuation,automatic fire extinguishing systems,smoke protection systems,as well as in other important life-support systems,which should keep working in a fire,used indoors and outdoors.

Features:

n Fire detection and fire alarm systems for buildings

n Voice alarm systems

n Emergency voice communication.

n Emergency and escape lighting

n Other essential service control circuits for standard fire resistance.

Tabular data

Part No. Conductor Dia(±5%)mm Copper W (kg/km) Cable W (kg/km)
JHY39 2x1.00mm2 5.8 23 51
JHY40 3x1.00mm2 6 32 65
JHY41 4x1.00mm2 6.6 41 81
JHY42 2x1.50mm2 6.65 33 70
JHY43 3x1.50mm2 6.75 46 90
JHY44 4x1.50mm2 7.6 59 110
JHY45 2x2.50mm2 7.8 50 100
JHY46 3x2.50mm2 8.25 72 135
JHY47 4x2.50mm2 9.1 95 165

Construction

2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket 1. Conductor material: Bare Copper
2. Insulation material: low smoke PVC
3. Jacket material: low smoke PVC
4.Shield material:

unshielded

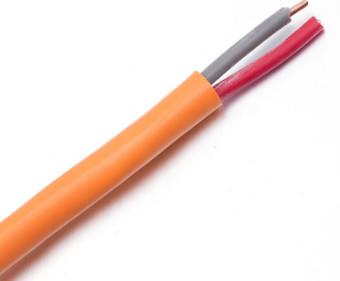

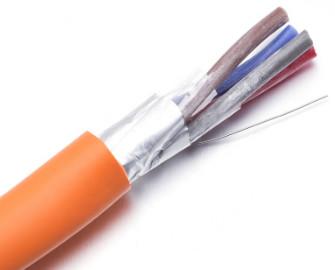

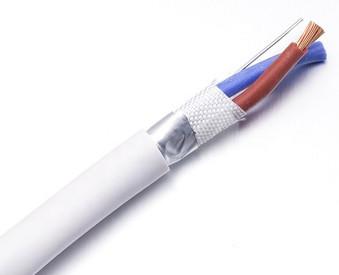

Product Image

2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket

2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket

Company Contact Information:

OUR SERVICE 2c 1.5mm Shielded Fire Alarm Cable LPCB BS6387 PH120 Standard LSZH Jacket

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team
