Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor
Specifications
Brand Name :
JHY CABLE
Model Number :
telephone cable
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 kilometer/ day
Delivery Time :
7-10working days
Packaging Details :
100 meters per roll or as request.
Conductor :
Plain annealed copper wire
Core :
2 cores
Insulation :
PE or HDPE
Jacket :
PVC or PE
Package :
200 meters/roll
Conductor diameter :
0.40mm/0.5mm
Operating Temperature :
-10℃-70℃
Type :
Cat 3
Rated Voltage :
30V
Color :
white or as required
Application :
Telephone installation project for office,family,hotel
Description

HBYV indoor 2Cores 0.4mm/0.5mm flat Telephone Cable

Production Description:

Brand Name JHY CABLE
Product Name HBYV indoor 2Cores 0.4mm/0.5mm flat Telephone Cable
Conductor Material solid bare copper
Core 2cores
Insulation /Jacket PVC
Insulation Colour Blue&white,brown&white,oranage&white,green&white
Working Temperature -10 to 70 ℃
Conductor Diameter(mm) 2*0.4,2*0.5
Payment Terms T/T,L/C
MOQ 1000m
OEM order yes

1. Production Application

1.These cables are used for the connection between floor cabling system in the telephone communication cabling system and the user’s telephone outlet.

2.Transmitting audio frequency signals,analog signals up to 150kHz or digital signals up to 2048kbits/s. The product is suitable for transmitting system of long-distance optical network cell and subscriber, or subsystem abd connection between floor and floor in integrated wiring system of buildings. Transmitting frequency(Max.):30MHz or 100MHz.

2. Features

1.Fast and Convenient Connection

2.The Perfect Combination of the High Quality Cat5e Cable and RJ45 Connetor

3.Multi-Strands Conductor Insures the Excellent Reliability and Stability.

4.Color in Grey, Blue, Yellow, Red or as per Your Requirements

3. Tabular data

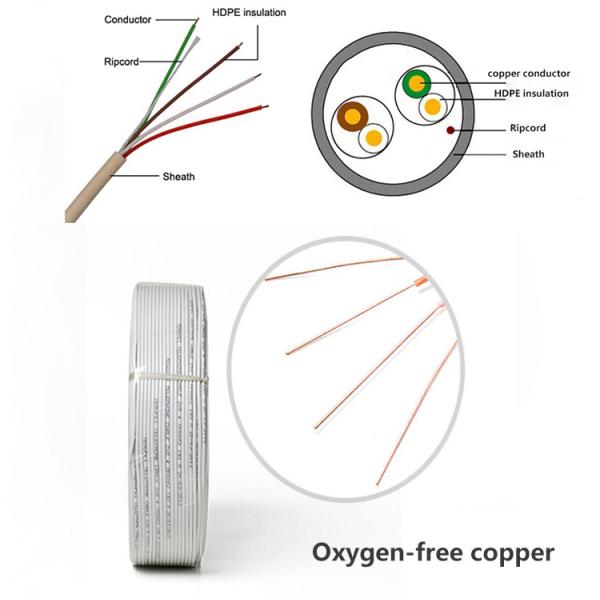

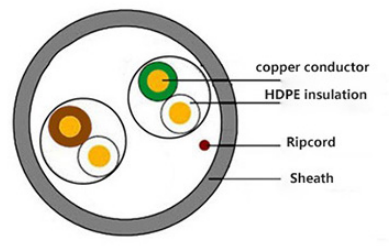

Construction

Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor 1. Conductor material: Solid bare copper 0.50mm
2. Insulation material: HDPE (High density Polyethylene)
3. Outer sheath material: PVC
4. Drain Wire: Tinned Copper
5. Rip cord: Nylon

Packaging

Approx.Weight Package Package Dimension(cm) Outer packing
2.82 kg 200 m per roll 20 x 20 x 8

Carton box

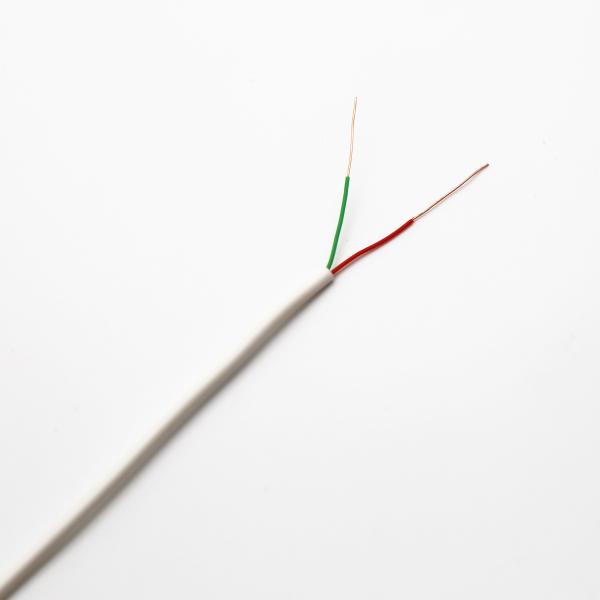

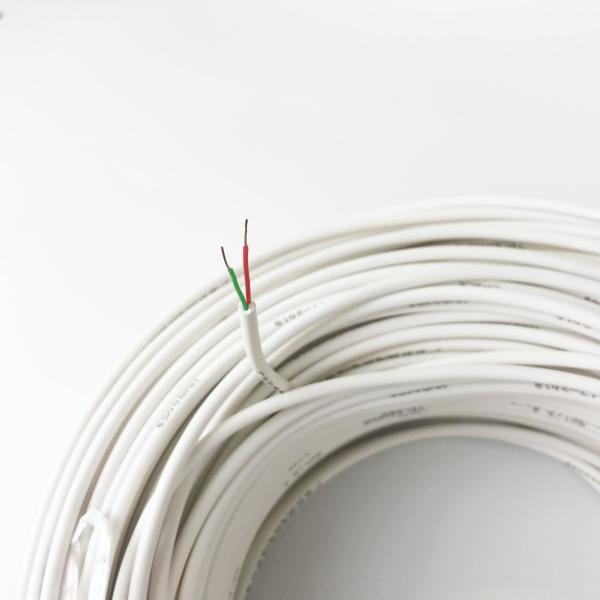

4. Product Image

Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor

5.Company information

Company Contact Information:

OUR SERVICE Flat 2 Cores Indoor Telephone Cable HBYV Indoor 0.4mm/0.5mm Copper Conductor

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
