Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
coaxial cable
Certification :
CE/RoHS
Place of Origin :
SHENZHEN CHINA
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
7~10 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Conductor :
solid bare copper
No.of conductor :
1
Dielectric :
Foam PE
Material of shield :
ALfoil+braiding
Braiding coverage :
40%, 60%, 90%,100%or customized
Jacket material :
PVC,PE
Usage :
CATV
Description

Bare copper conductor SYWV75-5 durable in use coaxial for CCTV camera cable

Production Description:

1. Specifications

  • Conductor: solid copper wire, 0.8mm-1.66mm
  • Insulation: foam PE
  • Shield: AL foil + tinned copper wire braiding
  • Jacket: PVC/ PE

2. Product Technical Parameter

Model

Conductor

(No./mm)

 Speciality impedance Nominal Attenuation
100MHz 400MHz 400MHz
RG-58 0.81 50±2 15.1 30.8 50.2
RG-6 1.02 75±2 6.4 12 21.5
RG-59 0.81 75±2 9.3 18 27.8
RG-11 1.63 75±2 4.3 8.4 14.7

3. Feature

  • Fast and reliable connection
  • Durable and reasonbale design of the structure realizes the high performance
  • Wide frequency range
  • Fine shields protect the data transmission and reduce the interference
  • New design of the jacket shows the sense of technology and smartness
  • Jacket color in black, white or as your requirement

4. Application

it uses for connecting cable or inner wiring for public Antenna,video/radio,closed circuit television monitoring system,conduction system and Unidirectional control system or high-frequency instrument .

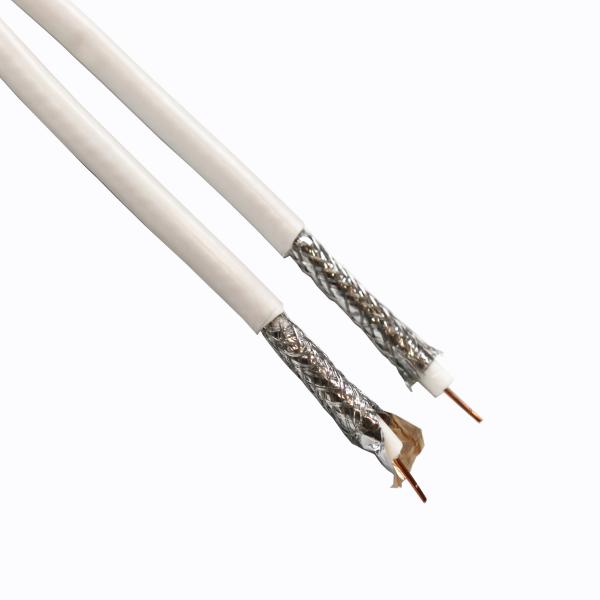

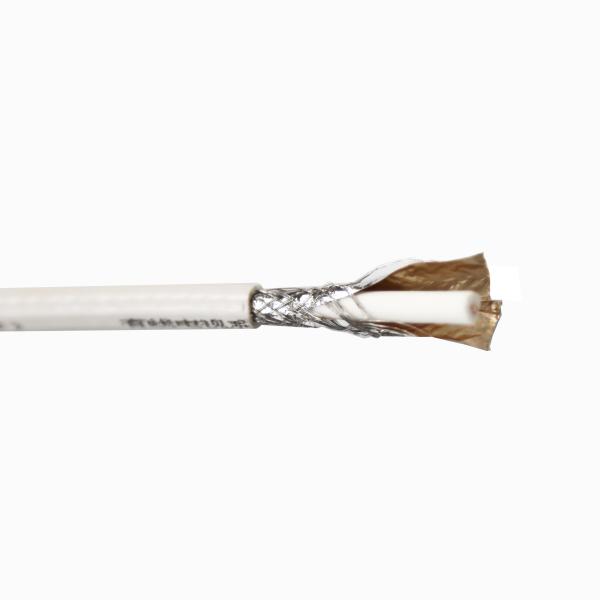

5. Product Image

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

Product Advantage

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

Product Package

Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

6. Product standard

GY/T 135, GB/T 14864, GY/T 135, BS EN 50117

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE Durable Coaxial Bare Copper Conductor Cable , SYWV75-5 CCTV Camera Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
