3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable
Specifications
Brand Name :
JHY
Model Number :
RG59
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
500m
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-15day
Packaging Details :
305m/roll
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Foam PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75 ohm
Rated voltage :
30V
Description

3c-2v Coaxial Cable 75 Ohm SYV-75-3 RG6 rj6 5C2V 5DFB Coaxial Cable

Production Description:

Description:

RG6 coaxial cable;

Meets GB/T14864-1993 or JIS C 3501;CE, RoHS compliant;

Impedance: 75Ω

Insulation resistance: ≥5000MΩ/km

Operating temperature: -20~70°C

Usage: mainly uses for Closed Circuit Television Monitoring System (CCTV) application, public antenna, video/radio, as well as uses for security monitoring system & television engineering.

Structure details:

Conductor Material: solid bare copper

(Other options: stranded CCS, CU, BC)

Conductor Diameter: 1.02mm

Insulation: 4.51mm FPE/SPE

Shield 1: aluminum foil 100% coverage

Shield 2: braid (material & coverage optional)

Jacket: PVC, LSZH

Overall diameter: 6.91mm

Color: black, white.

Procuct Construction STANDARD SHIELD TRI-SHIELD QUAD-SHIELD

CONDUCTOR

 MATERIAL BC/CCS BC/CCS BC/CCS
Nom.Dia. 18AWG 18AWG 18AWG

DIELECTRIC

 MATERIAL Foam PE Foam PE Foam PE
Nom.Dia. 4.57mm 4.57mm 4.57mm

SHIELD

 MATERIAL Al Foil+Al Braiding Al Foil+Al Braiding+Al Foil (Al Foil+Al Braiding)*2
COVERAGE 40%-95% 40%-95% 40%-60%

JACKET

 MATERIAL PVC/PE PVC/PE PVC/PE
Nom.Thick. 0.80mm 0.80mm 0.86mm
Nom.Dia 6.91mm 7.06mm 7.62mm

MESSENGER

 MATERIAL Galvanized steel wire
Nom.Dia. 1.30mm 1.30mm 1.30mm

Nominal Impedance(ohm) 75±3
Nominal Velocity of propagation(%) 85
Nominal Capacitance(pf/m) 50
Spark Test(VAC) 3000
SRL(dB) 20 20

Attenuation

[68°F(20℃)]

 Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)
5 0.58 1.9
55 1.6 5.25
187 2.85 9.35
300 3.55 11.64
450 4.4 14.43
600 5.1 16.73
750 5.65 18.54
865 6.1 20.01
1000 6.55

21.49

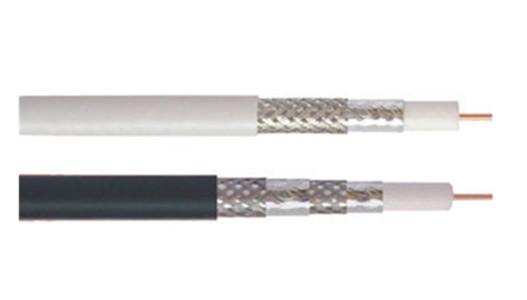

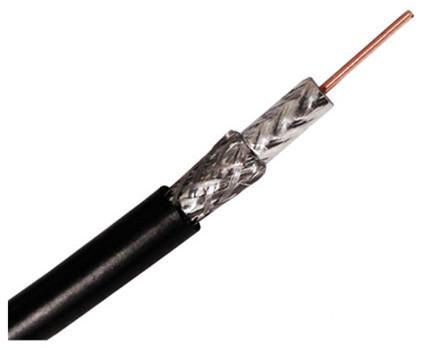

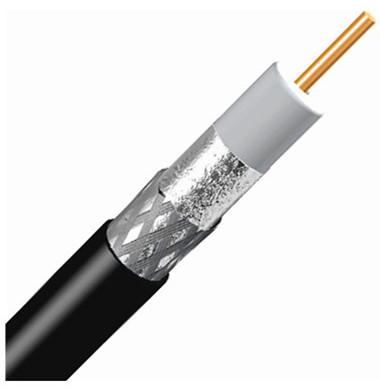

5. Product Image:

3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable

Company Information:

OUR ADVANTAGES

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Any further information needed please contact us.
