Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories
Specifications
Brand Name :
JHY
Model Number :
RG59
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
500m
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-15day
Packaging Details :
305m/roll
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Foam PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75 ohm
Rated voltage :
30V
Description

Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories

Production Description:

Directions:

  • Reference Standard:GB/T14864-1993MIL-C-17F
  • Impedance:75Ω or 50Ω
  • Conductors:single or multiply or multiply bare copper wires standing
  • Solid polytene isolation
  • Aluminium foil shielding
  • Soft copper cables or tinned soft copper braid shielding
  • Polyoxyethylene jacket
  • Temperature Available:-40°C~70°C

Applications:

  • Applied to transmitting in analog and hi-speed digital signals below IGHZ
  • Applied to transmitting signals in fixed or MRC (Mobile Radio Communication) and similiar technologies
  • Applied to transmitting in TV ,broadcasting signals control and information related
  • Applied to public antenna CCTV monitor system,radio communication,transmission systems and unicontrol systems or interior cables in high-rate machines

Product model:

Model No. cores diameter (mm) Weave(BC) External Diameter(mm)
75-3 64BC 2.95 64/0.08 4.8
75-3 96BC 2.95 96/0.08 4.8
75-4 64BC 3.7 64/0.08 5.8
75-4 96BC 3.7 96/0.08 5.8
75-5 96BC 4.7 96/0.08 6.8
75-5 128BC 4.7 128/0.08 6.8
75-4 80CCAM 3.55 80/0.12 copper-clad aluminum 5.7
75-4 64CCAM 3.55 64/0.12 copper-clad aluminum 5.7
75-5 80CCAM 4.55 80/0.12 copper-clad aluminum 6.7

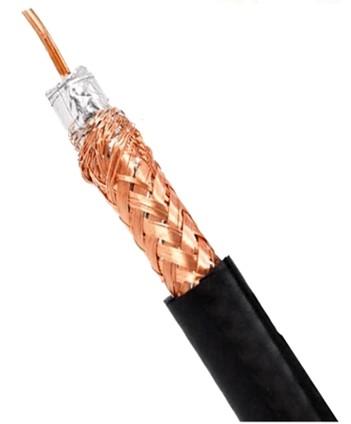

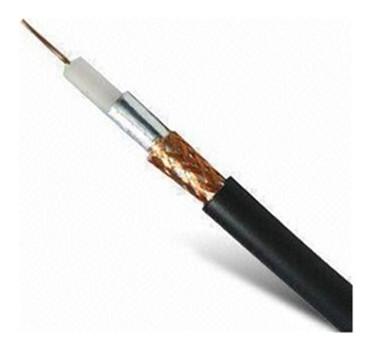

5. Product Image:

Black Flexible Coaxial Cable For CCTV Camera DVR Security System Surveillance Accessories

Company Information:

OUR ADVANTAGES

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Any further information needed please contact us.
