1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
COAXIAL CABLE
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
7 Days
Packaging Details :
100M/Roll，200M/Roll
Application :
CCTV,Telecommunication,Instrumentation,CCTV CAMERA,Radio Frequency
Type :
Coaxial Cable
Conductor material :
Copper Core,Tinned copper
Insulation :
PE
Shield Material :
Tinned copper wire/aluminium foil
Jacket :
PVC
Jacket Color :
Black/White/OEM
Sample :
Avaialble
Description

JHY Cable 1000ft OFC Conductor white jacket tinned copper braiding AL foil shield Coaxial Cable For CCTV

Production Description:

1. Production Application

High quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals. A broad selection available in Duct Grade or LSZH versions.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Use range

Suitable for analog signals below 1 GHz and high-speed digital signal transmission, suitable for closed-circuit television, public antennas, monitoring system signals, and other high-frequency instrument transmission systems.

4. Features

Characteristic impedance: 50±3Ω,75±3Ω

Frequency range: 1-1000MHz

  • High purity oxygen free copper
  • Ultra low dielectric constant solid PE insulation
  • High shielding performance, anti-interference
  • Flame retardant, environmentally friendly, corrosion resistant, oil resistant PVC sheath
  • Precision jet printer with precise length

5. Use environment

  • Rated temperature: -10 ° C ~ 70 ° C can be used normally
  • Rated voltage: 30V

6. Executive Standard: Q/HW 14-2016

7. Tabular data

Construction

1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable 1. Conductor material: Copper Core,Tinned copper
2. Jacket Material PVC
3.Insulation PE
4.Jacket color Black/White/OEM
5.Core 1

Other

Voltage Rating

Temperatyre Rating

 Packaging Details

30V

 -20ºC to 75ºC 100M/Roll,200M/Roll

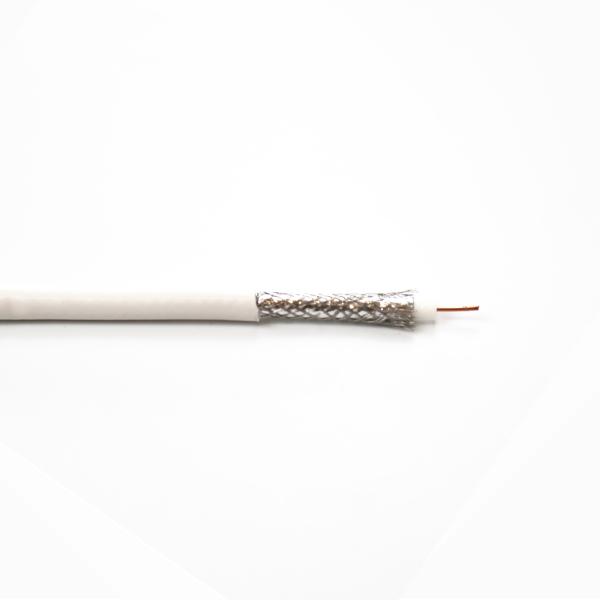

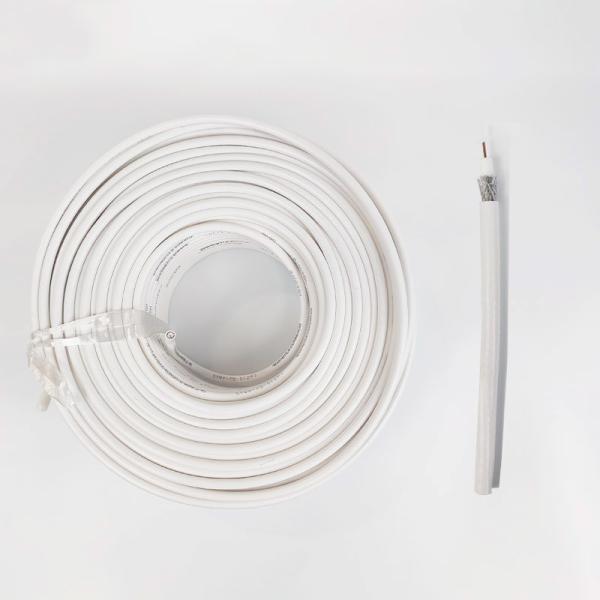

8. Product Image

1000ft OFC White Jacket Tinned Copper Coaxial Cable , Braiding AL Foil Shielded Coaxial Cable
