10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
Specifications
Brand Name :
JHY CABLE
Model Number :
CAT7 SFTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat7
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
shielded and Foiled
Insulation :
HDPE
Sheet :
PVC
Description

10GB 900MHz CAT7 SFTP Cables AWG23 Copper wires LSOH Ethernet Cable Category 7

Production Description:

Conductor : 4 twisted pairs pure copper wires - each wire diameter AWG23 0.57mm

Each pair is screened by AL-FOIL, Overall shielded by braiding : Tinned Copper wires

Includes Drain wire : Tinned copper

Cable Jacket : LSOH/LSZH (Low Smoke Zero Halogen) Flam resistant test acc. to IE 0332-1

Standard printing on the cable jackt, Out diameter (O.D: 7.5-7.8mm)

Cable Type Cat7 Shielding Type SFTP
Cable Jacket PVC CMR Cable Length 1000ft (305m)
Standard Bandwidth 900MHz Data Rate Support 10GBase-T
Wire Gauge 23AWG Conductor Type Solid Oxygen-free Copper
Conductor Diameter(mm) 0.560 ± 0.005 Cable Outer Diameter (mm) 7.6 ± 0.50
Cable Color Blue Standard ISO/IEC 11801
Operating Temperature 0 to 50°C (32 to 122°F) Installation Temperature -30 to 50°C (-22 to 122°F)

Colour Code:

Pair 1 : White/Blue -Blue;
Pair 2 : White/Orange -Orange;
Pair 3 : White/Green -Green;
Pair 4 : White/Brown -Brown

Cable Diameter , Standard Length & Packing:

Cable Diameter : 7.6 mm (Max.)
Available Packaging : 305 mtr Pull box Or 500 / 1000 mtr spool
Available Colour : Grey or As Per Customer Requirement

Packaging

Approx.Weight Package box Dimension(cm) Packages per 20 ft container
15.8 kg 305m/roll pull box 42 x 24 x 42

800 box

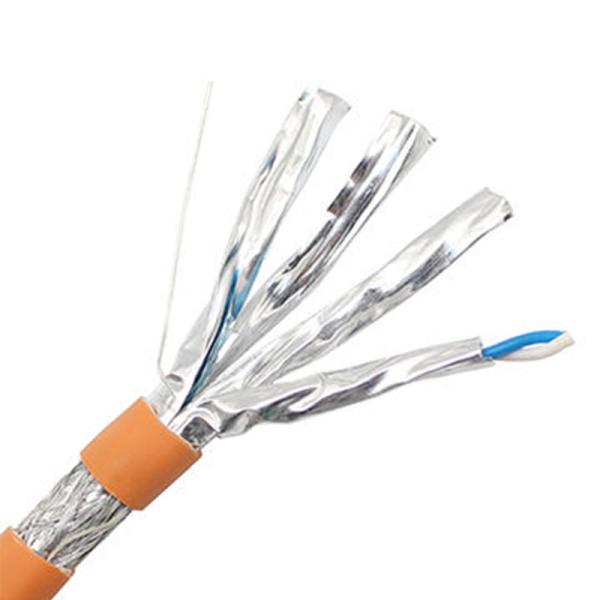

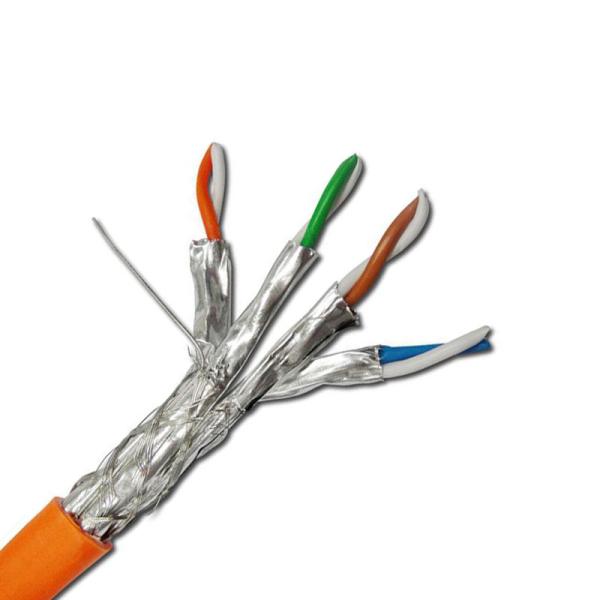

6. Product Image

10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7

10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7

10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7

10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7

Company Contact Information:

OUR SERVICE 10GB 900MHz CAT7 SFTP Flexible Network Cable AWG23 Copper Wires LSOH Ethernet Category 7
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables;
3) Medium and High Voltage Power Cables;
4) Aerial Bundled Cables;
5) Mineral Insulated Fire Resistant Cables
6) Control Cables, Instrument Cables, Communication Cables etc.

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
