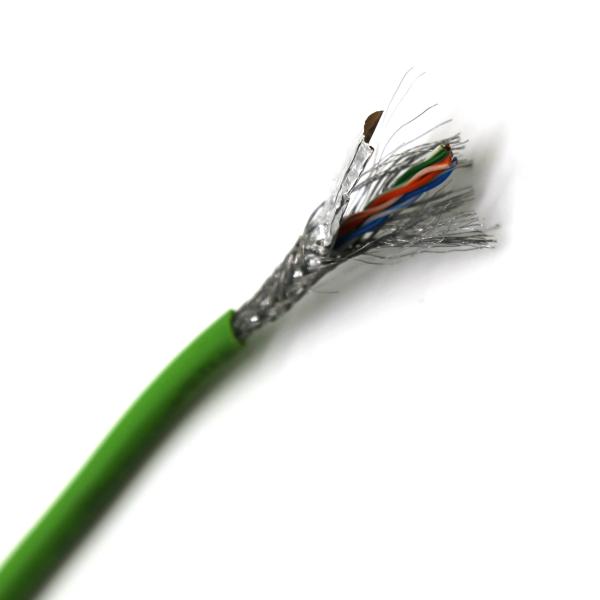

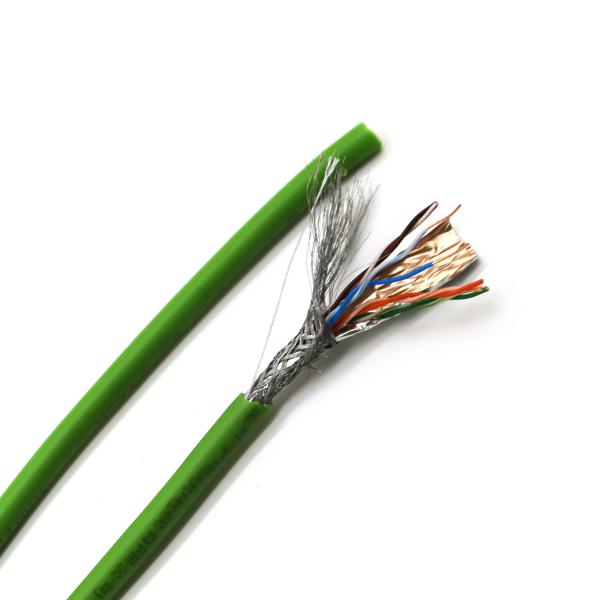

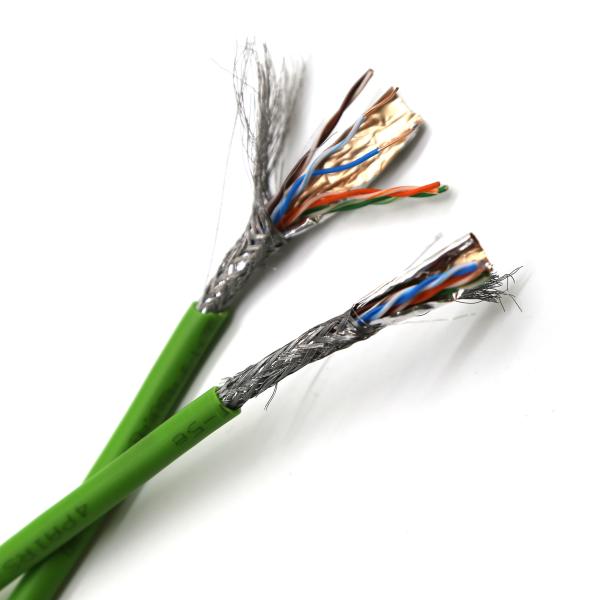

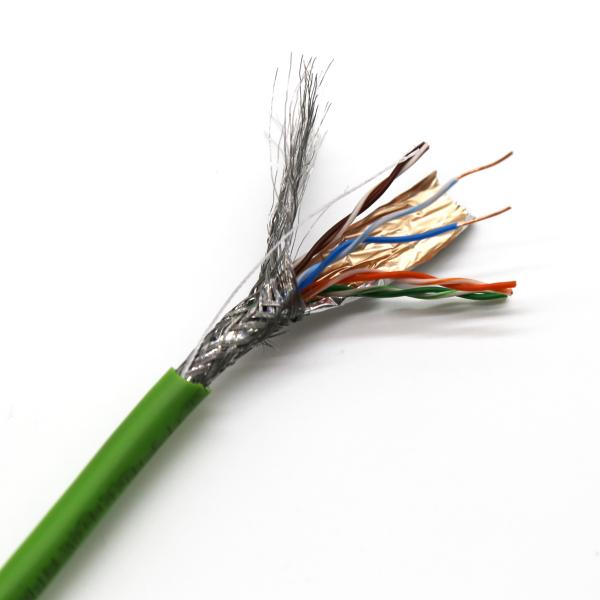

Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
Specifications
Brand Name :
JHY CABLE
Model Number :
Cat5e SFTP
Certification :
CE,CB,ROHS
Place of Origin :
SHENZHEN, CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 kilometer/day
Delivery Time :
5-7days
Packaging Details :
305m/box, or 100m/roll
Product name :
Green Color 24AWG copper conductor HDPE insulation PVC sheath Cat5e SFTP Network Cable
packing :
305meters/roll
Conductor :
bare copper
Conductor Diamete :
0.5mm 24AWG
Insulation :
HDPE
Jacket :
PVC
Description

Green Color 24AWG copper conductor HDPE insulation PVC sheath Cat5e SFTP Network Cable

1. Application:

Product compatibility and application. It can be used for circuit conversion and connection of communication equipment and other electronic equipment.Suitable for wired connection devices such as computers, switches, notebooks, routers, TVs, monitors, etc. Also suitable for a variety of green projects, such as office, home improvement and hotels.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction

AWG (Gauge)
24AWG
Conductor Material
Bare copper
Box
305m
Shiled
SFTP, Aluminum Foil
Jacket Material
PVC/LSZH
Color
Green, Or Customized
Certification
CE/ROHS/CB
Fire rating
CMP,CMR,CM.LOSZ.BS
Operating temperatur
-20°C to +75°C
Application
Computers, switches, notebooks, routers, TVs, monitors, etc

4. Characteristics

  • The conductor is made of high purity oxygen free copper. The signal transmission is stable and the attenuation is reduced.
  • Imported ultra low dielectric constant polyethylene insulation.
  • Flame-retardant, environmentally friendly, corrosion-resistant and oil-resistant poly-vinyl sheath.
  • The unique soft, anti-oxidant design gives the appearance a crystal clear look.
  • With precision inkjet printer, the length is accurate.

​Reference Standard: EIA/TIA 568B & ISO/IEC 11801

Remark: The cable can be of flame retardant, fire resistance and waterproof.

5. Product Describe

Green AWG Flexible Network Cable 24 Copper Conductor HDPE Insulation PVC Sheath Cat5e SFTP
