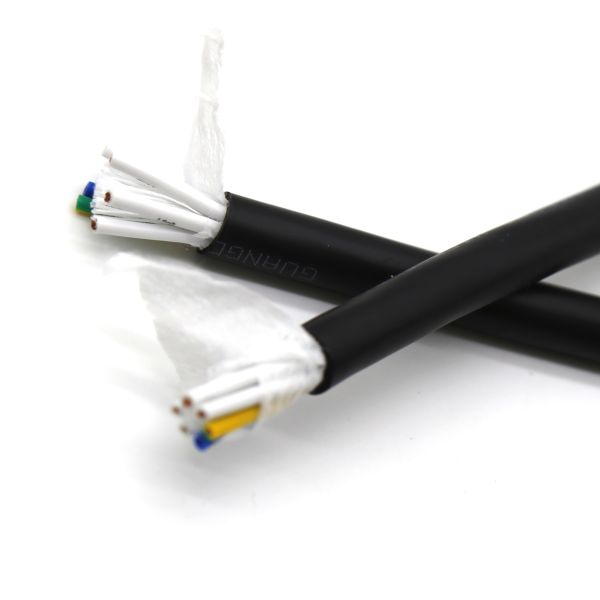

Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
Robotic Flexible Cables-07
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
30 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-10day
Packaging Details :
100m/200m/box
Product name :
Robotic flexible cable
Conductor :
OFC
Flexural life :
Over 15 million
Application :
Robot,machine
Rated temperature :
-10 ℃ ~ 80 ℃
MOQ :
2000m
Description

Robotic Flexible Cables 300/500V flexibility Industrial Robot Electrical Cable

Production Description:

1. Production Application

Internal wiring or external interconnection of electronic equipment.Ultra-flexible, shielded, designed for robotic systems, automatic handling equipment and for mechanical devices without special movement. It can be used in areas where aggressive mineral oil is leaking and where high mechanical stress is required on the cable.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, UL,CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Construction
Size
6*0.75
Construction
6*20/0.08AS*7+10/0.08AS*1
Conductor Material
Multi strand oxygen free copper
Insulation
 Special mix PVC
Jacket
Special modified PVC
Type
UNshielded
frequency
Over 15,000,000
Rated Voltage
300/500V
Color
Black
Application
Suitable for frequent bending occasions, woodworking machinery, machine tool processing machinery, starter, etc

4. CHARACTERISTICS

Multiple ultra-fine fine stranded high purity copper wires, complying with vde0295 / iec60228 class 6 standard

Insulation: special mixed PVC insulation

Color: 2-core blue, brown; 3-core blue, brown, yellow / green; 4-core blue, brown, yellow / green, black; 5-core blue, brown, yellow / green, black, gray, white; 6-core blue, brown, yellow / green, black, gray, white;7-core blue, brown, yellow / green, black, gray, white, red; 8-core blue, brown, yellow / green, black, gray, white, red, green; 9-core blue, brown, yellow / green, black, gray, white, red, green, orange; 10 core blue, brown , yellow / green, black, gray, white, red, green, orange, yellow; 12 core and above white printed numbers.

Cotton thread acts on tensile resistance

Non woven fabric acts on insulation and sheath of isolated conductor and fixed conductor

Sheath: special modified PVC material

Rated voltage: Section less than or equal to 0.3mm2: 300 / 300V, section greater than or equal to 0.5mm2: 300 / 500V

Operating temperature range: fixed installation: - 10 ℃ ~ 80 ℃, mobile installation: - 0 ℃ ~ 70 ℃

Minimum bending radius: fixed installation: 5 * cable outer diameter; mobile installation: when the stroke is less than or equal to 10 meters, the bending radius is 7.5 * D; when the stroke is more than or equal to 10 meters, the bending radius is 10 * D

Lead time:

Quantity(box) 10 100
EST.time(day) 3-5 5-15
Product Describe:
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable

Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable
Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable

Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable

Company Contact Information:

OUR SERVICE Industrial Robotic Flexible Cables 300/500V Flexibility Robot Electrical Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
