OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
TRVV cable
Certification :
CCC/ CE/ CB/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
5~7 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
TRVV cable
Conductor :
stranded OFC copper wire
Insulation :
special PVC
Jacket :
special PVC
Color :
brown, blue, black, red
Package :
100 meters/roll
Application :
Logistics system, control system
Description

OFC stranded copper wire special PVC insulated drag chain kable TRVV cable

Production Description:

1. Specificaitons of TRVV cable

  • Conductor: Multi - ultra fine fine twisted high purity copper wire,meet to VDE 0295/IEC 60228 standard
  • Insulation: special PVC
  • Insulation color:
  • 2C: brown , blue;
  • 3C: brown , blue, yello/green;
  • 4C: brown , blue, yello/green, black; 5C: brown , blue, yello/green, black, grey.
  • Sheath: special PVC, black or grey
  • Nominal cross section: 0.2-2.5mm2
2. Features
  • The cable core is tightly filled, seamless, anti-pull rope and cable core is filled to ensure the round and smooth of the cable.
  • The non-woven cloth is wound and fixed. The non-woven cloth is wrapped outside the core and the tensile rope to play the role of fixation
  • The cable core is around to enhance the tensile strength of the cable
  • Multiple copper core winding enhances the softness of the cable
  • It is resistant to bending and abrasion. It has been proved by many experiments that the bending strength can reach more than 15 million times under the condition of high-speed movement

3. Technical data

Model

Nominal cross-section

(mm2)

Stucture of conductor

(No./mm)
TRVV 2x0.2 2x10/0.08AS x 4 strands
TRVV 2x0.3 2x10/0.08AS x 6 strands
TRVV 2x0.5 2x10/0.08AS x 10 strands
TRVV 2x0.75 2x20/0.08AS x 7 strands+10/0.08AS x 1 strands
TRVV 3x0.2 3x10/0.08AS x 4 strands
TRVV 3x0.5 3x10/0.08AS x 10 strands
TRVV 3x1.0 3x20/0.08AS x 10 strands
TRVV 4x1.5 4x20/0.08AS x 15 strands
TRVV 4x2.5 4x20/0.08AS x 25 strands
TRVV 5x1.5 5x20/0.08AS x 15 strands
TRVV 5x2.5 5x20/0.08AS x 25 strands

4. Application

  • Suitable for robot, tank chain, UV printer, automation equipment, crane machine grinder and other equipment;
  • Mechanical arm, mechanical processing, tank chain, equipment laser mechanical cutting machine

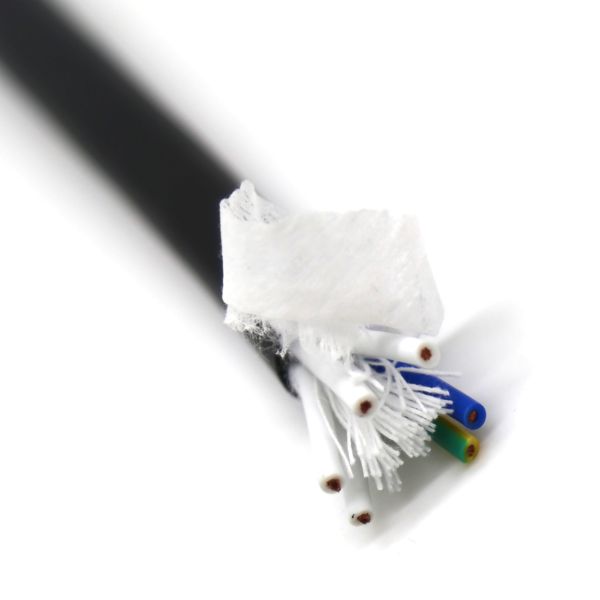

5. Product Image

OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

6. Product standard

JB8734.3-2012, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE OFC Stranded Copper Wire , Special PVC Insulated Drag Chain Cable TRVV Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
