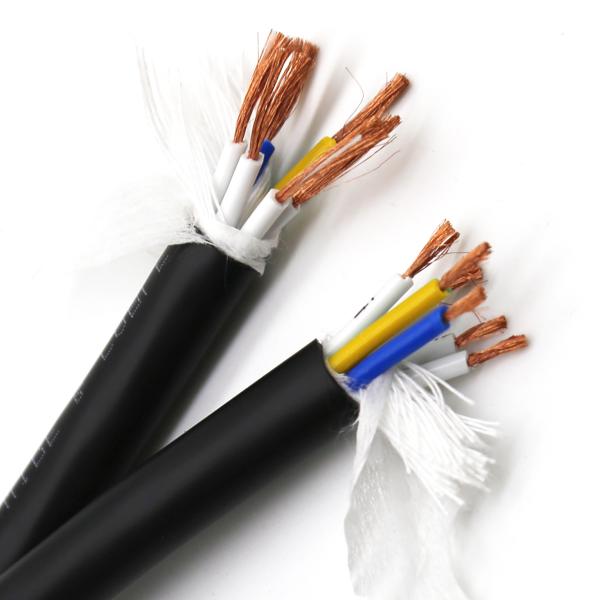

Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V
Specifications
Brand Name :
JHY CABLE
Model Number :
Robotic Flexible Cables-01
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
30 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-10day
Packaging Details :
100m/200m/box
Product name :
Robotic flexible cable
Conductor :
OFC/BC
Insulation :
Special mix PVC
Jacket :
Special modified PVC
Rated Voltage :
300/300V
Color :
Blue,Brown,Yellow,Black
Description

Trailing Cables copper conductor bending robotics cable flexible towline cable

Production Description:

1. Production Application

As the transmission and power connection cable for control and measurement signals, the special cable for anti bending and torsion robot has the advantages of water-proof, oil-proof, cold resistant and wear-resistant, UV resistant, flame-retardant, bending life of more than 15 million times. It is suitable for installation in various situations where torsion and bending stress exist simultaneously; it is suitable for connection and assembly of welding robot and manipulator, connection of rotary or lifting platform, or installation of field joint when cable movement (such as in drag chain system) cannot be set in design.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, UL,CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3.Construction
Size
6*0.75
Construction
6*20/0.08AS*7+10/0.08AS*1
Conductor Material
Multi strand oxygen free copper
Insulation
 Special mix PVC
Jacket
Special modified PVC
Type
UNshielded
frequency
Over 15,000,000
Rated Voltage
300/500V
Color
Black
Application
Suitable for frequent bending occasions, woodworking machinery, machine tool processing machinery, starter, etc

4.CHARACTERISTICS

Multiple ultra-fine fine stranded high purity copper wires, complying with vde0295 / iec60228 class 6 standard

Insulation: special mixed PVC insulation

Color: 2-core blue, brown; 3-core blue, brown, yellow / green; 4-core blue, brown, yellow / green, black; 5-core blue, brown, yellow / green, black, gray, white; 7-core blue, brown, yellow / green, black, gray, white, red; 8-core blue, brown, yellow / green, black, gray, white, red, green; 9-core blue, brown, yellow / green, black, gray, white, red, green, orange; 10 core blue, brown , yellow / green, black, gray, white, red, green, orange, yellow; 12 core and above white printed numbers.

Sheath: special modified PVC material

Rated voltage: Section less than or equal to 0.3mm2: 300 / 300V, section greater than or equal to 0.5mm2: 300 / 500V

Operating temperature range: fixed installation: - 10 ℃ ~ 80 ℃, mobile installation: - 0 ℃ ~ 70 ℃

Minimum bending radius: fixed installation: 5 * cable outer diameter; mobile installation: when the stroke is less than or equal to 10 meters, the bending radius is 7.5 * D; when the stroke is more than or equal to 10 meters, the bending radius is 10 * D


Packing details:
1) Packing length: 100m/roll other length are available according to client's requests
2) Inner packing: wooden reel, plastic reel, and paper reel available
3) Outer packing: carton box, pull out box, pallet available
4) Other packing available according to client's requests
Delivery details: shipped in 30 days after payment

Lead time:

Quantity(box) 10 100
EST.time(day) 3-5 5-15
Product Describe:
Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V

Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V

Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V

Company Contact Information:

OUR SERVICE Trailing Robotic Flexible Cables Copper Conductor Bending Towline Cable 300/300V

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
