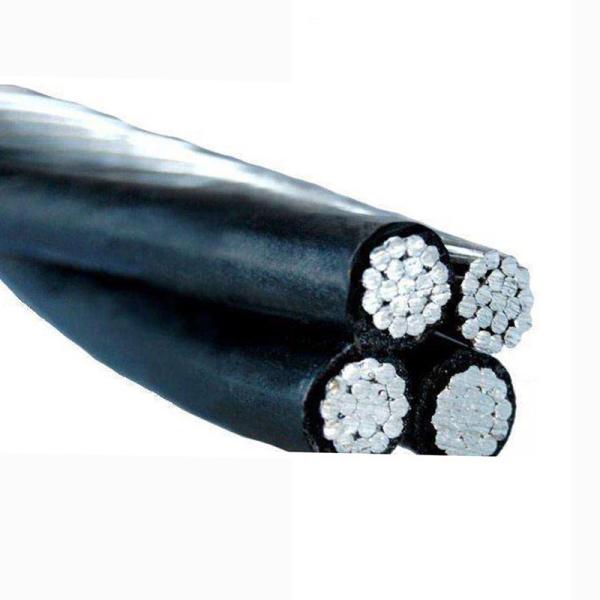

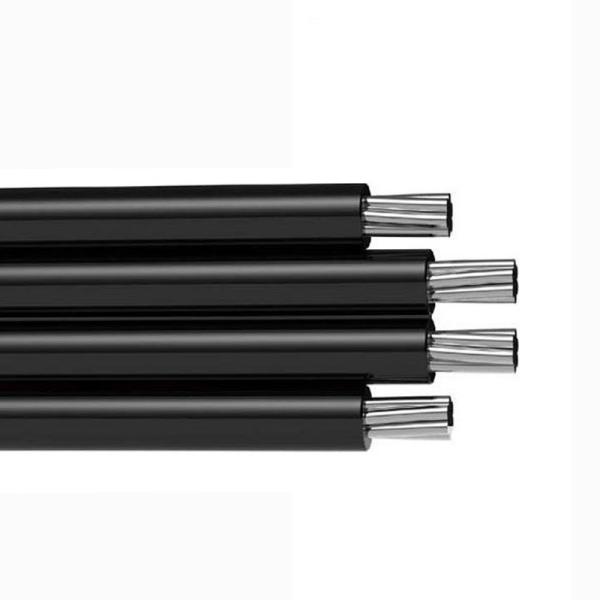

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2
1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2
1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2
1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2
Specifications
Brand Name :
JHY CABLE
Model Number :
JKY, JKYJ,JKLY,JKLYJ,JKLHY
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
5000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
ABC Cable
Conductor :
Aluminum
Core :
1-5
Insulation :
PE/XLPE
Color :
black
Packing :
Wooden Reel
Application :
Overhead
Description

Overhead aluminum cable 0.6/1kV copper or aluminum conductor XLPE insulated ABC cable

1. Introduce of ABC cable

  • Rated Voltage U0/U(Um) (kV) : 0.6/1;
  • Conductor: Pure annealed copper or aluminum;
  • Insulation: XLPE/PE/PVC;
  • No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2;
  • Nominal cross-section(mm2): 10~240;
  • tandard: GB/T 14049-2008 IEC 60502;
  • Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C;
  • Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q;
  • Packing: Wooden Drum or according to the customer requirement;
  • Remark: The cable can be of flame retardant, fire resistance and other property.

2. Technical parameters

Number of Cores xNominal Cross Section Overall Diameter Weight Maximum Conductor Resistance
No.×mm2 mm Kg/Km Ω/Km
1x16 8,0 74 1,910
1x25 9,0 106 1,200
1x35 10,5 138 0,868
1x50 11,8 182 0,641
1x70 13,0 252 0,443
1x95 15,4 333 0,320
2x16 15,6 147 1,910
2x25 18,0 208 1,200
2x35 20,0 277 0,868
2x50 23,5 361 0,641
2x70 25,4 505 0,443
2x95 30,3 666 0,320
2x150 38,0 1004 0,206
4x50 27,8 746 0,641
4x70 31,8 1009 0,443
4x95 37,8 1332 0,320
4x120 54,4 1632 0,253

3. Application

Service drop cable (ABC CABLE) is mainly used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting, it improves the safety and reliance of electrified wire netting.

4. Product Image

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

Product Package

1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

5. Product standard

GB/T 14049, GB/T 12527, IEC 60502, BS 7870, AS/NZS 3560, AS/NZS 3599.

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

7. Company information

Company Contact Information:

OUR SERVICE 1kV 10kV Multi - Core Aerial Bundled Cable XLPE Insulation Aluminium Cable 16mm2

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
