• Application
  This cable is used as power, control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant. This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load. Suitable to use for installation in dry, moist and wet rooms, indoor and outdoor

  Construction

  Conductor	: Stranded bare copper conductor
  Conductor structure	: Stranding according to IEC-60228, class 5
  Insulation	: Special quality PVC
  Sheath	: PVC outer sheath
  Sheath colour	: Black colour, flame retardant to IEC 60332-3C, UV resistant


  Electrical & Technical Data

  Rated voltage	: 600/1000V
  Test voltage	: 3500 VAC/5 min
  Insulation resistance	: min. 20 MΩ x Km
  Max. working temperature	: 700C
  Min. laying temperature	: -50C
  Bending radius	: 15 x outer diameter of cable

• Construction:

  Conductor: Class 5 flexible copper conductor

  Insulation: Halogen-Free Compound Type TI6 according to BS EN 50363

  Sheath: LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363

  Character:

  Voltage Rating: (Uo/U) 300/500V

  Temperature Rating:

  Fixed: -40°C to +70°C

  Flexed: -5°C to +70°C

  Minimum Bending Radius

  Fixed: 4 x overall diameter

  Flexed: 10 x overall diameter

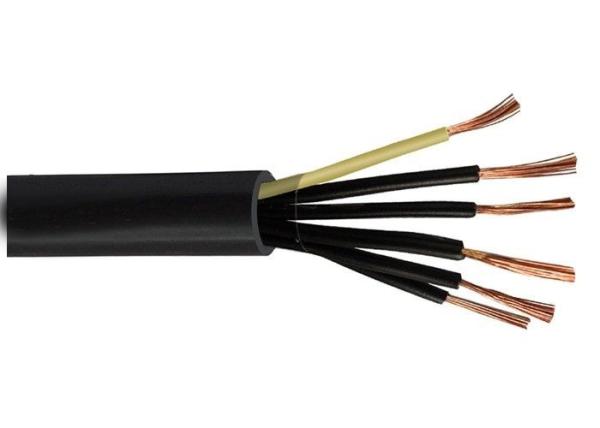

  Core Identification

  Black with; White numbers (3 core and above includes Green/Yellow)

  Coloured Cores:

  2 core: Blue Brown

  3 core: Green/Yellow Blue Brown

  4 core: Green/Yellow Brown Black Grey

  5 core: Green/Yellow Brown Black Grey Blue

  Sheath Colour: Grey
