Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
Specifications
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer's request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Description

Up to 600 / 1000V Copper Conductor PVC / XLPE Insulated Braiding Control Cable

1.1 PVC insulated & sheathed control cable is suitable for connecting wires between electric equipment is controling,monitoring loop and including 600V/1000V (A.C.).The product has not only excellent characteristics in electric and mechanical purpose but also in performance of chemical corrosion resistance ,heat-aging ,environmental stress and flame-retardant.The product has simple construction and convenient to use and could be laid with no restriction of different levels.

Our product of PVC insulated and sheathed control cable can be manufactured according to the Chinese standard GB9330-88,which was complied with reference to IEC227 ,IEC 502 and the standards of Germany ,American ,Japan and U.S.S.R for control cable .

1.2 Flame-Retardant control cable

Flame-Retardant control cable is suitable for connecting wires between electric equipments with a special flame-retardant requirement in controling ,monitoring loop and protecting circuit at rated voltage up to 600/1000V (A.C.) .Our flame-retardant control cable ,low smoke halogen free flame-retardant control cable ,low smoke low halogen flame-retardant control cable ,XLPE insulated control cable and XLPE insulated flame-retardant control cable.

Application Suitable for the interconnection in controlling, Protecting and measuring system.
Number of Core 2-61cores
Rated Voltage

450/750V confirm to IEC 60227-2007

600/1000V confirm ro IEC 60502-2004
Test Voltage AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V.

Maximum conductor

operating temperature

90°C for XLPE Insulation

70°C for PVC Insulation
Core's recognition

Up to 5core with color.

Above 5core with number.
Color of Sheath Black and customer designated.
Manufactured standards IEC 60227-2007 IEC 60502-2004.
Conductor Type

IEC 60228-2004 class 1 , class 2, and class 5.

Nominal Cross-section area: 0.5-10mm2.

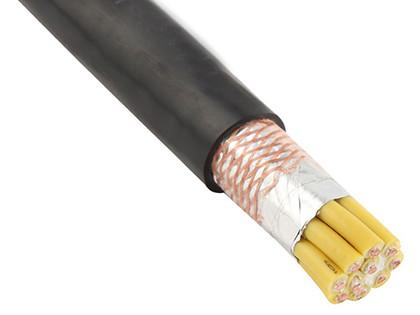

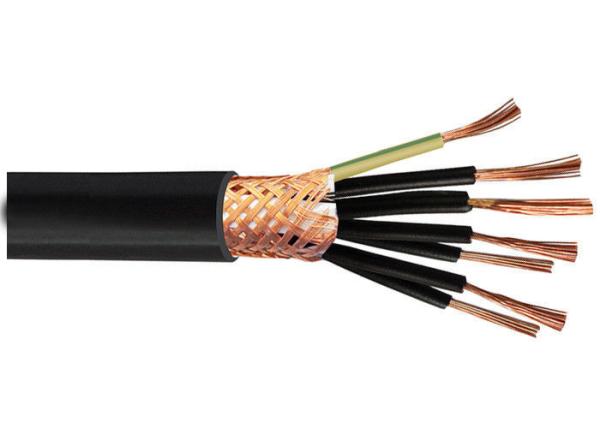

5. Product Image
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding

Company Information:

OUR SERVICE Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
