Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable
Specifications
Brand Name :
JHY CABLE
Model Number :
KVV cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer's request.
Model :
KVV,KVVR,KVVP
Conductor :
99.9% Pure annealed copper Wires
Conductor type :
Solid or strand
Core :
2-61 Cores
Insulation :
PVC
Sheath :
PVC
Color :
black
Application :
Signal transmission
Description

flexible multi-core copper conductor control cable double PVC sheathed KVV cable

1. Specifications

Conductor Plain annealed copper wire,Class 1 solid, Class 2 strand,meets to GB/T 3955, GB/T 3956, IEC 60228.
Conductor core 2,3,4,5....61
Insulation PVC or XLPE
Sheath PVC, PE, LSZH
Shielded Tinned copper wire, pure copper wire, coppwer tape, aluminium foil.
Armoured Steel Tape, Steel Wire
Standard GB/T 9330, IEC 60227, BS 6500, VDE 0250.
Rated voltage 450/750V
Rated temperature -15°C ~ +70°C

2. Technical parameters

Item

Nominal cross-section

(mm2)

 Kind of conductor

O.D.

(mm)

Max.resistance of conductor at 20℃

(Ω/km)

Minimum insulation resistance at 70℃

(MΩ·km)

eference weight

(kg/km)
KVV 2x0.75 class 1 7.2 24.5 0.012 61
KVV 2X0.75 class 2 7.5 24.5 0.014 65
KVV 2X1.0 class 1 7.5 18.1 0.011 69
KVV 2X1.0 class 2 7.8 18.1 0.013 74
KVV 2X1.5 class 1 8.4 12.1 0.011 90
KVV 2X1.5 class 2 8.8 12.1 0.010 95
KVV 2X2.5 class 1 9.6 7.41 0.010 124
KVV 2X2.5 class 2 10.2 7.41 0.009 135
KVV 2X4 class 1 10.6 4.61 0.0085 164
KVV 2X4 class 2 11.2 4.61 0.0077 176

3. Features

  • Power frequency rated voltage Uo/U :450/750V or 0.6/1KV
  • The permissible long-term maximum working temperature of the cable conductor is 70 ℃.
  • Cable laying ambient temperature should not be less than 0 ℃, if the ambient temperature is below 0 ℃, the cable should be preheated.
  • The recommended bending radius for cables is as follows:
  • No armored cable, should not be less than 6 times the cable diameter;
  • Armored or copper tape shielded cable, should not be less than 12 times the cable diameter;
  • Shielded flexible cable, not less than 6 times the cable diameter.

4. Application

It is used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction.

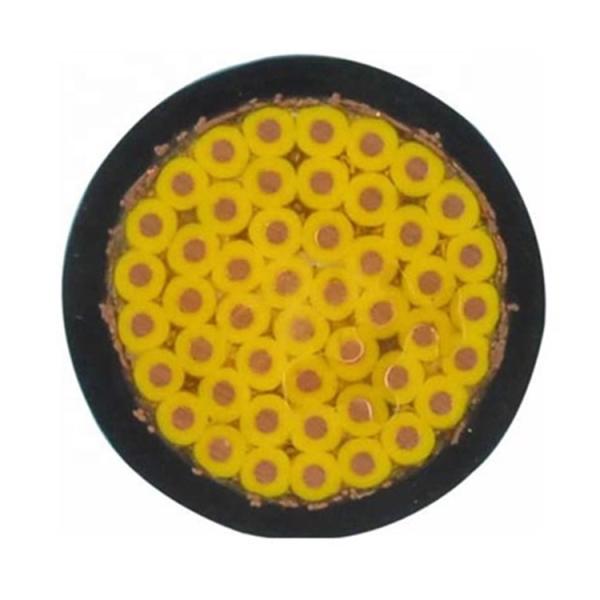

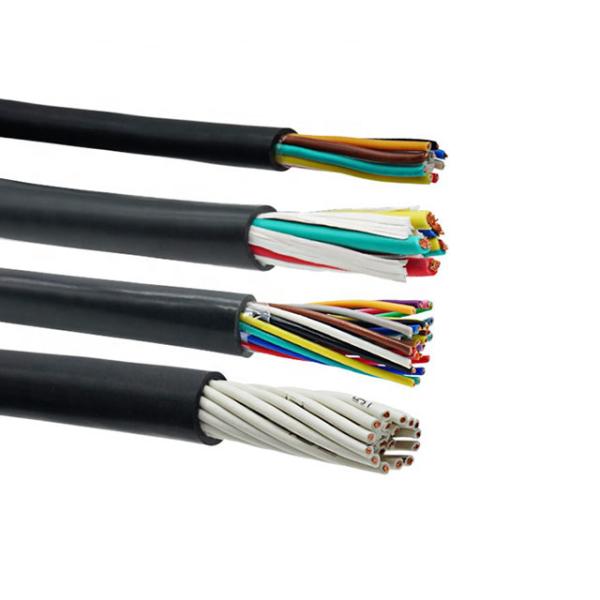

5. Product Image

Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable

Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable

Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable

Product Package

Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable

6. Product standard

GB/T 9330, IEC 60227, BS 6500, VDE 0250.

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE Flexible Multi Core Copper Conductor Shielded Control Cable Double PVC Sheathed KVV Cable

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
