Specifications
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer's request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Description

PVC Sheath XLPE Insulated Control Cables With CE / KEMA Certificate

Conductor

  • Bare, Tin-Coated, or Nickel-Plated, annealed copper, in solid, 7-strand, or 19-strand configurations from 18 AWG to 8 AWG and equivalent metric sizes.

Insulation

  • PVC, PVC/Nylon or XLPE.

Shielding

  • Optional aluminum or copper tapes with a polyester backing for individual and overall shields, used with drain wires. Drain wires are placed in direct contact with the shield to facilitate grounding and easy termination

Jacket (Sheath)

  • PVC, HDPE, CPE, or TPN (LSZH).

Cable Markings

  • All cables are printed with required voltage and temperature rating, as well as applicable regulatory approvals.
  • All cables have traceability and sequential length markings.

Packaging & Documentation

  • Depending on the size of the cable, the products are delivered on wooden reels up to 96” in diameter.
    • There is an option to lag wood reels using wooden planks that are secured to the outer edges of the reel to prevent damage to the cable while in transit. The wooden reels are heat-treated to comply with international phytosanitary requirements. Overseas shipments are crated. We also offer light-weight fiber board reels for air freight shipments.
  • The ends of the cables, known as the “pig tails,” are exposed on the reels for any testing at the receiving location, but sealed for shipment.

Design Standards

  • UL 1277 (TC & TC-ER), UL 1569 (MC), UL 2225 (MC-HL), ICEA S-73-532, IEC 60502, AS/NZS 5000, BS 6346 & 5467, CSA TECK 90.

Flame Retardancy Standards

  • IEEE 1202, UL 1685, VW-1, FT4, IEC 60332

Temperature Rating

  • -50ºC to 90°C.

Hazardous Zone Classifications

  • Class I, Division 1 & 2, and Class I, Zone 1, 2, & 3 Ratings are Available.

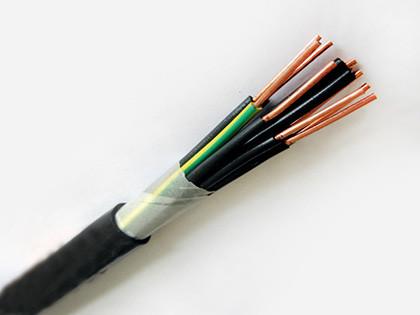

5. Product Image
