JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
Specifications
Brand Name :
JHY CABLE
Model Number :
Welding cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
7 Days
Packaging Details :
As per customer request
Application :
Welding Machines and so on
Type :
Welding cable
Conductor :
Bare Copper
Insulation :
Rubber
Color :
Black
Working temperature :
<70°c
Description

JHY Cable Flexible Copper Conductor Rubber Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2


Production Description:
1. Production Application

For Welding Machines and so on.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3. Use range

As the second side link and the connection of clectrode holders,it is applicable to the arc welder in which AC voltage is under 200V and pulsant peak value is under 400V.

4. Features

  • Rubber sheath welder cable 60245 IEC 81 (YH)
  • Chloroprene or other equivalent synthetic elastomer rubber sheathed welder cable 60245 IEC 82 (YH)


5. Use environment

  • Rated temperature: 70°C


6. Executive Standard: GB/T5013-2008


7. Tabular data
Construction

JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 1. Conductor material: Copper Core
2. Insulation Material Rubber
3.Color Black
4.Rated voltage 450/750V and below
5.Working temperature <70°c

Structure

nominal section

(mm2)

average outer diameter upper-limit

(mm)

20°c Max conductor DC resistance

(Ω/km)

cable approximate

weight

(kg/km)
10 9.7 1.91 151
16 11.5 1.16 226
25 13 0.758 325
35 14.5 0.536 434
50 17 0.379 602
70 19.5 0.268 826

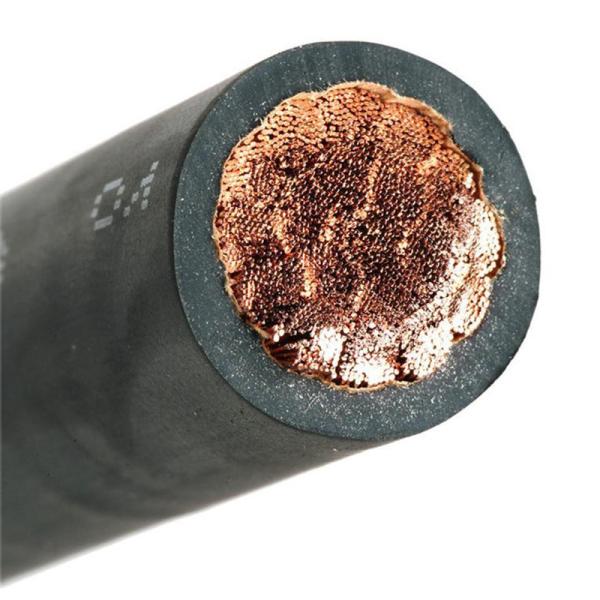

8. Product Image
JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2

JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2

Company Contact Information:

OUR SERVICE JHY Copper Conductor Rubber Flexible Welding Cable 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2
To provide quality products and excellent service are our missions. OEM and ODM are welcome.
Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
