Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
Specifications
Brand Name :
JHY CABLE
Model Number :
Welding cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 kilometer/Day
Delivery Time :
7 -10Days
Packaging Details :
As request
Application :
Welding Machines
Type :
Welding cable
Conductor :
Bare Copper
Jacket :
Rubber
Nominal Area :
16,25,35,50,70,95
Working temperature :
Less than 70 °C
Voltage :
less than 200V
Packing :
as request
Standard :
GB/T5013-2008,Q/HW08-2015
OEM order :
YES
Description

60245 IEC81 Copper Conductor Rubber jacket Welding Cable


Production Description:

1. Spec sheet of muti size 60245 IEC81 Copper Conductor Rubber insulated Welding Cable

Nominal section area

(mm2)

Max. diameter of wire

(mm)

Coated layer thickness

(mm)

 Sheath thickness in double coated layers(mm)

Average outer diameter

(mm)

Max. resistance at 20℃

(Ω/km)
Min. Max. Tin coated wire Copper wire
16 0.21 2.0 1.3 9.2 11.5 1.190 1.160
25 0.21 2.0 1.3 10.5 13.0 0.780 0.758
35 0.21 2.0 1.3 11.5 14.5 0.552 0.536
50 0.21 2.2 1.5 13.5 17.0 0.390 0.379
70 0.21 2.4 1.6 15.5 19.5 0.276 0.268
95 0.21 2.6 1.7 18.0 22.0 0.204 0.198

2. Production Application

Welding cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.

3. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

4. Use range

As the second side link and the connection of clectrode holders,it is applicable to the arc welder in which AC voltage is under 200V and pulsant peak value is under 400V.

5. Features

  • Rubber sheath welder cable 60245 IEC 81 (YH)
  • Chloroprene or other equivalent synthetic elastomer rubber sheathed welder cable 60245 IEC 82 (YH)


6. Use environment

  • Rated temperature: 70°C


7. Tabular data
Construction

Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor 1. Conductor material: Copper Core
2. Insulation Material Rubber
3.Color Black
4.Rated voltage 450/750V and below
5.Working temperature <70°c

Structure

nominal section

(mm2)

average outer diameter upper-limit

(mm)

20°c Max conductor DC resistance

(Ω/km)

cable approximate

weight

(kg/km)
10 9.7 1.91 151
16 11.5 1.16 226
25 13 0.758 325
35 14.5 0.536 434
50 17 0.379 602
70 19.5 0.268 826

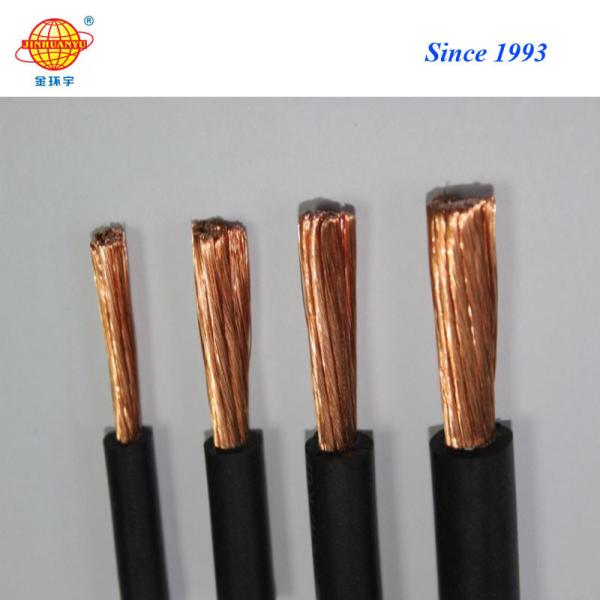

8. Product Image
Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor

Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor

Company Contact Information:

OUR SERVICE Rubber Insulated Flexible Welding Cable Multi Size 60245 IEC81 Copper Conductor
To provide quality products and excellent service are our missions. OEM and ODM are welcome.
Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
