450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007
Specifications
Brand Name :
JHY CABLE
Model Number :
KVV
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer's request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Description

450/750V Flexible Conductor Multicore Unshielded YY Control Cable IEC 60227-2007 Standard

Production Description:

1. Specification

Application Suitable for the interconnection in controlling, protecting and measuring system
Number of core 2~61 cores
Rated Voltage

450/750V conform to IEC 60227-2007

600/1000V conform to IEC 60502-2004
Test Voltage AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V

Maximum conductor

operating temperature

90oC for XLPE insulation

70oC for PVC insulation
Core's recognition

Up to 5 core with color

Above 5 cor with number
Color of sheath Black and customer designated
Manufactured Sdandards IEC 60227-2007, IEC 60502-2004
Conductor type

IEC 60228-2004 class 1, class 2 and class5

Nominal Cross-section area:0.5~10mm2

We can produce according to your need and provide technical data.
Packing Cable can be supplied in any length required.

2.Type & Name of Cable

Type Description Main applications
KVV Copper core PVC insulated and sheathed control cable For laying indoor, in tunnels, ducts, conduit etc.permanent place
KVVP Copper core PVC insulated and sheathed copper wire braiding shielded control cable For laying indoor, in tunnels, ducts, conduit etc.permanent place where shield required.
KVVP2 Copper core PVC insulated and sheathed copper tape shielded control cable For laying indoor, in tunnels, ducts, conduit etc.permanent place where shield required.
KVV22 Copper core PVC insulated and sheathed steel tape armoured control cable For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force
KVV32 Copper core PVC insulated and sheathed steel wire armoured control cable For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force
KVVR Copper core PVC insulated and sheathed flexible control cable For laying indoor, and flexible and shield required etc.place, easy to move
KVVRP Copper core PVC insulated and sheathed copper wire braiding shielded flexible control cable For laying indoor , and flexible and shield required etc.place ,easy to move
ZR-KVV Copper core PVC insulated and sheathed flame-retarding control cable For being applied on heat engine and heat controlling appliance



Construction

450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007 1. Conductor material: Copper Core
2. Jacket Material PVC
3.Insulation Material PVC
4.Jacket Colour Black
5.Insulation Colour Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request

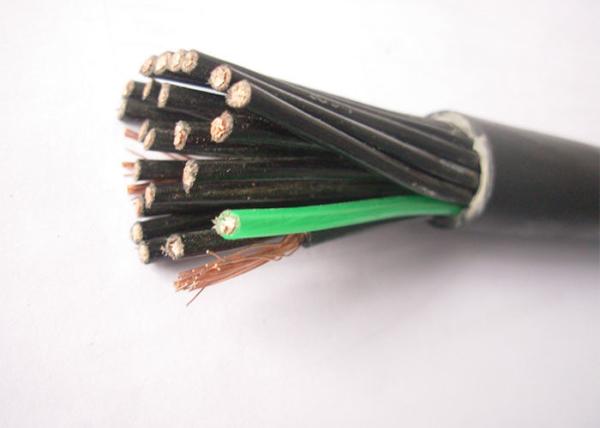

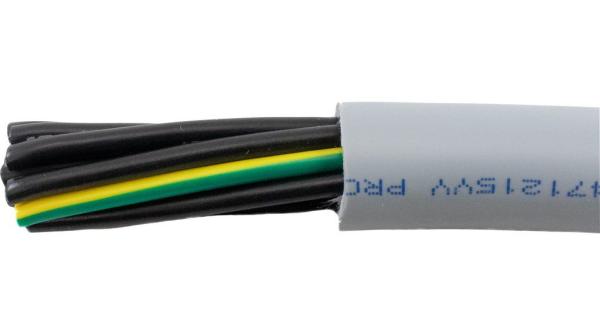

Product Image
450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007

Company Information:

OUR SERVICE 450/750V Multicore YY UnShielded Control Cable Flexible Conductor IEC 60227-2007

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
