Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
Specifications
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer's request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Description

Copper Conductor PVC Insulated and Sheathed Copper Wire Braided Shield Flexible Control Cable

► Application

450/750V XLPE / PVC Insulation Shielded and Armoured Control Cable is widely used for fixed wiring in control, monitoring and protection circuits of rated voltage 450/750V and below.


► Description

1) Conductor: solid / stranded copper

2) Insulation: PVC/XLPE

3) Screen: braided copper wire, copper tape or aluminum plastic composite tape

4) Armor: steel tape or steel wire

5) Sheath: PVC

6) Max. conductor DC resistance at 20°c:


► Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Other standards such as BS,DIN and ICEA upon request

►Technical Deta

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable

►Features

The highest working temperature of conductor is 70oC

The temperature fot laying cable should be not less than 0oC

The bending radius of the cable: unarmoured cable, should be not less than 8times of diameter; armoured or copper tape shield cable, should not be less than 12times of diameter

Copper Conductor PVC Insulated and Sheathed Copper Wire Braided Shield Flexible Control Cable
Size Structure Conductor Diameter (mm) Insulation Thickness(mm) Bedding Size(mm) Shield Size(mm) Sheath Thickness(mm) Reference O.D. (mm) Reference Weight(kg/km)
2×0.5 16/0.20 0.9 0.6 10×0.05 0.15 1.2 7.5 75.3
2×0.75 24/0.20 1.1 0.6 10×0.05 0.15 1.2 7.9 86.0
2×1.0 32/0.20 1.3 0.6 10×0.05 0.15 1.2 8.3 96.2
2×1.5 30/0.25 1.5 0.7 10×0.05 0.15 1.2 9.1 119.0
2×2.5 49/0.25 2.0 0.8 15×0.05 0.15 1.2 10.5 160.2
3×0.5 16/0.20 0.9 0.6 10×0.05 0.15 1.2 7.8 86.8
3×0.75 24/0.20 1.1 0.6 10×0.05 0.15 1.2 8.3 100.9
3×1.0 32/0.20 1.3 0.6 10×0.05 0.15 1.2 8.7 114.1
3×1.5 30/0.25 1.5 0.7 10×0.05 0.15 1.2 9.6 143.9
3×2.5 49/0.25 2.0 0.8 15×0.05 0.15 1.2 11.1 197.9
4×0.5 16/0.20 0.9 0.6 10×0.05 0.15 1.2 8.4 101.5
4×0.75 24/0.20 1.1 0.6 10×0.05 0.15 1.2 8.9 119.2
4×1.0 32/0.20 1.3 0.6 10×0.05 0.15 1.2 9.3 135.8
4×1.5 30/0.25 1.5 0.7 15×0.05 0.15 1.2 10.3 173.4
4×2.5 49/0.25 2.0 0.8 15×0.05 0.15 1.2 12.0 241.9
5×0.5 16/0.20 0.9 0.6 10×0.05 0.15 1.2 9.0 117.0
5×0.75 24/0.20 1.1 0.6 10×0.05 0.15 1.2 9.5 138.6
5×1.0 32/0.20 1.3 0.6 15×0.05 0.15 1.2 10.1 158.7
5×1.5 30/0.25 1.5 0.7 15×0.05 0.15 1.2 11.1 204.6
5×2.5 49/0.25 2.0 0.8 20×0.05 0.15 1.5 13.6 306.8
6×0.5 16/0.20 0.90 0.6 10×0.05 0.15 1.2 9.6 133.2
6×0.75 24/0.20 1.10 0.6 15×0.05 0.15 1.2 10.2 158.7
6×1.0 32/0.20 1.30 0.6 15×0.05 0.15 1.2 10.8 182.5
6×1.5 30/0.25 1.5 0.7 15×0.05 0.15 1.2 12.0 236.8
6×2.5 49/0.25 2.0 0.8 20×0.05 0.20 1.5 15.0 372.1
7×0.5 16/0.20 0.9 0.6 10×0.05 0.15 1.2 9.6 137.6
7×0.75 24/0.20 1.1 0.6 15×0.05 0.15 1.2 10.2 165.3
7×1.0 32/0.20 1.3 0.6 15×0.05 0.15 1.2 10.8 190.8
7×1.5 30/0.25 1.5 0.7 15×0.05 0.15 1.2 12.0 249.5
7×2.5 49/0.25 2.0 0.8 20×0.05 0.20 1.5 15.0 392.4

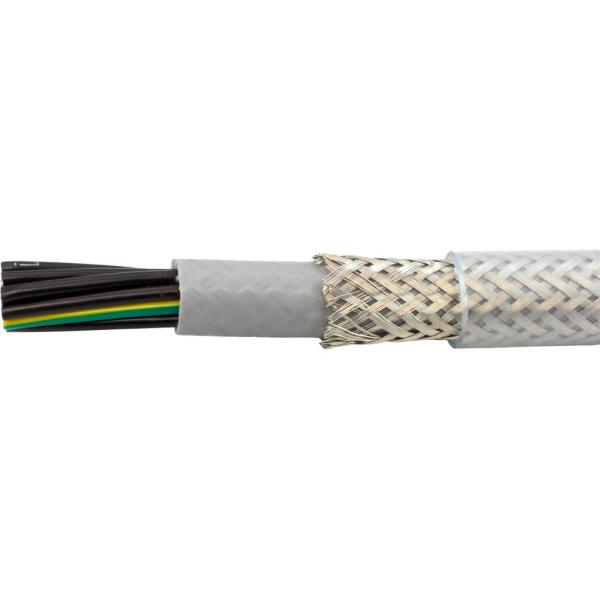

Construction

Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided 1. Conductor material: Copper Core
2. Jacket Material PVC
3.Insulation Material PVC
4.Jacket Colour Black
5.Insulation Colour Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request

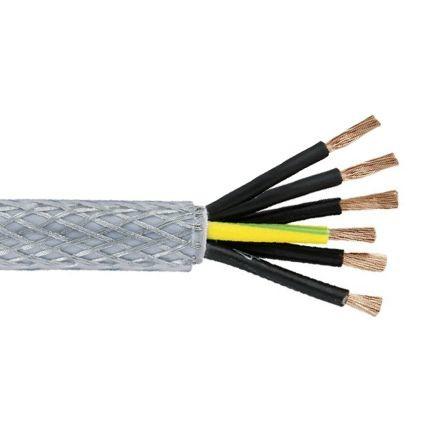

Product Image
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided

Company Information:

OUR SERVICE Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

  • Company established time: Since 1993
  • 26 years of cable manufacturing and sales​ experience
  • Annual sales of about 600 million US dollar
  • 150,000 m2 Production area
  • Over 1000 Will-trained employees
  • 4 industrial parks
  • Over 30 professional engineers R&D team


Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
